BEM-5031

Hydrogen Oxygen Fuel Cell Experiment Apparatus

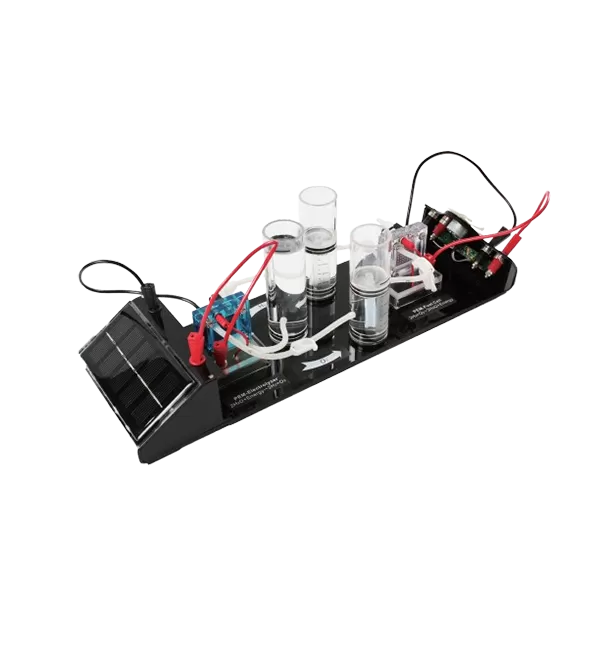

The BEM-5031 is an integrated energy system model designed for educational demonstrations. It illustrates the reaction of controlled amounts of hydrogen and oxygen over a specified duration, showcasing the full conversion cycle: Solar energy → Electrical energy → Chemical energy → Electrical energy. The system offers dual output modes (Drive Fan/Lighting LED) and supports optional PASCO sensors for digitized experiments and quantitative analysis of each module efficiencies.

Features of BEM-5031 Hydrogen Oxygen Fuel Cell Experiment Apparatus

Demonstrates complete energy conversion: solar → electrical → chemical → electrical.
Simultaneously collects hydrogen and oxygen gases.

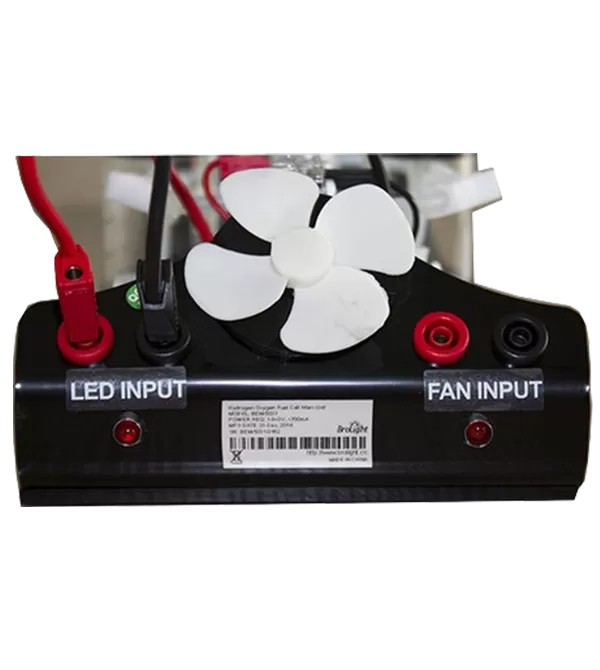

Dual output load options: Drive fan and Light LED.
Compatible with PASCO sensors for digitized experiments and quantitative efficiency analysis of Solar panels, Electrolysers, and Fuel cells.

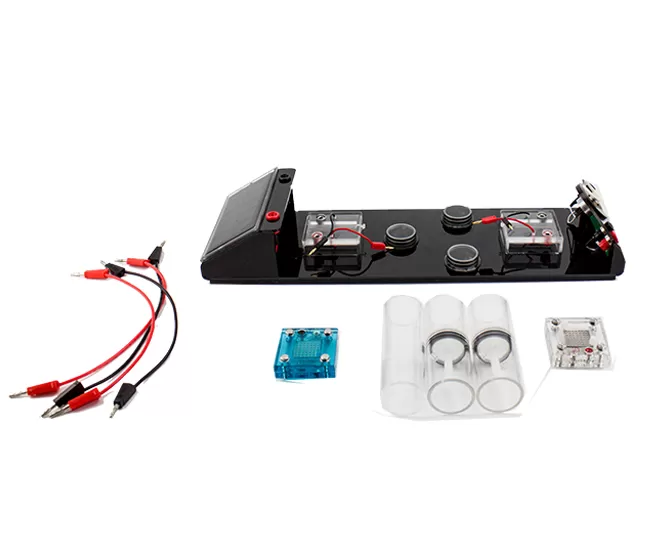

Applications of BEM-5031 Hydrogen Oxygen Fuel Cell Experiment Apparatus

Current-Voltage (I-V) and Power-Voltage (P-V) characteristics of solar cells.
Maximum power point output of solar panels.
Electrolyzer efficiency analysis.
Fuel cell reaction efficiency measurement.

Experimental Data & Curves

Solar Cell I-V and P-V Characteristics

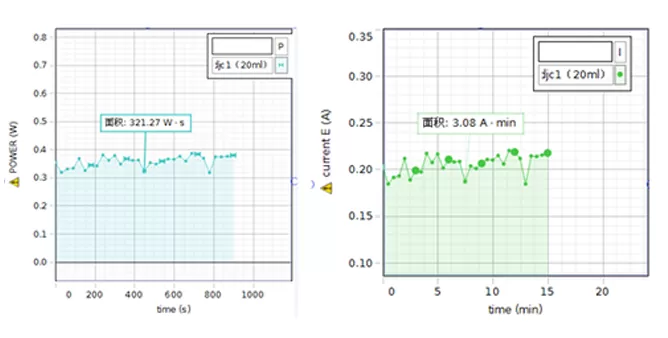

Electrolyzer Efficiency

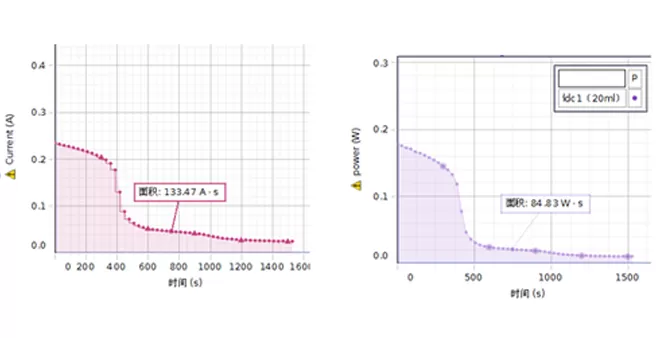

Fuel Cell Efficiency

Specifications of BEM-5031 Hydrogen Oxygen Fuel Cell Experiment Apparatus

#	Parts	Key Parameters
1	PEM Electrolyzer	Input Voltage: 1.5–3 V DC; Input Current: 700 mA
2	PEM Fuel Cell	Output Voltage: 0.6 V DC
3	Base (w/ Solar Panel & Load)	Solar Panel: 2.5 V, 300 mA Micro Motor: 0.5–1 V DC

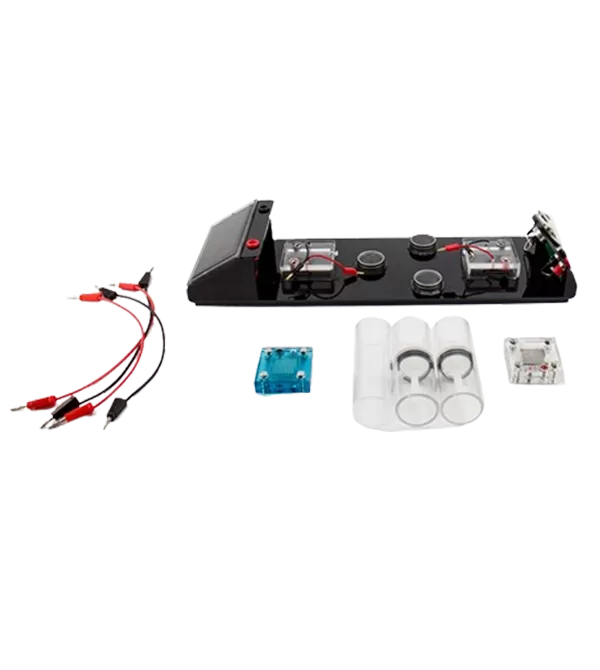

Configuration List

No.	Parts	Model	Qty.
1	PEM Electrolyzer	BC-201012	1
2	PEM Fuel Cell	BC-201013	1
3	Base (w/ Solar Panel & Load)	BC-201014	1

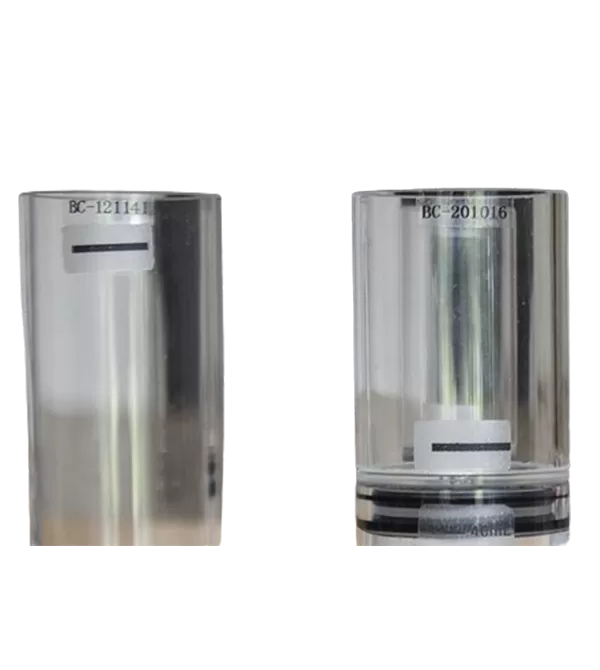

4	Water Reservoir Tube	BC-121141	1
5	H₂/O₂ Gas Storage Tubes	BC-201016	2
6	Fan Blade	BC-124058	1
7	Plastic Stopcock	BC-124055	8
8	Silicone Tubing (3 mm ID)	BC-124054	8
9	Connector Cable (Red, 4 mm)	BC-104085	2
10	Connector Cable (Black, 4 mm)	BC-104086	2

Recommended Options (Upgrade to Digital Experiments)

UI-5400 Capstone Software
PS-3211 Wireless Voltage Sensor
PS-3212 Wireless Current Sensor
PS-3500 USB Bluetooth Adapter
SEM-5406 Adjustable Arm Desk Lamp
