As one of today's most critical light sources, Light-Emitting Diodes (LEDs) are ubiquitous across industries—from automotive lighting and consumer electronics to horticulture and medical devices. Their rapid development has led to a vast array of colors, luminances, and form factors. However, the unique shape and characteristics of LED emitting surfaces make precise optical measurement a significant challenge. Accurate quantification of parameters like spectral power, chromaticity, and luminous flux is essential for quality control, performance validation, and R&D.
The unique shape of the LED light -emitting surface makes it difficult to homogenize the luminescence. The way by reducing light loss through the use of integrating spheres is suitable for most LED measurement applications. For optical radiation measurements, integrating sphere is a very important part. The inner surface of the integrating sphere has perfect scattering, and the light is uniformly reflected on its inner surface, resulting in the same degree of light exposure at any point on the wall. The combination of the integrating sphere and the spectrometer makes a stable measurement.

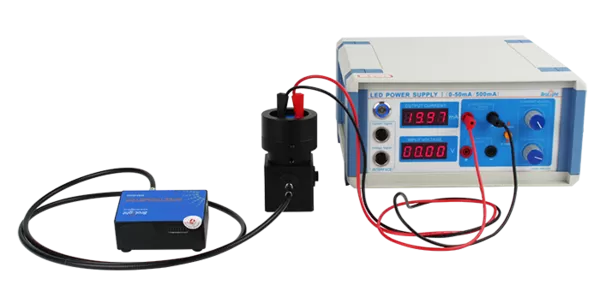

Brolight Customized LED Measurement System

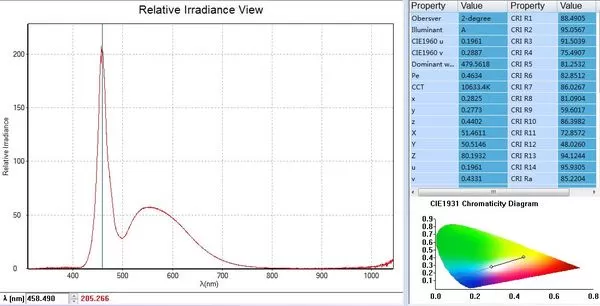

BSV software give out the LED performance, such as main wavelength, color coordinates, intensity, color temperature, power ect.
LED Chroma
The rapid development of the LED industry has led to a wide variety of LED products. Sorting and quality control (QC) require precise testing of wavelength and color parameters.
Brolight spectrometers, featuring a compact design, can be easily integrated into various automation systems. They utilize optical fibers for sampling and signal transmission, making system setup highly convenient. The BIM-6002A model, with its fast integration time of 0.5ms, is particularly advantageous for high-speed testing applications.
Related products:
Spectrometer | BIM-60/66 series spectrometer |
Software | BSV Software |
Standard light source | Tungsten light source |
Power supply | 0-50/500mA，0-10/1000mA (optional) |
Fiber | Quartz fiber( customization supported） |
Accessories | Integrating sphere for radiation LED holder |
*For color and relative irradiance measurement.

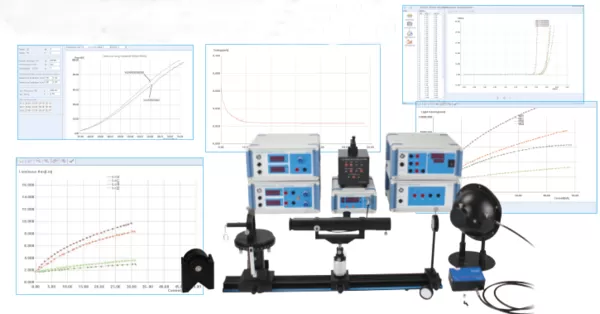

Related Product: BEX-8202A LED Comprehensive Characteristic Measurement
Brolight has also developed a set of LED training system for teaching, measuring LED's performance. It utilizes a voltage stabilizing power supply, constant current source, illuminance meter, integrating sphere, spectrometer, and temperature control box, all developed in collaboration with LED measurement experts. It meets teaching requirements while ensuring high functionality, accuracy, and reliability. The setup covers the light, electricity, color, and heat characteristics of LEDs through clear, independent modules. The software design adheres to international testing standards, making it easy to operate and enhancing theoretical learning.
