The wavelength of mercury light is an important parameter in spectroscopy, optical measurement, UV curing, calibration, and scientific research applications. Mercury lamps are widely used because mercury atoms produce strong and well-defined spectral emission lines, making them valuable as stable light sources for analytical instruments.
A typical mercury light source produces several characteristic wavelengths across the ultraviolet and visible regions. The most commonly used mercury emission lines include 253.7 nm in the UV region, 365 nm in the near ultraviolet range, and visible lines around 404.7 nm, 435.8 nm, 546.1 nm, and 577–579 nm.
Brolight provides professional optical light source solutions, including mercury light source products designed for spectroscopy, measurement systems, and laboratory applications.
What Is the Wavelength of Mercury Light? Spectrum Overview
The wavelength of mercury light refers to the specific electromagnetic wavelengths emitted by excited mercury atoms, which appear as characteristic spectral lines rather than a continuous spectrum.
Unlike broadband light sources, mercury lamps generate discrete emission peaks because mercury atoms release energy at specific transitions. These stable spectral lines make mercury lamps suitable for calibration and analytical applications.
The main mercury emission wavelengths include:
| Mercury Emission Line | Wavelength | Region | Common Applications |
|---|
| UV resonance line | 253.7 nm | Ultraviolet | UV disinfection, spectroscopy |
| Near UV line | 365 nm | UVA | UV curing, fluorescence analysis |
| Violet line | 404.7 nm | Visible | Optical calibration |
| Blue line | 435.8 nm | Visible | Spectroscopy and imaging |
| Green line | 546.1 nm | Visible | Instrument calibration |
| Yellow lines | 577–579 nm | Visible | Optical measurements |
According to the National Institute of Standards and Technology (NIST) Atomic Spectra Database, mercury has well-established atomic emission lines that are widely referenced in optical measurements and spectroscopy. The specific wavelength output depends on the mercury lamp type, including low-pressure mercury lamps, high-pressure mercury lamps, and mercury-based specialty light sources.
Mercury Lamp Spectrum: How Pressure Affects Emission Wavelengths
A mercury lamp spectrum describes the distribution of mercury emission wavelengths, which changes depending on the lamp pressure and operating conditions.
Low-pressure and high-pressure mercury lamps produce different spectral characteristics because mercury atoms behave differently under varying discharge conditions.
| Mercury Lamp Type | Main Characteristics | Typical Wavelength Applications |
|---|
| Low pressure mercury lamp | Strong UV emission, especially 253.7 nm | UV sterilization, photochemical processes |
| High pressure mercury lamp | Stronger visible emission and broader spectrum | Microscopy, spectroscopy, optical instruments |
| Mercury-based combined sources | Extended spectral output | Advanced research applications |
For example, Brolight’s low pressure mercury lamp solutions are designed for applications requiring strong ultraviolet emission, while high-performance systems may require broader mercury spectral output. The development of optical measurement technology has also increased demand for accurate spectral calibration. The National Institute of Standards and Technology (NIST) provides reference data supporting precise measurement and calibration across scientific applications.

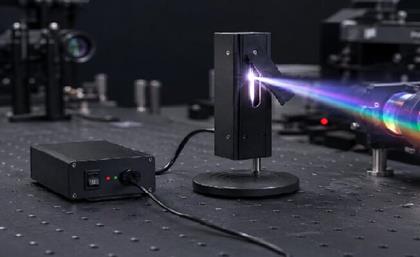

Mercury Light Source Applications in Optical and Scientific Systems
A mercury light source is commonly used in scientific instruments because its stable emission wavelengths provide reliable optical performance and measurement accuracy.
Mercury lamps are widely applied in:
In UV-visible spectroscopy, mercury emission lines can serve as reference wavelengths for checking instrument accuracy. For applications requiring precise spectral control, selecting the correct light source configuration is essential.
Brolight supplies optical solutions for different instrument requirements, including UV visible spectrometer light sources designed for analytical and measurement applications.
Mercury Light Source vs Other Optical Light Sources
Mercury light sources differ from other optical lamps because they provide strong characteristic emission peaks, while alternative sources may offer broader or different spectral distributions.
| Light Source | Spectrum Feature | Typical Applications |
|---|
| Mercury lamp | Strong discrete emission lines | Calibration, spectroscopy, UV applications |
| Deuterium lamp | Strong UV continuous spectrum | UV spectroscopy |
| Xenon lamp | Broad continuous spectrum | Solar simulation, fluorescence, imaging |
| Tungsten halogen lamp | Visible and near infrared output | Visible spectroscopy |
The choice of light source depends on the required wavelength range, intensity stability, and application requirements. For example, mercury lamps are preferred when researchers need specific wavelength peaks, while xenon or deuterium lamps may be selected for broader spectral coverage.
How to Select the Right Mercury Light Source?
Selecting a mercury light source requires evaluating wavelength requirements, optical output, lamp type, and application environment.
Before choosing a mercury lamp, users should consider:
Required emission wavelength
UV or visible spectral range
Optical power requirements
Operating lifetime
Compatibility with the instrument system
For applications requiring specific mercury emission lines, a professional light source supplier can help match lamp characteristics with instrument requirements.
Brolight provides customized optical solutions and supports different scientific applications through reliable mercury, xenon, and deuterium light source technologies.
Conclusion
The wavelength of mercury light is defined by the characteristic emission lines produced by excited mercury atoms. Important mercury wavelengths include 253.7 nm, 365 nm, 404.7 nm, 435.8 nm, 546.1 nm, and 577–579 nm, making mercury lamps valuable for spectroscopy, calibration, UV applications, and scientific instruments.
Choosing the correct mercury light source depends on the required spectral range, application purpose, and system compatibility. With professional optical engineering experience, Brolight provides reliable mercury light source solutions for researchers, instrument manufacturers, and industrial applications.
FAQ
What is the main wavelength of mercury light?
The most commonly used mercury emission wavelength is 253.7 nm in the ultraviolet region, while other important lines include 365 nm, 435.8 nm, and 546.1 nm.
Why does mercury light have specific wavelengths?
Mercury atoms emit light at specific wavelengths because electrons release energy during transitions between different atomic energy levels.
What is the wavelength range of a mercury lamp?
A mercury lamp can produce wavelengths from ultraviolet to visible regions, commonly ranging from approximately 200 nm to 600 nm depending on lamp type.
What is the difference between low-pressure and high-pressure mercury lamps?
Low-pressure mercury lamps mainly produce strong UV emission, especially around 253.7 nm, while high-pressure mercury lamps provide stronger visible output and broader spectral characteristics.
Are mercury lamps used in spectroscopy?
Yes. Mercury lamps are commonly used in spectroscopy and optical calibration because their emission lines provide stable reference wavelengths.
Does Brolight provide mercury light source solutions?
Yes. Brolight provides mercury light sources, UV-visible optical solutions, and customized lamp products for scientific instruments and industrial applications.
