BEX-8602
New Energy Experiment

Featuring a modular design, this system enables students to assemble components such as gas storage tubes and electrolysis modules independently, enhancing hands-on skills. It integrates fuel cells and solar cells to form a complete energy conversion chain. Equipped with multiple load modules and convenient data acquisition interfaces, it supports real-time data analysis, ensuring an environmentally friendly and efficient experimental process.

Contact Us

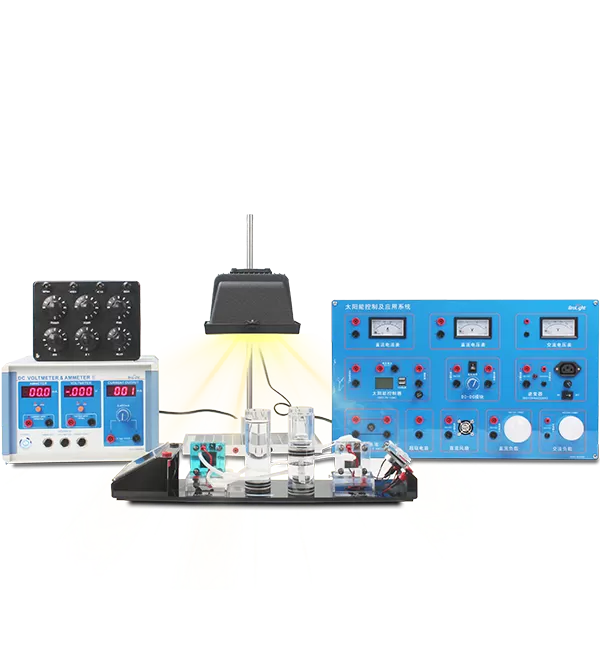

science lab equipment china supplier

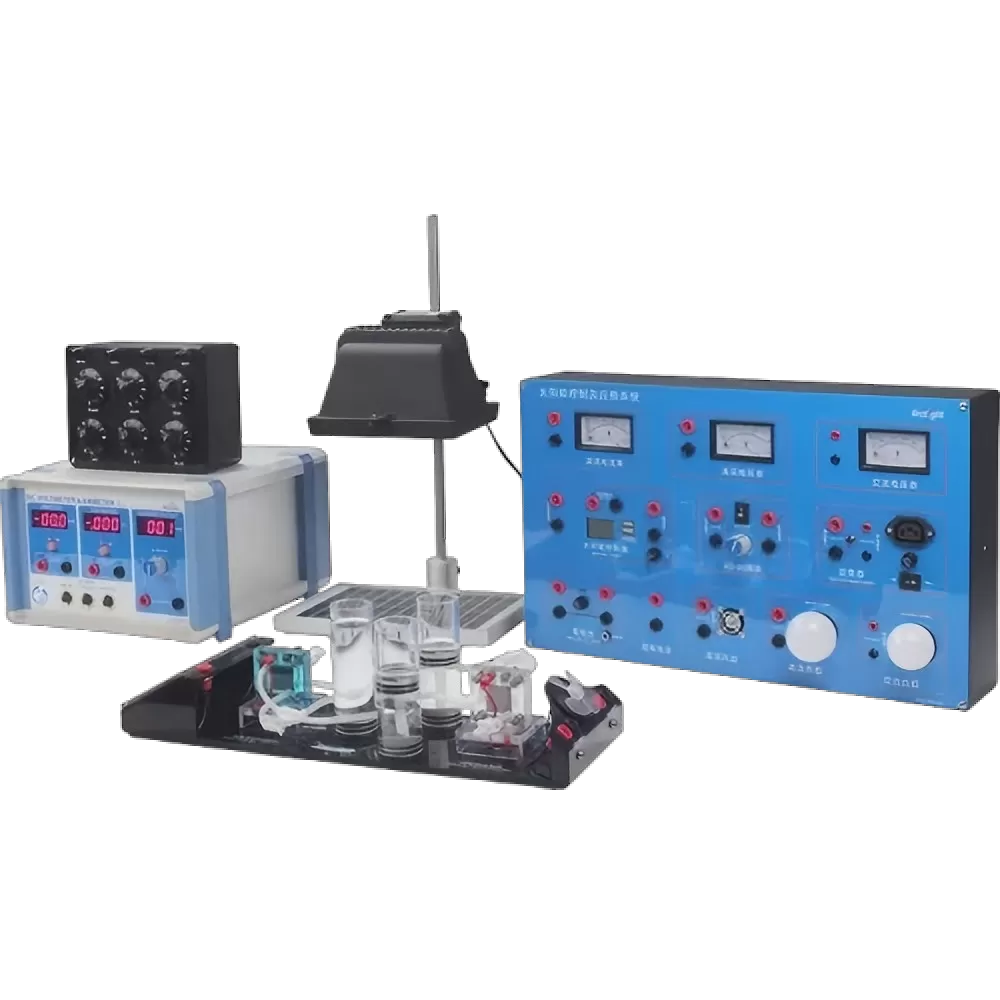

science lab equipment china
equipment used in physics laboratory manufacturer
equipment used in physics laboratory supplier
science lab equipment china supplier
science lab equipment china
equipment used in physics laboratory manufacturer
equipment used in physics laboratory supplier

Features of BEX-8602 New Energy Experiment

  • Modular design allows students to assemble gas storage tubes, electrolysis modules, fuel cell modules, and other components, fostering experimental setup skills and practical ability.

  • Incorporates multiple energy conversion stages, combining fuel cells and solar cells organically to form a complete chain of energy conversion, storage, and utilization.

  • Diverse solar cell load modules: offers comprehensive and eco-friendly experimental content.

  • Convenient data acquisition interfaces: the power supply includes 3 analog data ports for connecting voltage sensors and PASCO data acquisition software, enabling real-time data collection and efficient analysis.

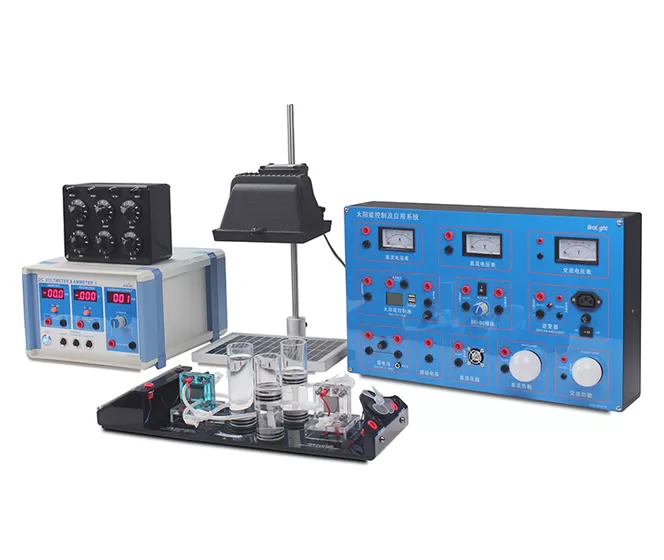

Applications of BEX-8602 New Energy Experiment

  1. Current-Voltage (I-V) and Power-Voltage (P-V) characteristics of solar cells.

  2. Output characteristics of hydrogen-oxygen fuel cells.

  3. Charging characteristics of supercapacitor.

Applications of BEX-8602 New Energy Experiment

Experiments and Typical Data

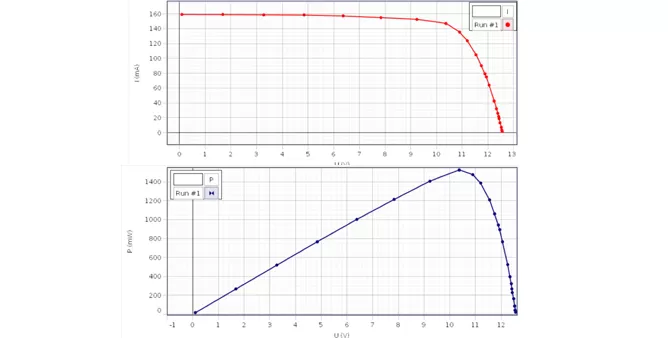

Solar Cell Output Characteristics: I-V and P-V Curves
Solar Cell Output Characteristics: I-V and P-V Curves
Hydrogen-Oxygen Fuel Cell Output Characteristics
Hydrogen-Oxygen Fuel Cell Output Characteristics

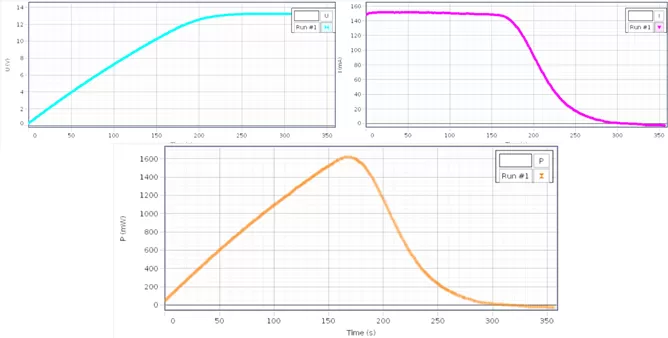

Supercapacitor Charging Characteristics
Supercapacitor Charging Characteristics

Specifications of BEX-8602 New Energy Experiment

No.

Parts

Key Parameters

1

H₂-O₂ Fuel Cell Unit

Dual output modes: Drive fan and Light LED (with blinking function);

Dual O-ring seals for reliable gas/water storage

2

Solar Control & Application Unit

DC Voltmeter: 0-30.0V;

DC Ammeter: 0-1.0A;

AC Voltmeter: 0-250V;

Solar Controller: DC12V/10A

3

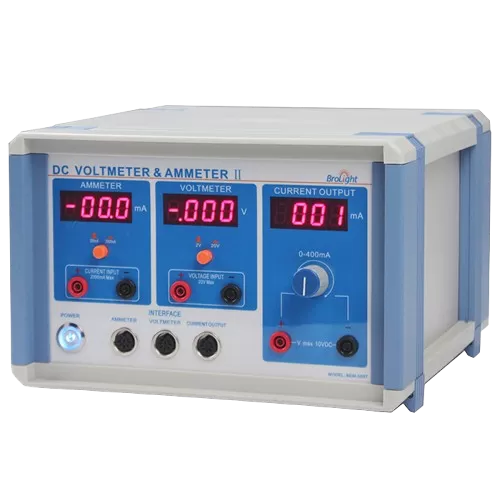

DC Voltmeter/Ammeter II

DC Voltage Ranges: 0-20V / 0-2V (Manual Switching)

DC Current Ranges: 0-200.0mA / 0-2000mA (Manual Switching)

Adjustable Constant Current Source: 0-400mA

4

Solar Panel

Rated voltage: 12V

5

Halogen Lamp & Stand

150W

6

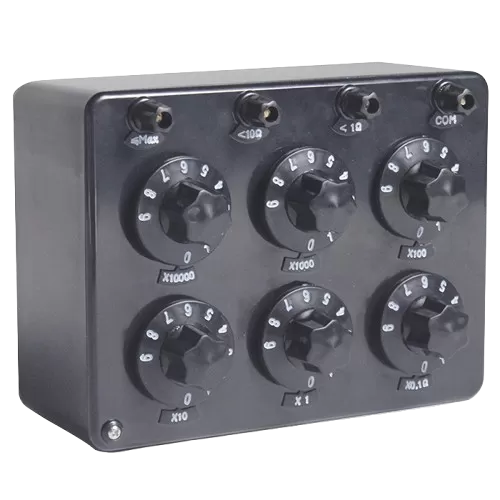

DC Resistance Box

6 ranges, 0-99999.9Ω

Configuration List

No.

Parts

Model

Qty.

1

H₂-O₂ Fuel Cell Unit

BEM-5031

1

2

Solar Control & Application Unit

BEM-5735

1

3

DC Voltmeter/Ammeter II

BEM-5057

1

4

Solar Panel

BC-105263

1

5

Halogen Lamp & Stand

BEM-5743

1

6

DC Resistance Box

ZX-21

1

7

2mm Banana Plug Cable (Red)

BC-104087

1

8

2mm Banana Plug Cable (Black)

BC-104088

1

9

4mm Banana Plug Cable (Red)

BC-105084

5

10

4mm Banana Plug Cable (Black)

BC-105083

5

11

4mm Banana to Spade (Red)

BC-105292

1

12

4mm Banana to Spade (Black)

BC-105293

1

13

Power Cord

BC-105075

1

14

8-pin Interface Cable

BC-105077

2

Recommended Options

  • UI-5400 Capstone Data Acquisition Software

  • UI-5000 850 Universal Interface

  • PS-3211 Wireless Voltage Sensor
