BIM-6001A Series

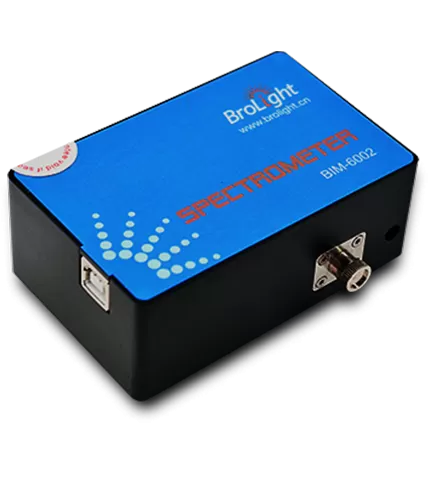

Miniature Spectrometer

The BIM-6001A Miniature spectrometer adopts a compact optical-mechanical platform, with dimensions as small as a business card, making it easy handling. Its optimized optical design enables an optical resolution of up to 0.35nm.

Features of BIM-6001A Series Miniature Spectrometer

Compact business-card size for easy handling
Crossed asymmetric C-T optical path design
Interference filter eliminates secondary diffraction
SMA905 fiber connector for convenient optical setup
Optional wavelength range & optical resolution
USB 2.0 for data transfer and power supply
Support RS232 communication
Multiple trigger modes
Powerful software capabilities, Automated calculation of peak wavelength & bandwidth
SDK provided for secondary development
Mounting holes on bottom & side for easy system integration

Applications of BIM-6001A Series Miniature Spectrometer

Emission & absorption spectrum measurement
Transmittance & absorbance testing
LED characterization and analysis
Solar energy spectrum testing
Fluorescence detection
Color measurement
Laser spectrum analysis systems

Typical Spectrum

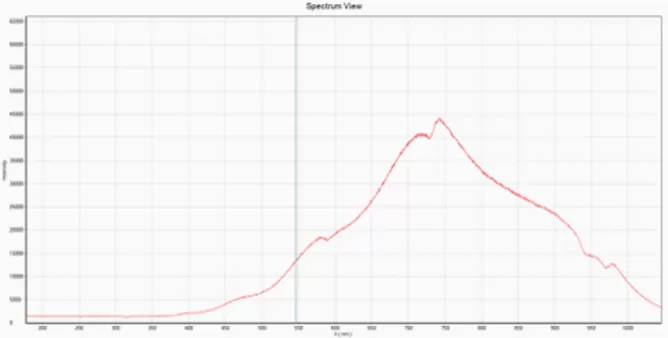

Mercury (Hg) Lamp Spectrum

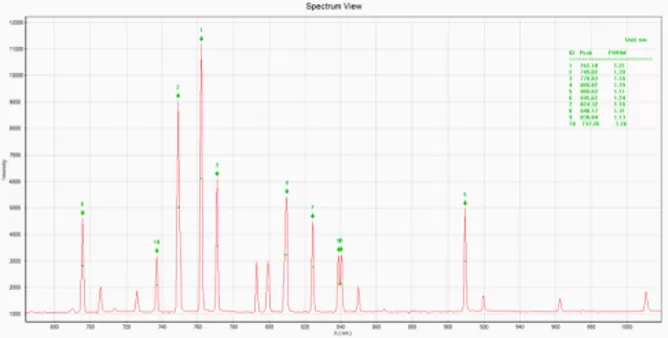

Tungsten Halogen Lamp Spectrum

Specifications of BIM-6001A Series Miniature Spectrometer

Model	BIM-6001A Series
Wavelength Range	315nm-1100nm optional	Trigger Mode	Normal Mode, Software, Hardware, Synchronization Trigger
Resolution	Optimal ~0.35nm	Power Consumption	250mA, 5VDC
Fiber Connector	SMA905	Operating Temperature	5℃-35℃(25℃ recommended)
Detector Type	TCD1304, 3648 liner CCD	Communication Interface	USB2.0(12Mbps) RS232(115200bps)
Detector Pixel	3648 pixel, each pixel 8μm×200μm	Operation System	WinXP, Win7, Win8, Win10
Signal to noise ratio	300:01:00	Mounting Holes	4×M3 Threaded Holes at bottom, 2×M3 at side
A/D Resolution	16 bit	Power Supply	USB
Integrating Time	4ms -10s	Dimension	94 mm×60 mm×34.5 mm
Dynamic Range	300:01:00	Weight	0.3 Kg

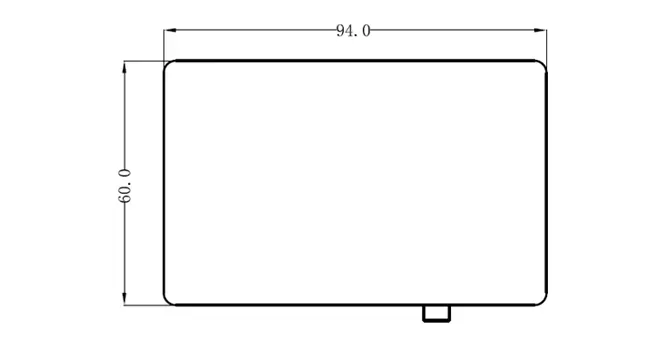

Outline Dimensions

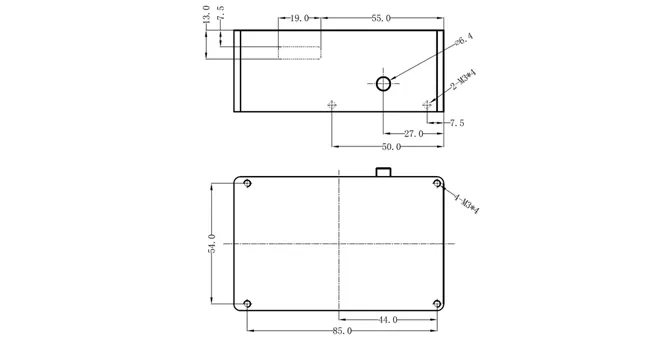

Mounting Hole Configuration

Order Info

Model	Wavelength Range	Resolution
BIM-6001A-02	400 - 1100 nm	～1 nm
BIM-6001A-03	350 - 700 nm	～0.6 nm
BIM-6001A-04	350 - 583 nm	～0.4 nm
BIM-6001A-05	750 - 1100 nm	～0.6 nm
	750 - 1100 nm	～0.6 nm
	750 - 1100 nm	～1 nm
BIM-6001A-06	350 - 1050 nm	～1 nm
BIM-6001A-06	350 - 1050 nm	～1 nm
BIM-6001A-07	315-1015 nm	～1 nm
	315-1015 nm	～1 nm
	315 - 1000 nm	～1 nm
	315 - 1000 nm	～1 nm
BIM-6001A-08	380 - 730 nm	～0.5 nm
BIM-6001A-09	600 - 950 nm	～0.5 nm
BIM-6001A-10	820 - 1040 nm	～0.4 nm

Configuration List

#	Part description	Qty.
1	spectrometer	1
2	USB cable	1
3	Calibration Report (QRCode for download of Software & Manual）	1
4	Packing box	1

Optional

BIM-6210 Air-Cooled Halogen-Tungsten Light Source

SIM-6102 Straight-Through Quartz Double-Clad Fiber, 200nm-1100nm

Software Download

BSV spectrum software



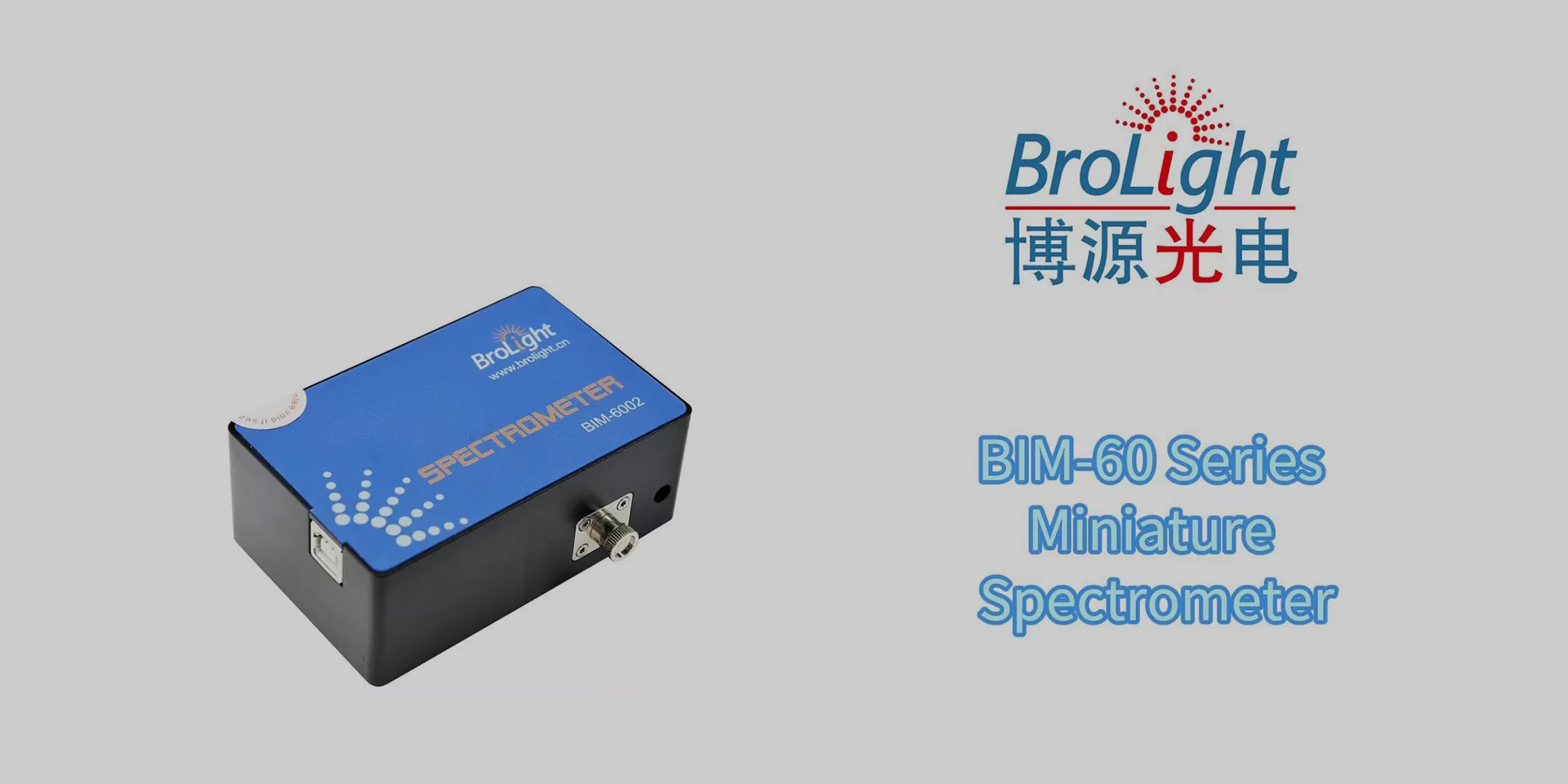

Video of BIM-6001A Series Miniature Spectrometer
