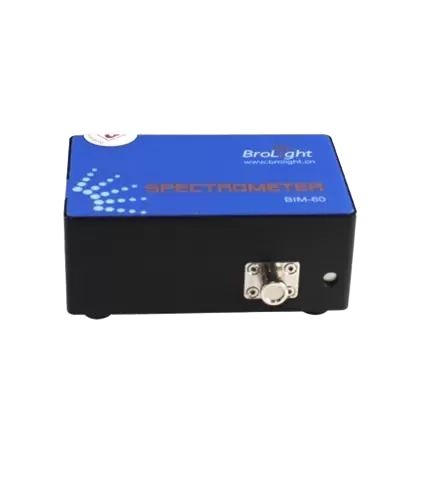

BIM-6002A/6002S Series

Miniature Spectrometer

180nm-1100nm optional

Optimal ~0.35nm

SMA905

Hamamatsu S11639 Linear CMOS Array (2048-Pixel)

2048pixel，each pixel 14μm×200μm

600:1

16 bit

0.5ms -65 s

10000:1

Normal Mode,Software,Hardware,Synchronization Trigger

250mA,5VDC

5℃-35℃(25℃ recommended)

USB2.0(12Mbps)

RS232(115200bps)

Win XP,Win7,Win8,Win10

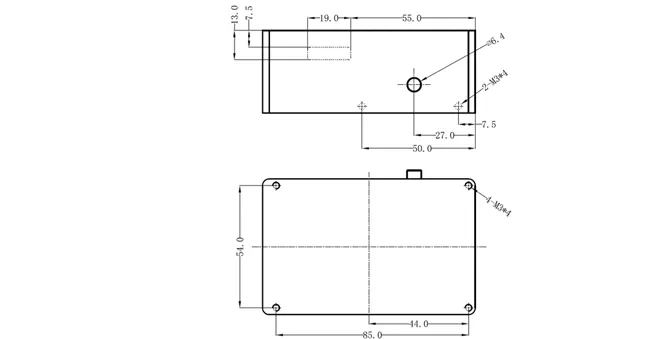

4 × M3 Threaded Holes at bottom, 4 × M3 at side

USB

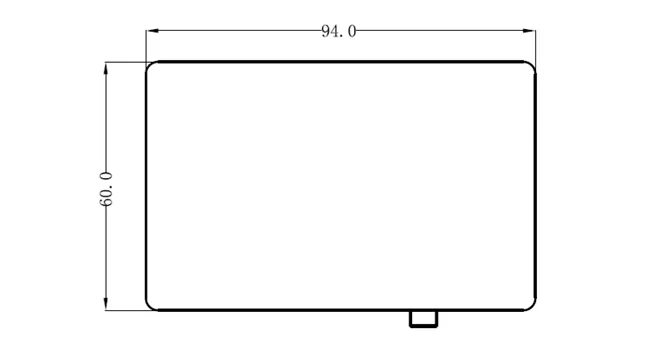

94 mm×60 mm×34.5 mm

0.3 Kg

BIM-6002A-01-S03L00F06G01

200-900 nm

～1 nm

BIM-6002A-01-S03L02F06G01

～1 nm

BIM-6002A-01-S04L00F06G01

～2 nm

BIM-6002A-01-S04L02F06G01

～2 nm

BIM-6002A-01-S04L02F06G17

～2 nm

BIM-6002A-01-S04L02F06G02

BIM-6002A-01-S05L02F06G01

～5 nm

BIM-6002A-02-S03L00F00G03

200-550 nm

～0.6 nm

BIM-6002A-03-S03L00F00G06

200-433 nm

～0.4 nm

BIM-6002A-04-S02L00F08G05

750-1100 nm

～0.5 nm

BIM-6002A-04-S04L01F08G05

～1 nm

BIM-6002A-04-S03L01F08G05

～0.6 nm

BIM-6002A-05-S03L00F05G02

350-1000 nm

～1 nm

BIM-6002A-05-S03L01F05G02

～1 nm

BIM-6002A-05-S04L00F05G02

～2 nm

BIM-6002A-05-S04L01F05G02

～2 nm

BIM-6002A-05-S04L01F05G18

～2 nm

BIM-6002A-05-S05L01F05G02

～5 nm

BIM-6002A-05-S05L01F05G18

～5 nm

BIM-6002A-06-S03L00F00G04

260-493 nm

～0.4 nm

BIM-6002A-07-S03L00F00G03

500-850 nm

～0.6 nm

BIM-6002A-08-S03L00F00G06

180-413 nm

～0.4 nm

BIM-6002A-08-S04L00F00G06

～0.7 nm

BIM-6002A-08-S05L00F00G06

～1.4 nm

BIM-6002A-09-S03L00F00G07

180-530 nm

～0.6 nm

BIM-6002A-10-S03L00F06G02

300-1000 nm

～1 nm

BIM-6002A-10-S03L02F06G02

BIM-6002A-10-S04L02F06G01

300-1000 nm

～2 nm

BIM-6002A-11-S03L00F06G13

200-1000 nm

～1.8 nm

BIM-6002A-11-S03L02F06G13

BIM-6002A-11-S04L02F06G16

～4 nm

BIM-6002A-12-S03L00F00G03

350-700 nm

～0.6 nm

BIM-6002A-12-S04L00F00G03

～1 nm

BIM-6002A-13-S03L00F05G02

400-1100 nm

～1 nm

BIM-6002A-13-S03L01F05G02

BIM-6002A-13-S04L01F05G02

～2 nm

BIM-6002A-14-S03L01F08G15

650-1000 nm

～0.6 nm

BIM-6002A-15-S03L00F00G03

300-650 nm

～0.6 nm

BIM-6002A-16-S03L00F08G05

700-1050 nm

～0.6 nm

BIM-6002A-17-S04L02F06G01

260-960 nm

～2 nm

BIM-6002A-18-S03L02F06G16

300-1100 nm

～1.8 nm

BIM-6002A-18-S05L02F06G16

300-1100 nm

～6 nm

BIM-6002A-19-S07L01F00G20

450-800 nm

～4 nm

BIM-6002A-20-S04L01F05G31

535-760 nm

～0.7 nm

BIM-6002A-20-S03L01F05G31

～0.4 nm

BIM-6002A-21-S03L00F05G19

400-850 nm

～0.8 nm

BIM-6002A-24-S03L00F00G20

430-780 nm

～0.6 nm

BIM-6002A-25-S03L02F06G17

180-880 nm

～1 nm

BIM-6002A-26-S01L00F00G03

380-730 nm

～0.4 nm

BIM-6002A-27-S02L00F00G31

460-683 nm

～0.3 nm

BIM-6002A-27-S03L00F00G31

～0.4 nm

BIM-6002A-28-S03L00F00G20

330-680 nm

～0.6 nm
