Name: High-Intensity Tungsten Light Source
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BIM-6208

High-Intensity Tungsten Light Source

The BIM-6208 represents a high-intensity tungsten illumination Light Source with spectral coverage spanning the visible to near-infrared spectral range. The Light Source used a gold-coated reflector assembly as standard configuration, achieving superior radiant flux conversion efficiency.

Features of BIM-6208 High-intensity Tungsten Light Source

Radiant Power Output: ≥ 50W maximum
Optical Power Stability: ≤ 0.5% (typical)
Control Interface: Supports remote power modulation via external control signals
Output: Compatible with both fiber-coupled and free-space beam delivery
Maintenance: Lamp replacement mechanism for enhanced serviceability

Applications of BIM-6208 High-intensity Tungsten Light Source

Photochemical experiment
Photoelectric device characteristic test
Research on solar cells
Biological illumination and catalysis
Absorption and fluorescence spectrum test

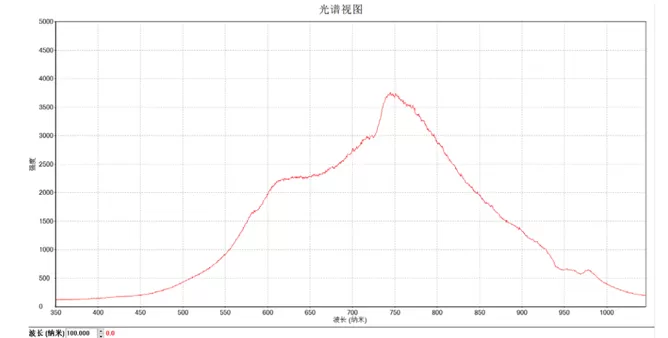

Typical Spectrum

Typical Spectrum of BIM-6208 High-intensity Tungsten Light Source

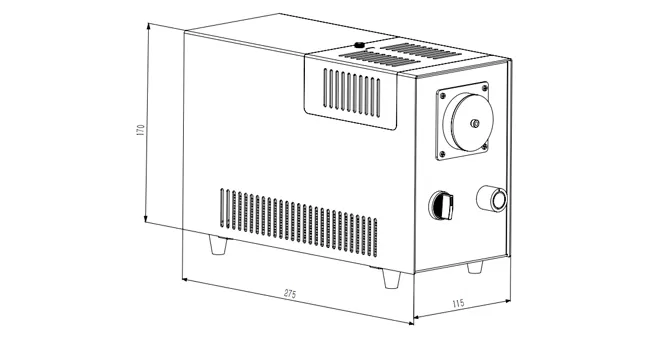

Dimensions (mm）

Dimensions of BIM-6208 High-intensity Tungsten Light Source

Specifications of BIM-6208 High-intensity Tungsten Light Source

Model	BIM - 6208
Wavelength Range	300 - 2500nm
Lamp Power	150 W
Max Radiation Power	≥ 50W
External Remote Control	Analog signal control 0V - 10V PWM signal control 0V/10V (L/H)
External Remote Control
Power Stability	≤ 0.5%
Average Lifetime	500h
Input Voltage	200 - 240VAC
Dimensions	275×115×170 mm

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
