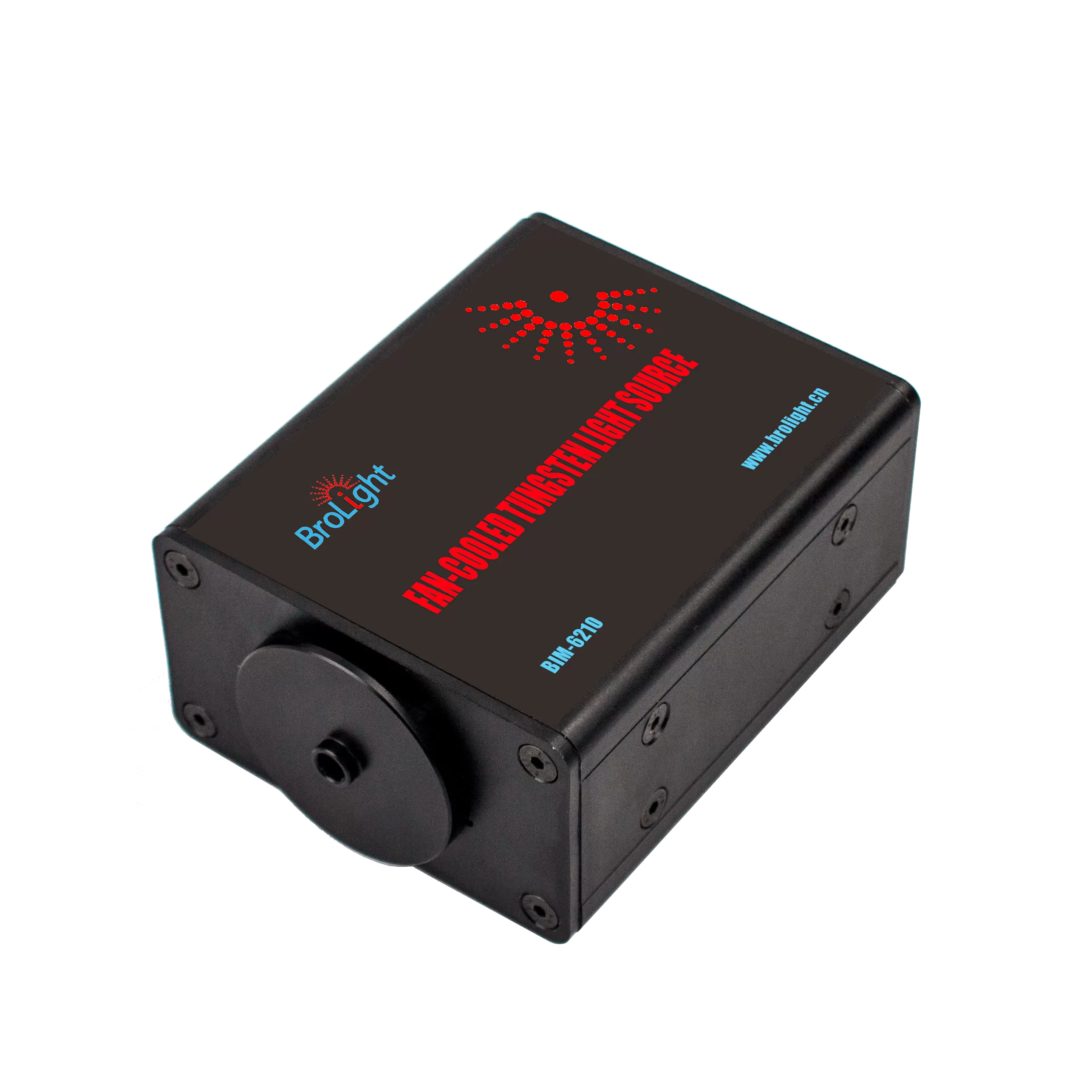

Fan Cooling Tungsten Light Source

BIM-6210
Fan Cooling Tungsten Light Source

The BIM-6210 is an fan-cooling tungsten light source with built-in voltage stabilization, delivering highly stable spectral output for visible to near-infrared (VIS-NIR) absorption and reflectance spectroscopy applications.
By inserting different optical filters into the filter slot, users can obtain various monochromatic light outputs. The system also offers expandable configurations with optional accessories—including transmittance modules, reflectance modules, and integrating spheres—enabling a complete spectral analysis solution when combined with a spectrometer.

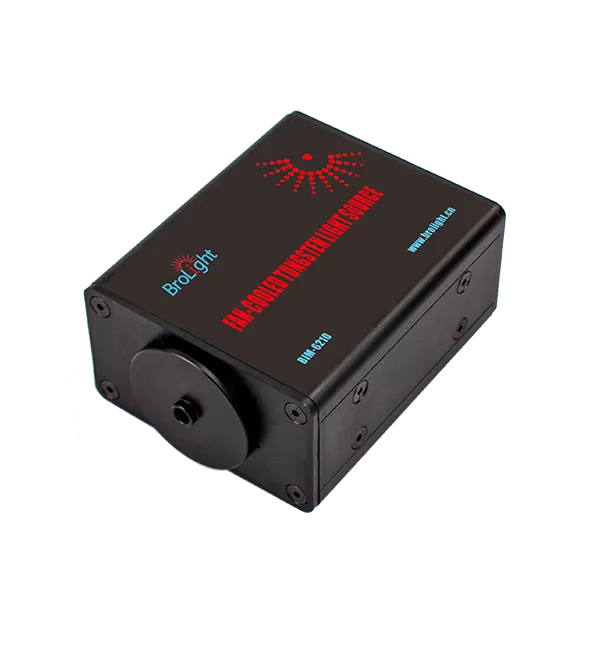

tungsten light source china suppliers

Features of BIM-6210 Fan Cooling Tungsten Light Source

  • Fan-cooling with built-in voltage regulation for stable spectral output

  • Slot-in design for easy loading of filters or attenuators

  • Removable SMA905 fiber connector for flexible connectivity

  • Compatible with various accessories, enabling expandable configurations for transmittance, absorbance, and reflectance spectroscopy

Applications of BIM-6210 Fan Cooling Tungsten Light Source

  • Standard light source for spectral analysis, including material transmittance, absorbance, and reflectance measurements

  • Versatile integration with spectrometers for optical characterization in research and industrial applications

Applications of BIM-6210 Fan Cooling Tungsten Light Source

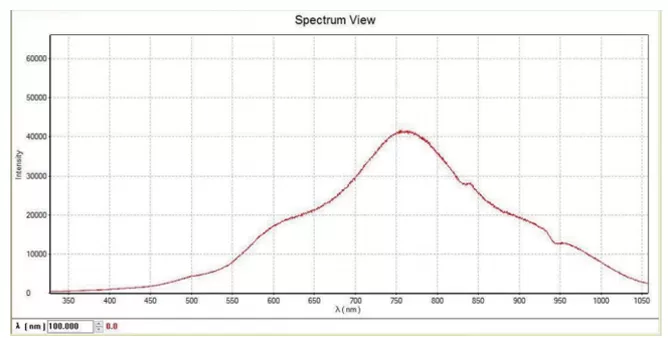

Typical Spectrum

Typical Spectrum of BIM-6210 Fan Cooling Tungsten Light Source
Typical Spectrum of BIM-6210 Fan Cooling Tungsten Light Source

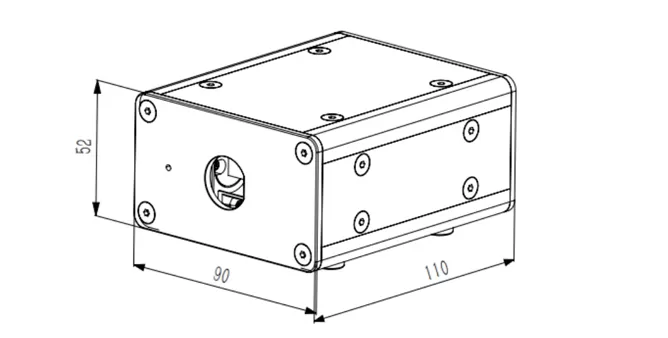

Dimensions (mm)

Dimensions of BIM-6210 Fan Cooling Tungsten Light Source
Dimensions of BIM-6210 Fan Cooling Tungsten Light Source

Specifications of BIM-6210 Fan Cooling Tungsten Light Source

ModelBIM - 6210
Wavelength Range400 nm - 2000 nm
Ideal Spectrum Range500 nm - 900 nm
Lamp10W, 2000hours (typical)
Power Supply15VDC, 2A
CoolingFan
Size110mm×90mm×52.5mm


What's included

#Part DescriptionModelQty.
1Fan Cooling Tungsten Light SourceBIM-62101
2Power adapter, 15VDC, 2ABC-1052111
