Wavelength Calibration Hg Light Source

BIM-6212
Wavelength Calibration Hg Light Source

The BIM-6212 is a wavelength calibration light source designed for the calibration purpose in UV, visible (VIS), and near-infrared (NIR) spectral regions (253–912 nm). The housing features an easily identifiable printed mercury (Hg) emission line spectrum for quick reference.
This light source is ideal for spectrometer wavelength calibration and optical resolution verification. It operates on a 12 VDC power supply and connects via an SMA905 fiber optic for light transmission.

Contact Us Download
mercury light source bulk

Features of BIM-6212 Wavelength Calibration Hg Light Source

  • High-stability mercury (Hg) emission spectrum for precise wavelength calibration

  • Sharp, well-defined spectral lines across UV-Vis-NIR ranges

  • Long lifespan and low drift for reliable performance

  • Compact design for easy integration into optical systems


Applications of BIM-6212 Wavelength Calibration Hg Light Source

  • Spectrometer and monochromator wavelength calibration

  • Validation of optical instrument accuracy

  • UV-Vis-NIR spectroscopy reference standards

Applications of BIM-6212 Wavelength Calibration Hg Light Source

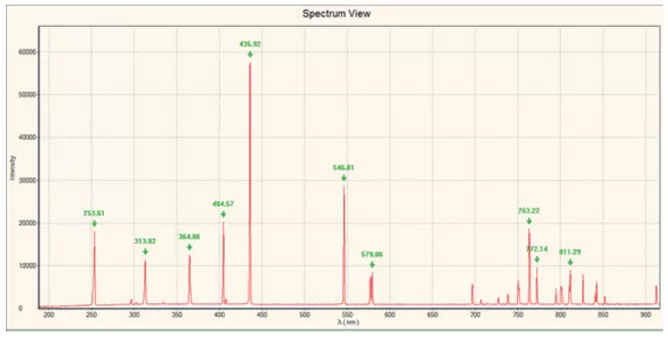

Typical Spectrum

Typical Spectrum of BIM-6212 Spectrum with BIM-6002A-01
Typical Spectrum of BIM-6212 Spectrum with BIM-6002A-01

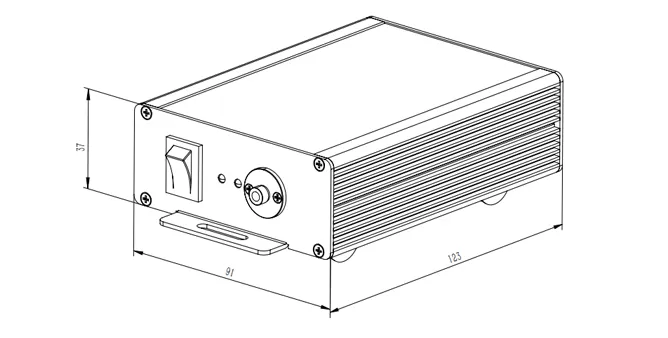

Dimensions (mm）

Dimensions of BIM-6212 Wavelength Calibration Hg Light Source
Dimensions of BIM-6212 Wavelength Calibration Hg Light Source

Specifications of BIM-6212 Wavelength Calibration Hg Light Source

ModelBIM-6212
Wavelength Range253 nm-912 nm
Fiber ConnectorSMA905
Power3W
Power Supply12V/1A
LampMercury lamp
Lamp Lifetime2000 hours (typical value)
Size91×37×120mm


What's included

#Part DescriptionModelQty.
1Wavelength Calibration Hg Light SourceBIM-62121
2Power adapter, 12VDC, 1ABC-1051501
