Mini Deuterium Tungsten Light Source

BIM-6213
Mini Deuterium Tungsten Light Source

BIM-6213 is a miniature Deuterium and tungsten halogen light source that covers the 200-1100nm range (UV-VIS-NIR). The light source combines the Deuterium Spectrum with the Tungsten spectrum to form a single optical path. Both the deuterium lamp and the halogen tungsten lamp can be turned on or off independently and are equipped with a shutter control. The BIM-6213 features a small size, making it ideal for space-constrained applications.

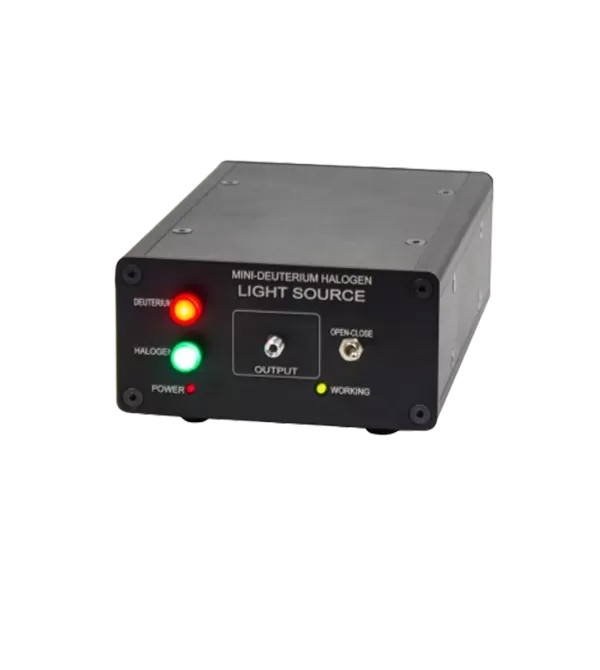

deuterium light source china

Features of BIM-6213 Mini Deuterium Tungsten Light Source

  • Compact structural design, ideal for space-constrained applications

  • Broad spectral range: 200–1100 nm

  • Independent on/off control for deuterium and tungsten lamps

  • Built-in shutter with TTL control

Applications of BIM-6213 Mini Deuterium Tungsten Light Source

  • Reference light source for transmittance, absorbance, and reflectance measurements

  • Provides stable UV-Vis-NIR irradiance

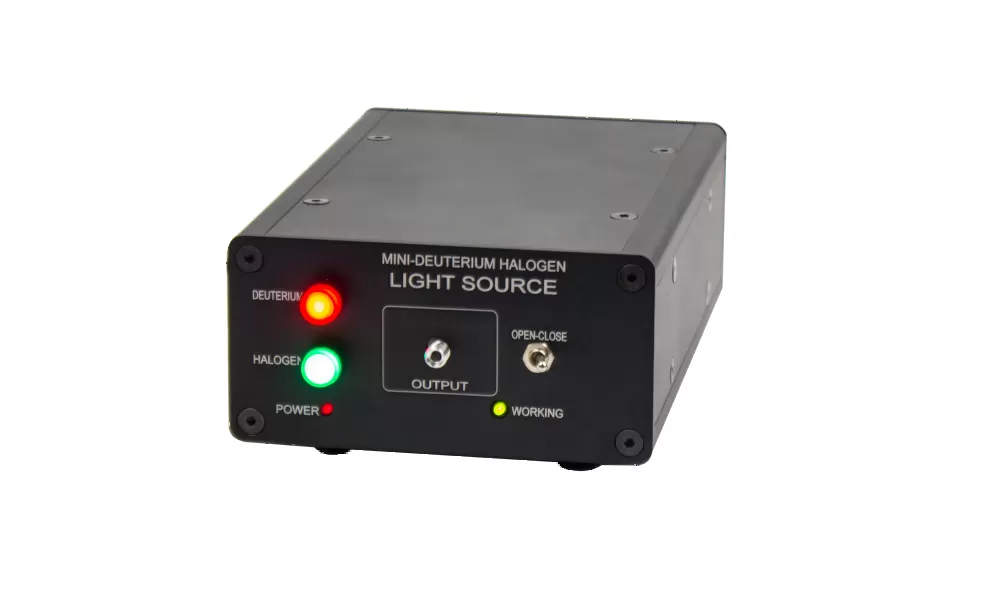

Applications of BIM-6213 Mini Deuterium Tungsten Light Source

Typical Spectrum

Measured by 200-900nm spectrometer
Measured by 200-900nm spectrometer

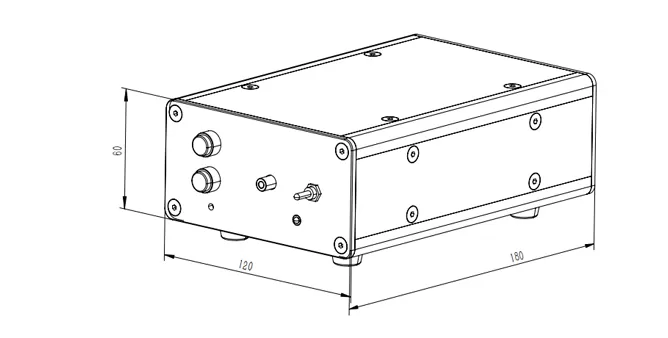

Dimensions (mm)

Dimensions of BIM-6213 Mini Deuterium Tungsten Light Source
Dimensions of BIM-6213 Mini Deuterium Tungsten Light Source

Specifications of BIM-6213 Mini Deuterium Tungsten Light Source

ModelBIM-6213
Wavelength Range200 nm-1100 nm
Power Consumption6W
Power Supply12VDC, 0.6A
ShutterBuilt-in
External ControlON/OFF independently
Shutter open/close
Fiber ConnectorSMA905
Deuterium LampWavelength range: 200nm-400nm
Lifetime: ≥1000h
Tungsten lampWavelength range: 400nm-1100nm
Lifetime: ≥2000h
Size180*120*60mm
