Name: Low-Pressure Hg Light Source
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BIM-6250

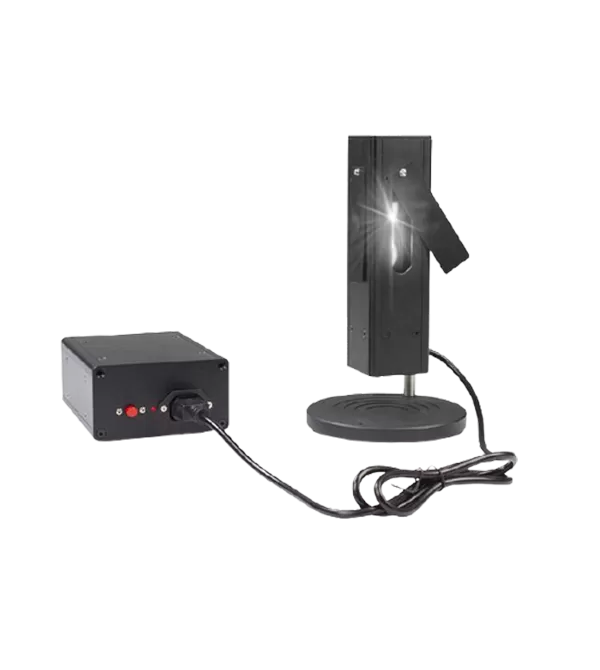

Low-Pressure Hg Light Source

The low-pressure mercury lamp, as a traditional standard light source, is known for its reliable and stable operation. It emits line spectra at specific wavelengths, making it suitable for wavelength calibration in instruments such as monochromators and spectrophotometers. The "mercury triplet" of the mercury lamp can be used to check the resolution of monochromators or serve as a line-spectrum light source in other applications.

Features of BIM-6250 Low-pressure Hg Light Source

Flexible and adjustable lamp shade
Easy bulb installation and replacement
Stable light emission
Distinctive characteristic wavelengths

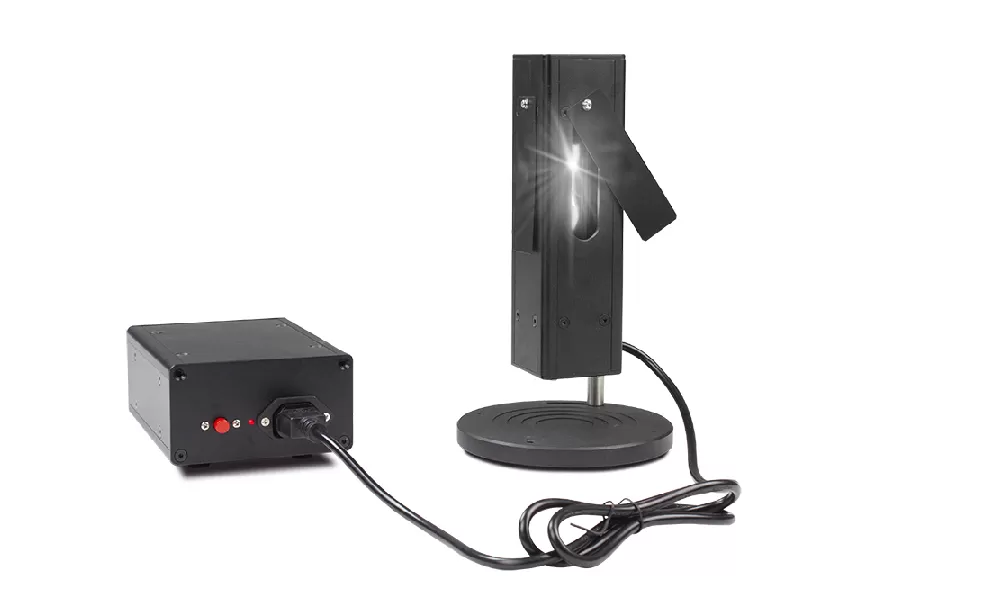

Applications of BIM-6250 Low-pressure Hg Light Source

Wavelength calibration: For spectrophotometers, monochromators, and other spectral instruments.
Optical testing light source: Suitable for interferometers, refractometers, and precision optical measurements.
Optical resolution verification

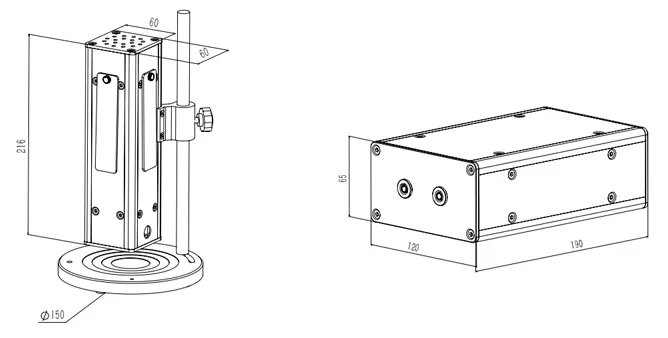

Dimensions (mm）

Dimensions of BIM-6250 Low-pressure Hg Light Source

Specifications of BIM-6250 Low-pressure Hg Light Source

Model	BIM-6250
Characteristic spectrum	404.7 nm, 435.8 nm, 546.1 nm, 577.0 nm, 579.0 nm
Optical Coupling Mode	Free-space light output
Output Power	20W
Power Supply	220 VAC
Lamp Type	mercury lamp
Replacement Method	Designed for easy user replacement
Hg Lamp Lifetime	~200 hours
Light Source Housing Size	60x60x216mm
Base Size	Φ150mm
Power supply size	190x120x65mm

What's included

#	Part Description	Model	Qty.
1	Low-pressure Hg Light Source	BIM-6250	1
2	Power cord	BC-105075	1

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
