Name: Low-Pressure Sodium Lamp Light Source
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BIM-6251

Low-Pressure Sodium Lamp Light Source

Low-pressure sodium (LPS) lamp, a traditional standard light source, is known for its reliability and stability. It emits a distinct line spectrum at specific wavelengths, making it suitable for wavelength calibration in instruments such as monochromators and spectrophotometers. The sodium doublet (D-line) is particularly useful for checking monochromator resolution and other applications requiring line spectrum sources.

Features of BIM-6251 Low-Pressure Sodium Lamp Light Source

Flexible and adjustable lamp shade
Easy bulb installation and replacement
Stable light emission
Distinctive characteristic wavelengths

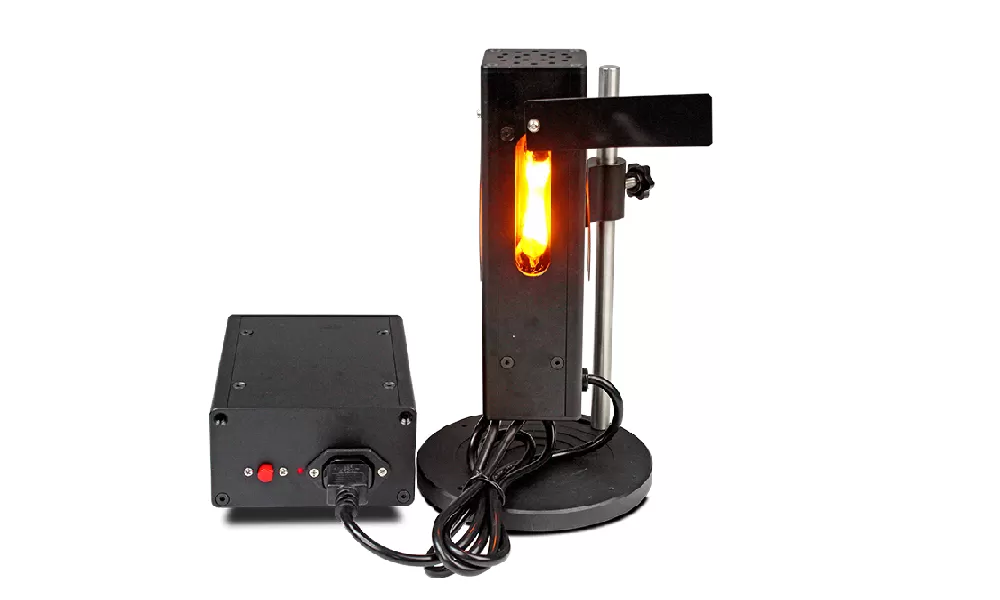

Applications of BIM-6251 Low-Pressure Sodium Lamp Light Source

Wavelength calibration: For spectrophotometers, monochromators, and other spectral instruments.
Optical testing light source: Suitable for interferometers, refractometers, and precision optical measurements.
Optical resolution verification

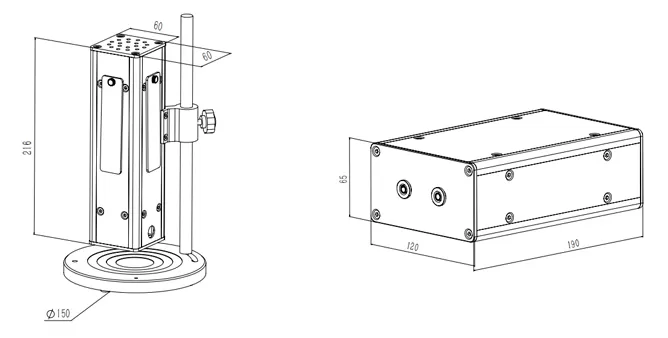

Dimensions (mm）

Dimensions of BIM-6251 Low-Pressure Sodium Lamp Light Source）

Specifications of BIM-6251 Low-Pressure Sodium Lamp Light Source

Model	BIM-6251
Characteristic spectrum	589nm, 589.6nm
Optical Coupling Mode	Free-space light output
Output Power	20W
Power Supply	220 VAC
Lamp Type	Sodium lamp
Replacement Method	Designed for easy replacement
Sodium Lamp Lifetime	200 hours
Light Source Housing Size	6060216mm
Base Size	Φ150mm
Power supply size	190x120x65mm

What's included

#	Part Description	Model	Qty.
1	Low-pressure Sodium Light Source	BIM-6251	1
2	Power cord	BC-105075	1

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
