Name: High-Pressure Hydrogen Lamp Source
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BIM-6252

High-Pressure Hydrogen Lamp Source

This lamp features a cold-cathode structure, consisting of a pair of nickel electrodes sealed within a hard glass envelope. When energized with high voltage, it emits characteristic hydrogen spectral lines, covering the ultraviolet to visible light range (190–400 nm). Key emission peaks include 656.279 nm (Hα, red), 486.133 nm (Hβ, cyan), 434.047 nm (Hγ, violet), and 410.174 nm (Hδ, near-UV).

Features of BIM-6252 High-pressure Hydrogen Lamp Source

Adjustable Lamp Housing – Flexible positioning for optimal light alignment.
Tool-Free Bulb Replacement – Easy installation and maintenance.
Stable Light Output – Consistent intensity with minimal fluctuation.
Pronounced Characteristic Peaks – Strong emission at key hydrogen wavelengths (656.3/486.1/434.0/410.2 nm).

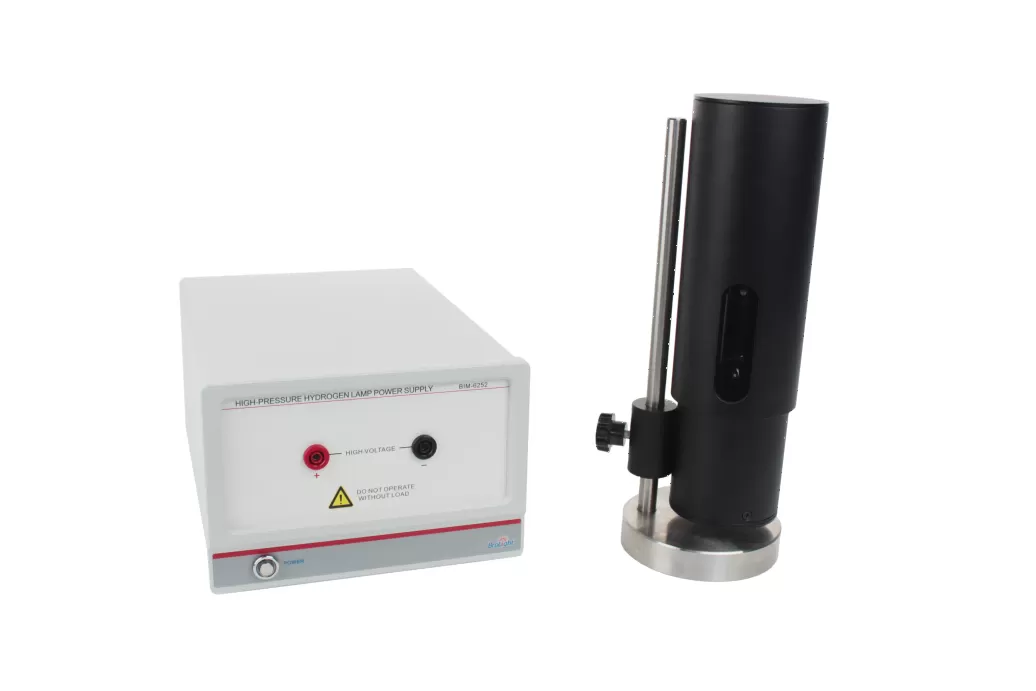

Applications of BIM-6252 High-pressure Hydrogen Lamp Source

Wavelength calibration: For spectrophotometers, monochromators, and other spectral instruments.
Optical testing light source: Suitable for interferometers, refractometers, and precision optical measurements.
Optical resolution verification

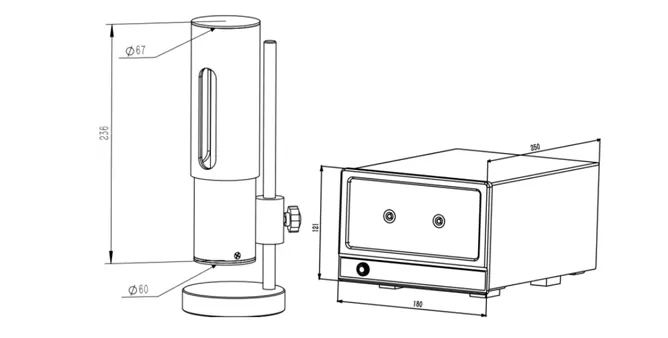

Dimensions (mm）

Dimensions of BIM-6252 High-pressure Hydrogen Lamp Source

Specifications of BIM-6252 High-pressure Hydrogen Lamp Source

Model	BIM-6252
Characteristic spectrum	410.174nm, 434.047nm, 486.133nm, 656.279nm
Optical Coupling Mode	Free-space light output
Output Power	10W
Power Supply	220 VAC
Lamp Type	Hydrogen lamp
Hydrogen Lamp Lifetime	~200 hours
Light source housing Size	Φ67mm*241mm
Power supply Size	250x180x121mm

What's included

#	Part Description	Model	Qty.
1	High-pressure Hydrogen Light Source	BIM-6252	1
2	Power cable	BC-105075	1

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
