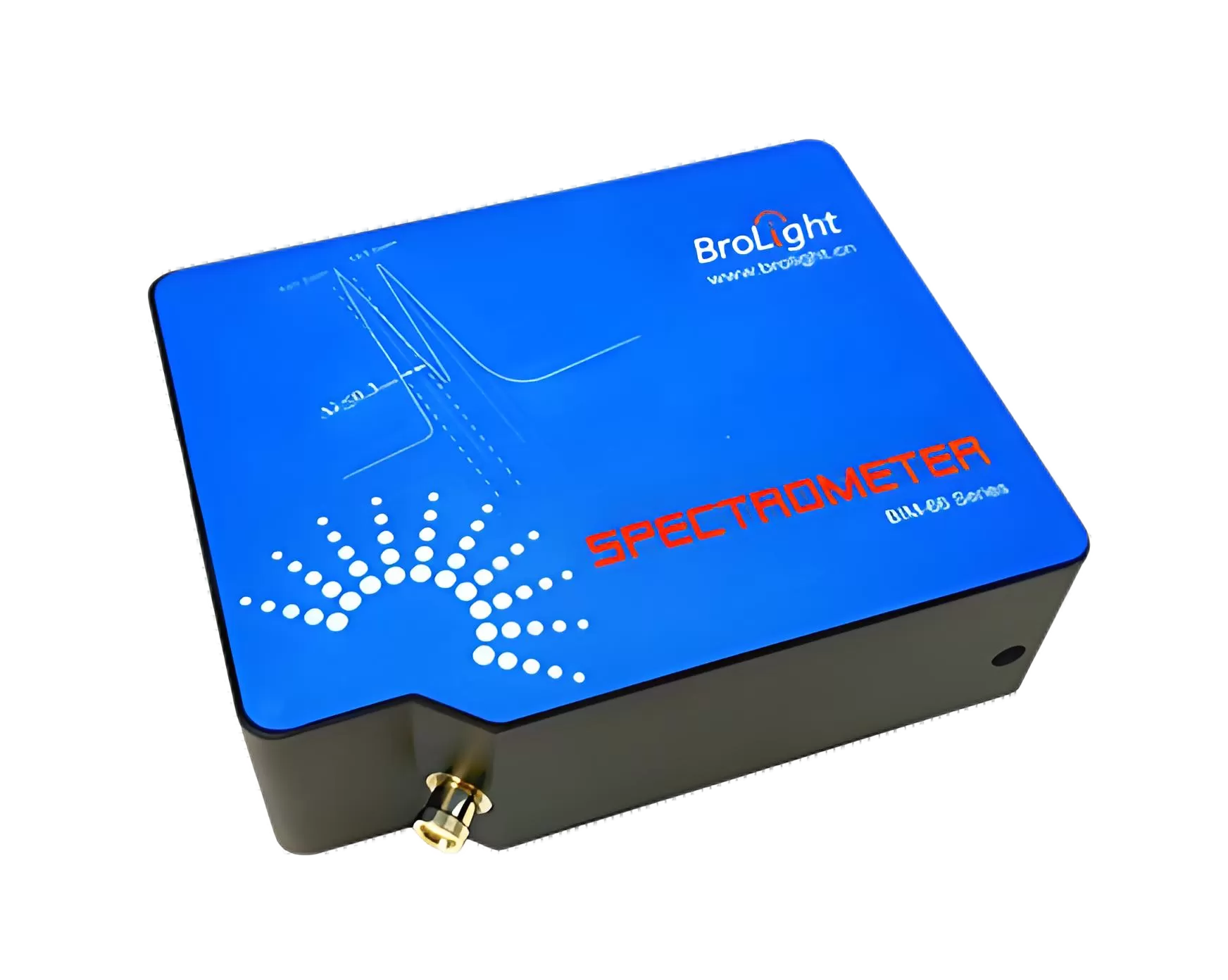

BIM-6602A Series

High Resolution Spectrometer

180nm-1100nm optional

Optimal~0.08nm

SMA905

Hamamatsu S11639 linear CMOS

2048 pixel，each pixel 14μm×200μm

600:1

16 bit

0.5ms-65s

10000:1

Normal Mode,Software,Hardware,Synchronization Trigger

250mA,5VDC

5℃-35℃(25℃ recommended)

USB2.0(12Mbps)

RS232(115200bps)

Win XP,Win7,Win8,Win10

>99%

USB

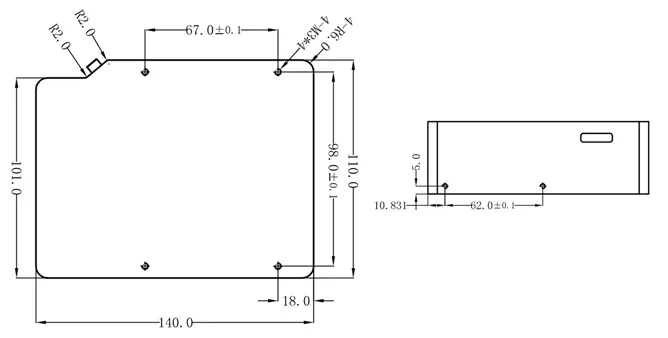

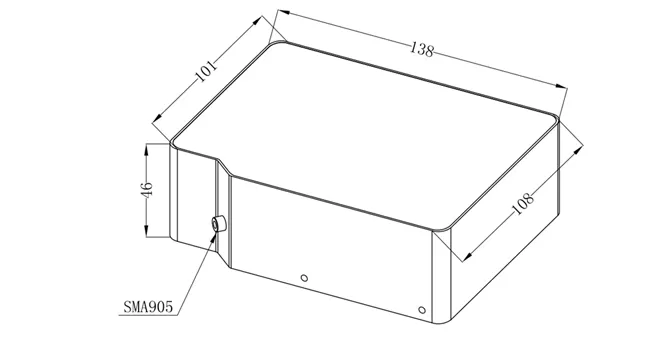

140mmx110mmx46mm

0.7 Kg

1

1

1

1

BIM-6602A-01-S03L00F00G14

200-420 nm

～0.3 nm

BIM-6602A-02-S01L00F06G11

200-1000 nm

～0.8 nm

BIM-6602A-03-S02L00F05G12

380-900 nm

～0.8 nm

BIM-6602A-04-S02L00F00G23

305-595 nm

～0.3 nm

BIM-6602A-05-S02L00F08G08

900-1000 nm

～0.15 nm

BIM-6602A-05-S02L00F00G08

900-1000 nm

～0.15 nm

BIM-6602A-05-S02L01F08G08

900-1000 nm

～0.15 nm

BIM-6602A-05-S03L01F08G08

900-1000 nm

～0.3 nm

BIM-6602A-06-S01L00F00G26

600-1100 nm

～0.6 nm

BIM-6602A-06-S01L00F08G26

600-1100 nm

～0.6 nm

BIM-6602A-07-S02L00F05G25

330-770 nm

～0.7 nm

BIM-6602A-08-S02L00F00G10

500-720 nm

～0.2 nm

BIM-6602A-08-S02L00F05G10

500-720 nm

～0.2 nm

BIM-6602A-09-S01L01F00G27

800-1000 nm

～0.1 nm

BIM-6602A-09-S01L01F08G27

800-1000 nm

～0.1 nm

BIM-6602A-10-S02L00F00G08

250-400 nm

～0.15 nm

BIM-6602A-11-S02L00F00G10

390-610 nm

～0.2 nm

BIM-6602A-12-S01L00F06G11

300-1100 nm

～0.8 nm

BIM-6602A-13-S02L00F05G12

340-850 nm

～0.8 nm

BIM-6602A-14-S01L01F08G08

795-905 nm

～0.1 nm

BIM-6602A-15-S02L01F08G08

1005-1080 nm

～0.15 nm

BIM-6602A-16-S02L00F08G08

750-870 nm

～0.15 nm

BIM-6602A-17-S02L00F00G30

250-350 nm

～0.1 nm

BIM-6602A-18-S02L00F00G30

350-450 nm

～0.1 nm

BIM-6602A-18-S01L02F00G30

350-450 nm

～0.08 nm

BIM-6602A-19-S01L01F08G30

660-734 nm

～0.08 nm

BIM-6602A-20-S03L00F00G14

180-400 nm

～0.3 nm

BIM-6602A-21-S02L00F08G08

580-715 nm

～0.15 nm

BIM-6602A-22-S02L00F10G08

510-650 nm

～0.15 nm

BIM-6602A-23-S02L00F06G25

250-650 nm

～0.7 nm
