Calibration with NIST-traceable light source
Multi-band UV measurement capability
Integrated cosine correction
Modular design for flexible configuration
Software compatible with Win XP, Windows 7, Windows 8, Windows 10
USB 2.0 data transmission and power supply, supporting RS232 communication
UV standard detection and measurement

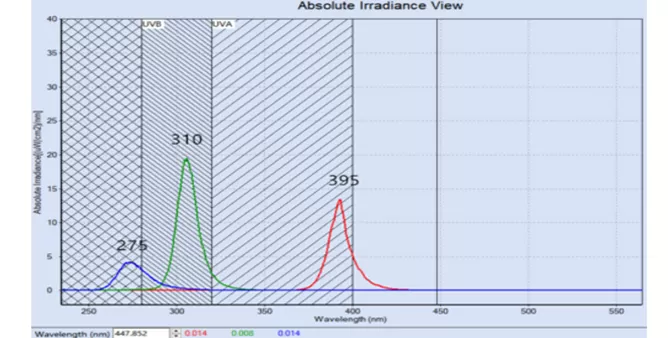

LED optical radiation safety measurement
Plant growth/PAR/plant photobiology
Characterization of UV curing systems
Light stability measurement
Spectral reflectance/absorbance/transmittance measurement
Fluorescence measurement
| Model | BIX-8805-01 | BIX-8805-02 | BIX-8805-03 |
| Spectral Range | 200-1100nm | 200-900nm | 400-1100nm |
| Resolution | 2nm | 1nm | |
| Integrating Time | 0.5ms-10s | ||
| SNR | 600:01:00 | ||
| Communication Mode | USB 2.0 | ||
| Optical Diffuser | PTFE | ||
| Host Size | 94 × 60 × 36.5mm | ||
| Probe Size | Φ 6.4 × 115 mm | ||
| Radiation Calibration | Radiation calibration through NIST traceable standard light source | ||
| Measurable Parameters | Spectral distribution graph | ||
| irradiance of UVA, UVB, UVC | |||
| custom-defined band range of the irradiance, radiation intensity and radiation flux | |||
