Reflectance Measurement System

BIX-8811
Reflectance Measurement System

Reflectance is a fundamental optical property of materials and a key parameter in spectral measurements. Different sample types primarily exhibit two reflection modes: specular reflection and diffuse reflection. Specular reflection occurs on perfectly smooth surfaces, while diffuse reflection dominates on rough or textured surfaces. Most real-world materials exhibit mixed reflection characteristics. Reflectance measurements serve multiple purposes, including determining the reflectivity of optical components, analyzing surface color properties, and identifying the chemical composition of samples.

reflectance measurement system supplier
reflectance measurement system china
reflectance measurement system supplier
reflectance measurement system china

Features of BIX-8811 Reflectance Measurement System

  • Easy Sample Handling - Minimal fixture requirements for versatile sample placement

  • User-Friendly Operation - Simple protocols with excellent repeatability and rapid detection

  • Comprehensive Spectral Data - Full-spectrum reflectance values and curves for complete analysis

  • Advanced Color Measurement - Integrated sphere sampling for precise material color characterization

Applications of BIX-8811 Reflectance Measurement System

  • Specular Reflectance Measurement - For polished surfaces and mirror-like materials

  • Diffuse Reflectance Analysis - Ideal for rough/textured surfaces and coatings

  • Precision Color Characterization - Accurate color measurement of materials and finishes

Applications of BIX-8811 Reflectance Measurement System

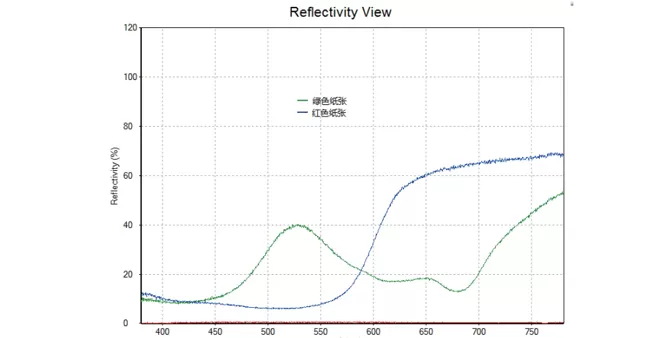

Typical Spectrum

Typical Spectrum of BIX-8811 Reflectance Measurement System
Typical Spectrum of BIX-8811 Reflectance Measurement System

Specifications of BIX-8811 Reflectance Measurement System

ModelBIX - 8811 - 0X1X
(Model Note: 0X - Spectrometer option, 1X - Sample fixture option)
Spectrometer01: 200nm - 1100nm (BIM - 6002S - 22 - S03L02F06G13)
02: 200nm - 900nm (BIM - 6002A - 01 - S03L02F06G01)
03: 400nm - 1100nm (BIM - 6002A - 13 - S03L01F05G02)
Sample Fixture11:
1 to 1 fiber (SIM - 6102 - 1010 - S/S - P) *2ea
Double - point Reflection Stage (BIM - 6303) *1ea
12:
Y type fiber (SIM - 6102Y - 061016 - T/SS+M) *1ea
Double - point Reflection Stage (BIM - 6303) *1ea
13:
Integrating Sphere for Reflection (SIM - 3003 - 02501) *1ea
Integrating Sphere Stage (BIM - 6316 - 25) *1ea
Light SourceDeuterium Tungsten Light Source (BIM - 6203) *1ea
StandardMirror Reflectance Standard (SIM - 6326 - 30) *1ea
Diffuse Reflectance Standard (SIM - 6304 - 30) *1ea
