Easy sample mounting with professional fixture accessories
User-friendly operation with high repeatability and rapid detection

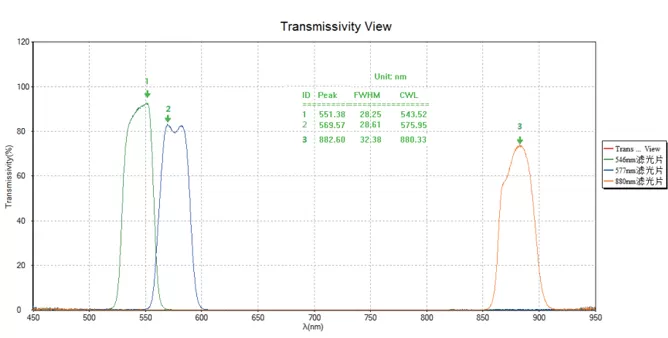

Full-spectrum transmittance data & curves for intuitive data visualization
Highly compatible modular design for application expansion
Attenuation performance testing of optical filters
Light transmittance measurement for glass and other materials
Wavelength-specific absorption analysis of materials
| Model | BIX - 8812 - 0X1X (Model Note: 0X - Spectrometer option, 1X - Sample fixture option) |
| Spectrometer | 01: 200nm~1100nm (BIM - 6002S - 22 - S03L02F06G13) |
| 02: 200nm~900nm (BIM - 6002A - 01 - S03L02F06G01) | |
| 03: 400nm~1100nm (BIM - 6002A - 13 - S03L01F05G02) | |

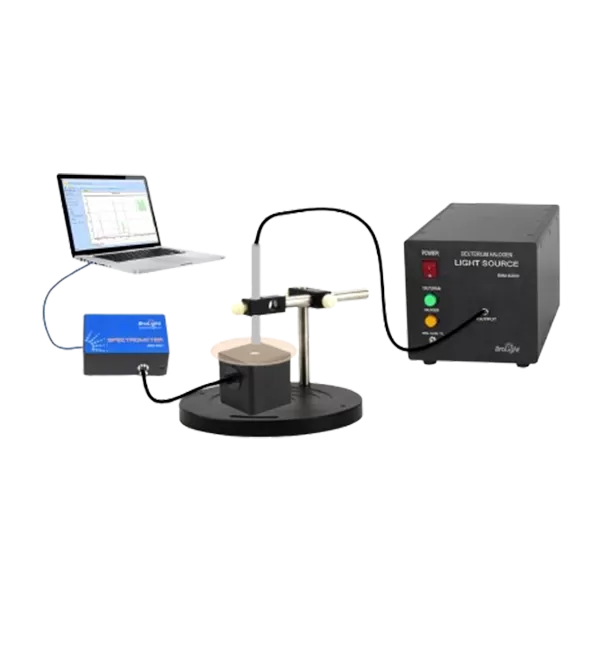

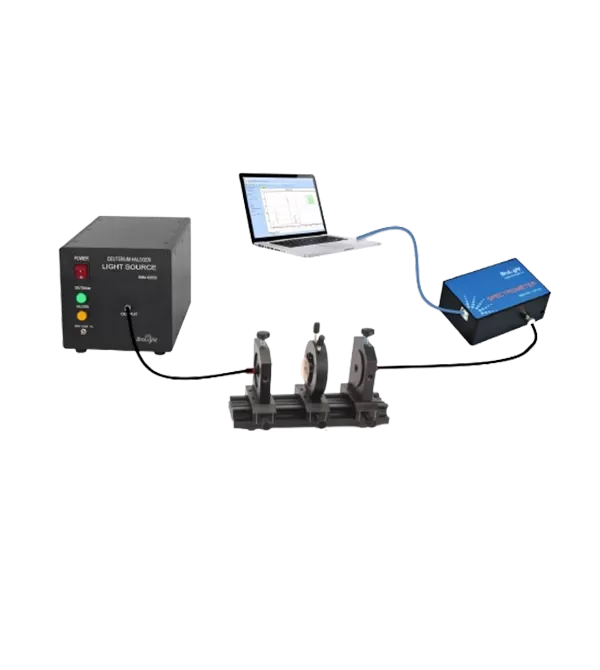

| Sample Fixture | 11: 1 to 1 fiber (SIM - 6102 - 1010 - S/S - P) *2ea Transmission Holder (BIM - 6302) *1ea |
| 12: 1 to 1 fiber (SIM - 6102 - 1010 - S/S - P) *1ea 1 to 1 fiber (SIM - 6102 - 1010 - S/T - P) *1ea Double - point Reflection Stage (BIM - 6303) *1ea Radiation Integrating Sphere (SIM - 3001 - 02501) *1ea | |
| Light Source | Deuterium Tungsten Light Source (BIM - 6203) *1ea |
