Fluorescence Measurement System

BIX-8814
Fluorescence Measurement System

Fluorescence is light emission from a substance after absorbing UV photons. Key applications include high-resolution optics, medical diagnostics, and specialty lighting. Measurement systems vary based on the material's state: For liquid samples, standard cuvettes are used, with fluorescence detected at 90 degrees to the excitation beam to minimize scattered light interference. For solid samples, micro fiber-optic holders with a dual-fiber configuration at 45 degrees are employed for optimal excitation and collection. This non-contact method helps preserve sample integrity.

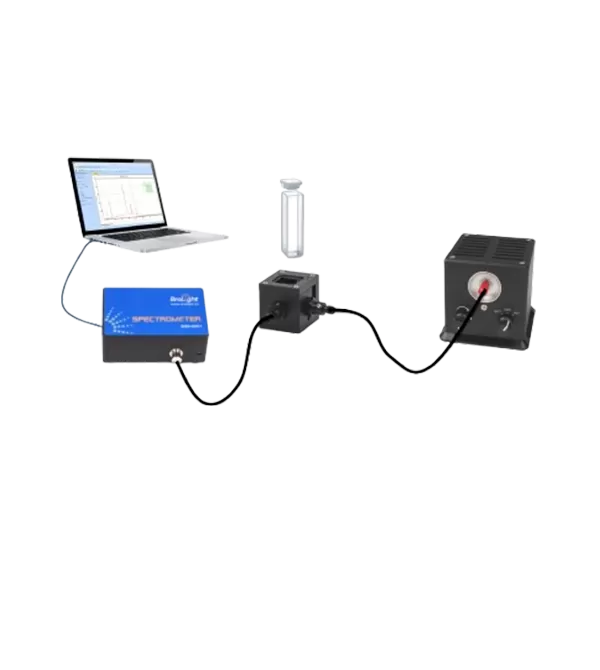

fluorescence measurement system china

Features of BIX-8814 Fluorescence Measurement System

  • Dual measurement geometries accommodate diverse sample types

  • 90° detection ensures pure fluorescence spectra for liquids

  • 45° fiber alignment maximizes signal from solid surfaces

  • Compatible with both reflective and translucent materials

Applications of BIX-8814 Fluorescence Measurement System

  • Biochemical Component Analysis
    Biomarker detection via fluorescence; Cell imaging with metabolic monitoring; Drug-protein binding studies

  • Pharmaceutical Quantitative Analysis
    API concentration assay; Impurity identification; Real-time dissolution testing

  • Mineral & Material Fluorescence Characterization
    Gemstone identification; Rare earth element detection; Nanomaterial evaluation

Applications of BIX-8814 Fluorescence Measurement System

Typical Spectrum

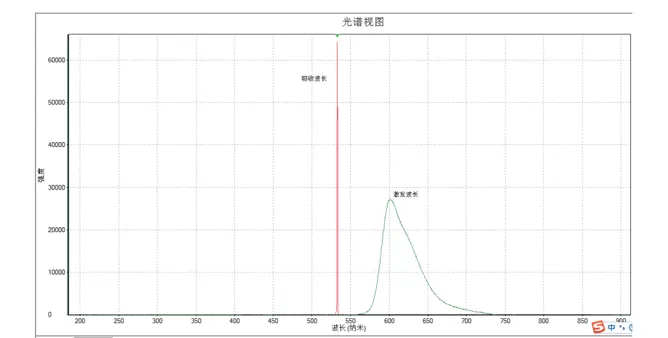

Fluorescence spectrum of Rhodamine B
Fluorescence spectrum of Rhodamine B

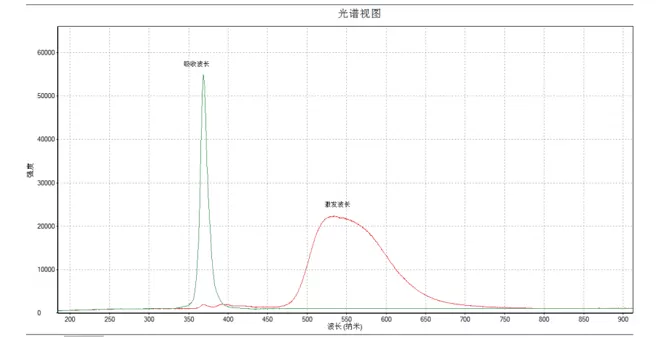

Ink fluorescence spectrum
Ink fluorescence spectrum

Specifications of BIX-8814 Fluorescence Measurement System

ModelBIX-8814-0X1X
(Model Note: 0X- Spectrometer option, 1X- Sample fixture and Light Source option)
Spectrometer01: 200nm~1100nm(BIM-6002S-22-S03L02F06G13)
02: 200nm~900nm(BIM-6002A-01-S03L02F06G01)
03: 400nm~1100nm(BIM-6002A-13-S03L01F05G02)
Sample Fixture and Light Source11:
1 to 1 fiber(SIM-6102-1010-S/S-P)*2ea
Cuvette Holder(BIM-6305-03)*1ea
Quartz Cuvette(SIM-6301-QF10)*1ea
LED Light Source(BIM-6216)*1ea
12:
1 to 1 fiber(SIM-6102-1010-S/S-P)*1ea
Diffuse reflection holder(SIM-6302)*1ea
LED Light Source(BIM-6215)*1ea
LED Power Supply(BIM-5036)*1ea
