Raman Measurement System

BIX-8815
Raman Measurement System

Raman spectroscopy is an analytical technique that identifies molecules by measuring the unique energy shift that occurs when light scatters off them. It enables precise qualitative identification of unknown samples and accurate quantitative analysis through the linear relationship between Raman peak intensity and molecular concentration. Key Advantages:

1. Non-contact & non-destructive – Ideal for liquid & solid samples without physical interference.

2. High specificity – Distinct spectral fingerprints for precise material identification.

3. Broad applicability – Suitable for organic/inorganic compounds, polymers, pharmaceuticals, etc.

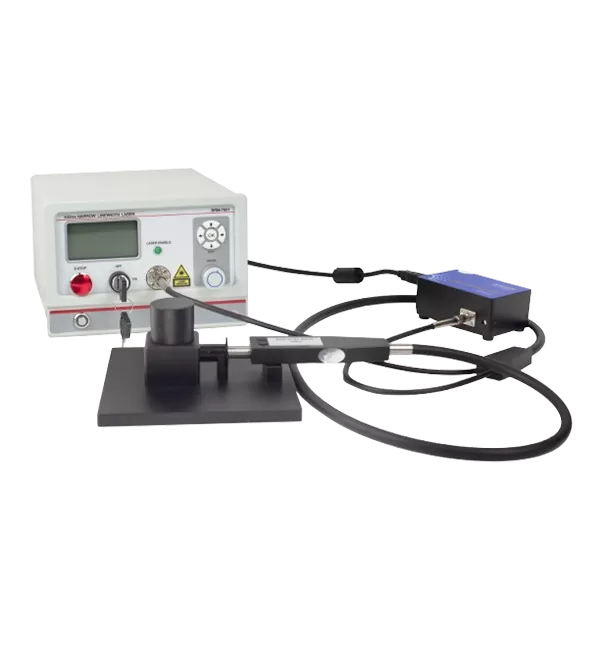

raman measurement system wholesale

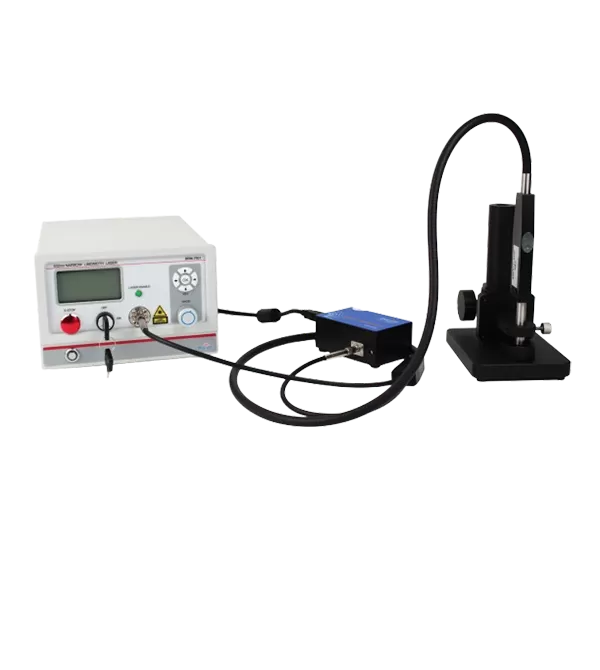

raman measurement system supplier
raman measurement system wholesale
raman measurement system supplier

Features of BIX-8815 Raman Measurement System

  • Modular & Intuitive Design: All core components (laser, probe, spectrometer) are separated  and easily connected. This hands-on setup demystifies the instrument, allowing students to visually understand the function and arrangement of each part of a Raman system.

  • Robust Operation: All core components of the apparatus are built with Research or Industrial grade, Make the durability to withstand frequent student use.

  • Comprehensive Learning Software: The included user-friendly software is tailored for students, guiding them through data acquisition, processing, and analysis, helping them focus on interpreting results rather than complex instrument control.

  • Versatile Experimentation: Supports a wide range of liquid and solid samples, enabling both structured curriculum experiments and open-ended student projects.

Applications of BIX-8815 Raman Measurement System

  1. Gemstone & Cultural Relic Authentication – Non-destructive identification of precious jewelry and artifacts.

  2. Food Safety Inspection – Rapid detection of fruits, vegetables and agricultural products.

  3. Pharmaceutical Analysis – Composition testing and quality control of drugs.

  4. Chemical & Environmental Monitoring – Industrial inspection and pollution detection.

Applications of BIX-8815 Raman Measurement System

Typical Spectrum

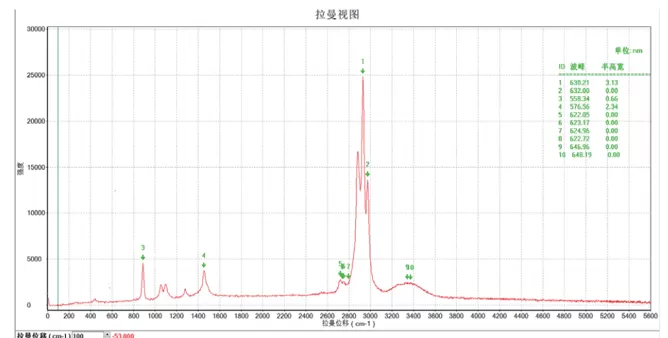

Raman spectrum of the alcohol sample under the excitation wavelength of 532 nm
Raman spectrum of the alcohol sample under the excitation wavelength of 532 nm

Dimensions (mm)

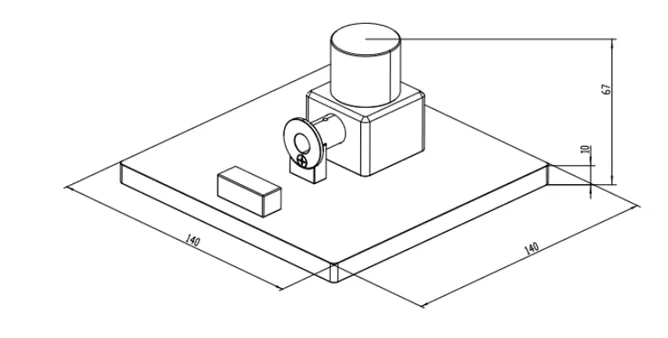

Liquid test accessories
Liquid test accessories

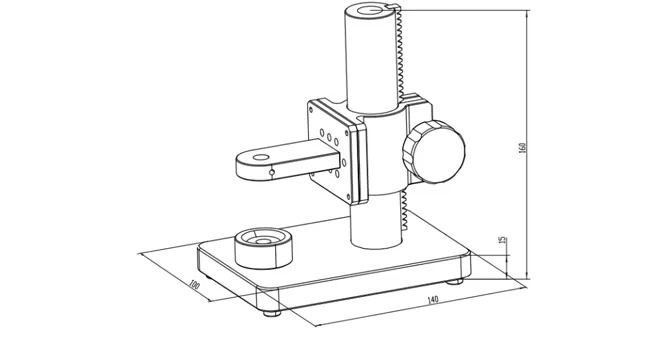

Solid test accessories
Solid test accessories

Specifications of BIX-8815 Raman Measurement System

ModelBIX-8815-532-01 Basic
BIX-8815-532-02 High resolution
BIX-8815-785-01 Basic
BIX-8815-785-02 High resolution
BIX-8815-830-01 Basic
BIX-8815-830-02 High resolution
Laser ParameterWavelength 532nm
Power ≥100mW
Line width<0.1nm
Wavelength 785nm
Power ≥400mW
Line width<0.1nm
Wavelength 830nm
Power ≥400mW
Line width<0.1nm
Raman Spectroscopy Range176cm⁻¹ - 4000cm⁻¹176cm⁻¹ - 3500cm⁻¹176cm⁻¹ - 2800cm⁻¹
Optical Resolution< 10.5cm⁻¹< 10cm⁻¹< 10cm⁻¹
Probe Working Focal Length7.5mm7.5mm7.5mm
SNR【532-01】600 : 1
【532-02】800 : 1
【785-01】600 : 1
【785-02】800 : 1
【830-01】600 : 1
【830-02】800 : 1
Laser Power Supply110/220 VAC
Spectrometer InterfaceUSB2.0, 12Mbps
Humidity5%-80%
Environment Temperature0℃ -45℃
