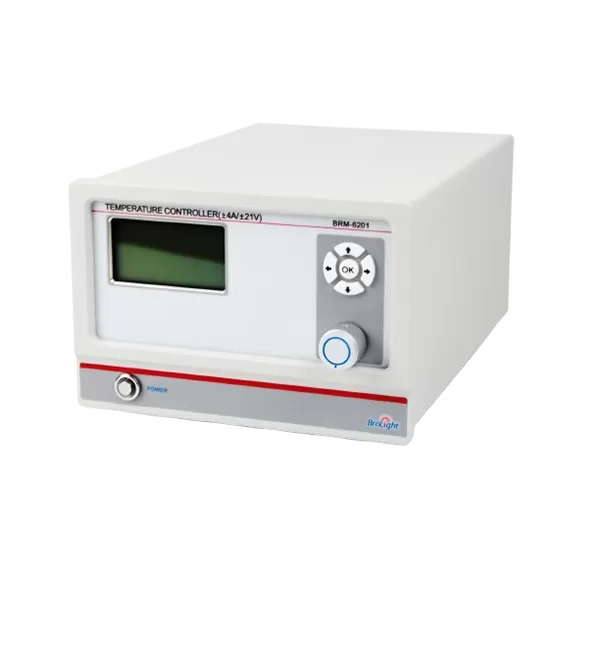

Name: Temperature Controller (±4A/±21V)
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BRM-6201

Temperature Controller (±4A/±21V)

BRM-6201 is a Peltier driver temperature controller, Which Supports up to ±4A output current.

BRM-6201 is designed with Dual Control Modes:

Current Control Mode: Delivers unidirectional current for heating/cooling
Temperature Control Mode: Auto-adjusts current magnitude/direction via PID to maintain setpoint

The unit features I/O interface for external sensor connections:

PT100 : Precise Peltier temperature monitoring
NTC: Heat sink/extended temperature measurement

Features of BRM-6201 Temperature Controller (±4A/±21V)

1. Wide Operating Voltage Range: ±21V for flexible power compatibility

2. Dual Control Modes:

Current Control: Direct drive for Peltier devices
Temperature Control: 0.1° C precision with PID regulation

3. Multi-NTC Support: Configurable parameters for various NTC models

4. Versatile Device Compatibility:

Peltier modules (TEC)
Thermistor-based components

Applications of BRM-6201 Temperature Controller (±4A/±21V)

Laser Diode Precision Temperature Control
Stable wavelength locking for optical communication
Industrial Temperature Regulation
Maintains ±0.1°C stability for process control
Nonlinear Crystal Temperature Stabilization
Enables frequency doubling in SHG applications
Photodetector Cooling
Reduces dark current in APD/PMT devices
PN Junction Characterization
Supports semiconductor research via I-V curve analysis

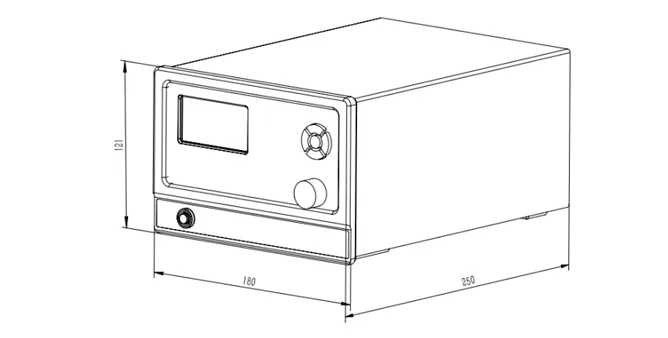

Dimensions (mm）

Dimensions of BRM-6201 Temperature Controller

Specifications of BRM-6201 Temperature Controller(±4A/±21V)

Model	BRM-6201
Output Current	±4A
Output Voltage	±21 V
Temperature Resolution	0.1°C
Operating Mode	Current/temperature control
Heating and Cooling Devices	Peltier / Thermal Resistance
Sensor Interface	1 channel PT100 interface 1 channel NTC interface
Sensor Interface	1 channel PT100 interface 1 channel NTC interface
Temperature Range	-100°C ~200°C (PT100) -6°C ~150°C (NTC)
Temperature Range	-100°C ~200°C (PT100) -6°C ~150°C (NTC)
Power Supply	110-220VAC
Dimensions	180×250×121mm

What's included

#	Part Description	Model	Qty.
1	Temperature Controller(±4A/±21V)	BRM-6201	1
2	Power cable	BC-105075	1
