Name: Temperature Controller (±16A/±30V)
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BRM-6202

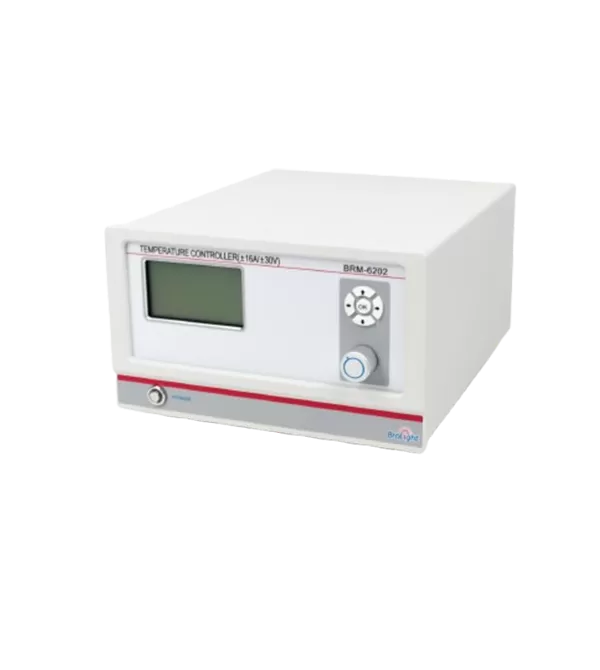

Temperature Controller (±16A/±30V)

BRM-6202 is a Peltier driver temperature controller, Which Supports up to ±16A output current.

BRM-6202 is designed with Dual Control Modes:

Current Control Mode: Delivers unidirectional current for heating/cooling
Temperature Control Mode: Auto-adjusts current magnitude/direction via PID to maintain setpoint

The unit features I/O interface for external sensor connections:

PT100: Precise Peltier temperature monitoring
NTC: Heat sink/extended temperature measurement

Features of BRM-6202 Temperature Controller (±16A/±30V)

Wide Operating Voltage Range: ±30V for flexible power compatibility
Dual Control Modes:
Current Control: Direct drive for Peltier devices
Temperature Control: 0.1° C precision with PID regulation
Multi-NTC Support: Configurable parameters for various NTC models
Versatile Device Compatibility:
Peltier modules (TEC)
Thermistor-based components

Applications of BRM-6202 Temperature Controller (±16A/±30V)

Laser Diode Precision Temperature Control
Ensures stable wavelength locking for optical communication.
Industrial Temperature Regulation
Maintains ±0.1°C stability for process control systems.
Nonlinear Crystal Temperature Stabilization
Enables frequency doubling in SHG applications.
Photodetector Cooling
Reduces dark current in APD/PMT devices.
PN Junction Characterization
Supports semiconductor research via I-V curve analysis.

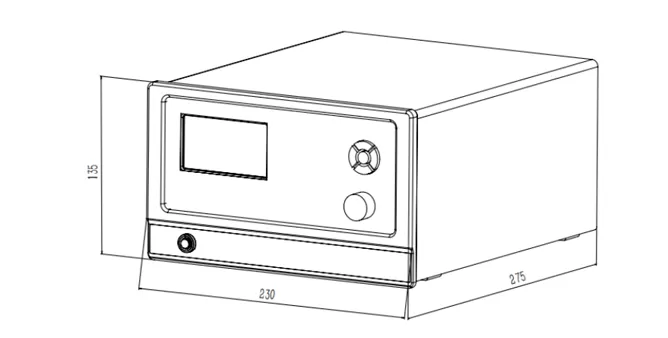

Dimensions (mm）

Dimensions of BRM-6202 Temperature Controller

Specifications of BRM-6202 Temperature Controller (±16A/±30V)

Model	BRM-6202
Output Current	±16A
Output Voltage	±30V
Temperature Resolution	0.1°C
Operating Mode	Current / Temperature control
Heating and Cooling Devices	Peltier / Thermal Resistance
Sensor Interface	1 channel PT100 interface 1 channel NTC interface
Sensor Interface	1 channel PT100 interface 1 channel NTC interface
Temperature Range	-100°C ~200°C (PT100) -6°C ~150°C (NTC)
Temperature Range	-100°C ~200°C (PT100) -6°C ~150°C (NTC)
Power Supply	110/220VAC
Dimensions	230 × 275 × 135mm

What's included

#	Part Description	Model	Qty.
1	Temperature Controller(±16A/±30V)	BRM-6202	1
2	Power cable	BC-105075	1
