Name: Narrow Linewidth Laser
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BRM-760X

Narrow Linewidth Laser

The BRM-760X series lasers can provide output at various central wavelengths, including 532nm, 785nm, 830nm, and 1064nm, with a linewidth of 0.1nm. These lasers feature narrow linewidth and high power stability, making them suitable for a wide range of applications such as DNA sequencing, flow cytometry, digital imaging, analytical chemistry, particle measurement, confocal microscopy, and Raman spectroscopy.

Features of BRM-760X Narrow Linewidth Laser

<0.1nm narrow linewidth output
Tunable optical power (0-100%)
Power stability ±2%
External modulation mode supported

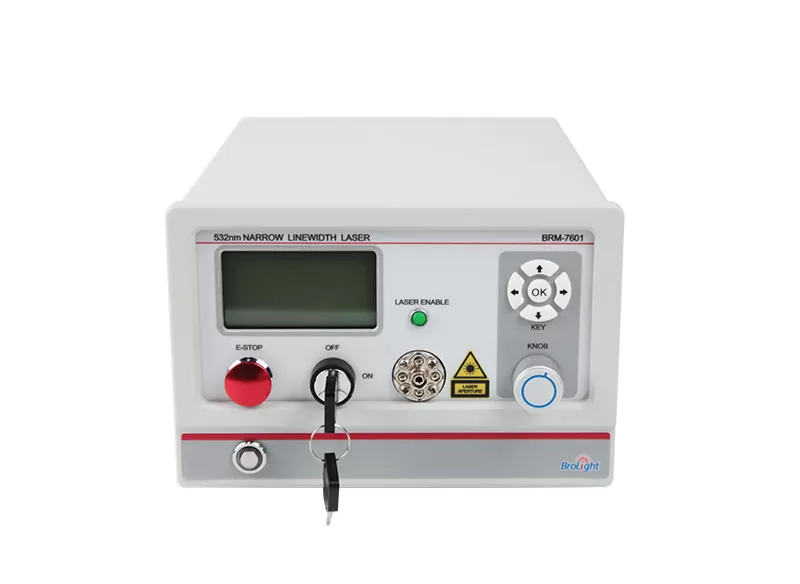

Applications of BRM-760X Narrow Linewidth Laser

Raman spectroscopy test
Flow cytometry
Biochemical analysis
Particle measurement

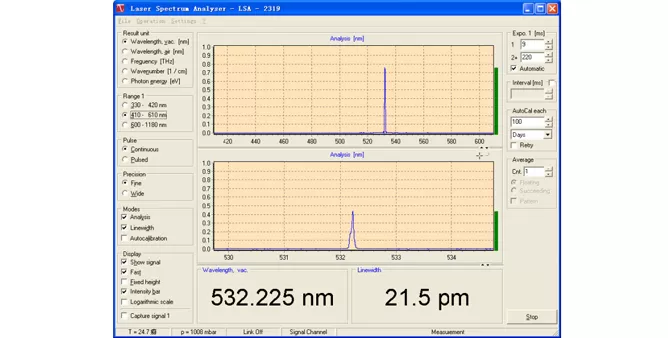

Typical Spectrum

BRM-7601 Narrow Linewidth Laser

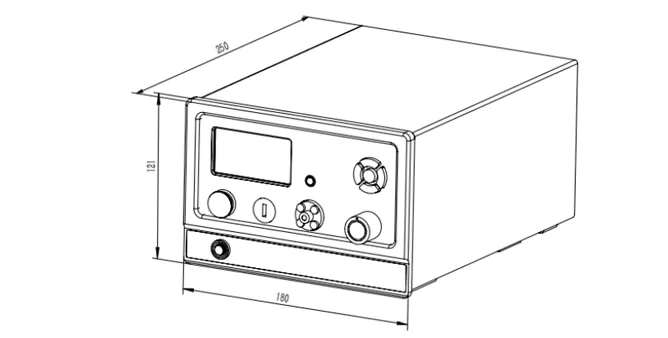

Dimensions (mm）

Dimensions of BRM-760X Narrow Linewidth Laser

Specifications of BRM-760X Narrow Linewidth Laser

Model	BRM-7601	BRM-7602	BRM-7603	BRM-7604
Wavelength	532nm	785nm	830nm	1064nm
Output Power	0-100mW	0-400mW	0-400mW	0-800mW
Raman Applications	- Inorganic materials - Raman resonance experiments - Carbon materials (e.g., carbon nanotubes, fullerenes)	- Limited fluorescence interference - High spectral resolution - Measurement of chemicals and organic materials	- Chemical & Pharmaceutical Analysis – Molecular fingerprint identification - Material Science – Crystal structure and stress characterization - Biomedical Research – Label-free cellular/tissue imaging	- Minimal fluorescence interference - Analyzing dark or colored samples - Minimizing sample degradation - Heat-sensitive samples



Working Mode	CW
Liner Width	<0.1nm
Polarization	Linear polarization
Divergence Angle	<1.5mrad
Spot Diameter	<1.2mm
Light Spot Ellipticity	>90%
Light Spot Quality	<1.1
Power Stability	±2%
External Modulation	5V TTL/5V Analogue
Fiber Connector	SMA905, FC/PC
Cooling Mode	Built-in TEC
Warm Up	<15 minutes

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
