Tunable Light Source (QTH)

BRS-8001
Tunable Light Source (QTH)

The tunable light source system features a modular design that integrates a xenon or tungsten lamp with the BRM-650X series grating monochromator, providing a versatile light source from ultraviolet (UV) to near-infrared (NIR). Optional accessories include filter wheels, optical fibers, and power meters. It is suitable for applications such as:

1. CMOS/CCD quantum efficiency measurements
2. Solar cell testing
3. Detector characterization
4. Fluorescence excitation
5. Photochemical research
This high-performance system accommodates various scientific and industrial testing needs.

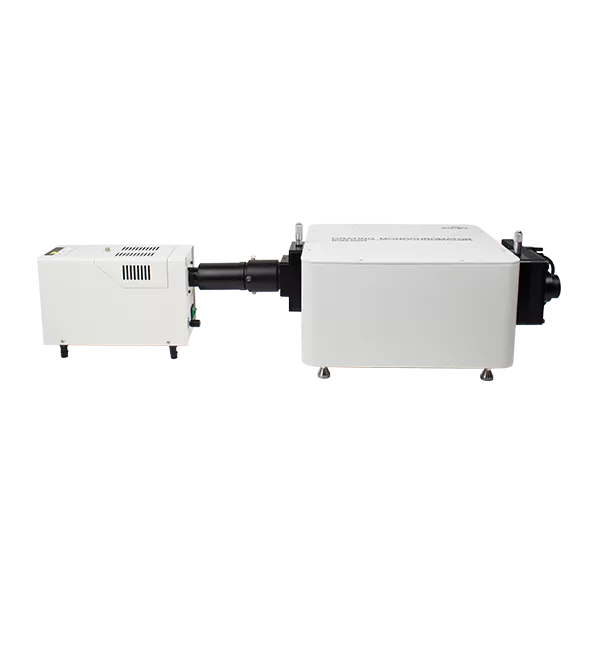

tunable light sources bulk

Features of BRS-8001 Tunable Light Source (QTH)

  • Wide Continuously Tunable Spectrum: 200-2200nm

  • Factory-Installed Multi-Grating System: Pre-configured for customer-specific needs

  • Factory-Calibrated Wavelength Output: Ensures high wavelength accuracy

  • Flexible Output Options: Fiber optic output, integrating sphere output, free-space output, etc.

  • Extensive Optional Accessories: Configurable for diverse applications

  • Control and Data Acquisition software: included


Applications of BRS-8001 Tunable Light Source (QTH)

  • CMOS/CCD quantum efficiency and spectral response measurements

  • Solar cell quantum efficiency testing

  • Detector response characterization

  • Fluorescence excitation

  • Photochemical research

Applications of BRS-8001 Tunable Light Source (QTH)

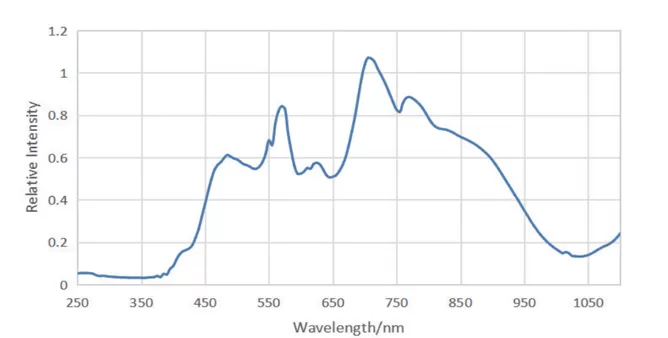

Typical Spectrum

Typical Spectrum of BRS-8001 Tunable Light Source (QTH)
Typical Spectrum of BRS-8001 Tunable Light Source (QTH)

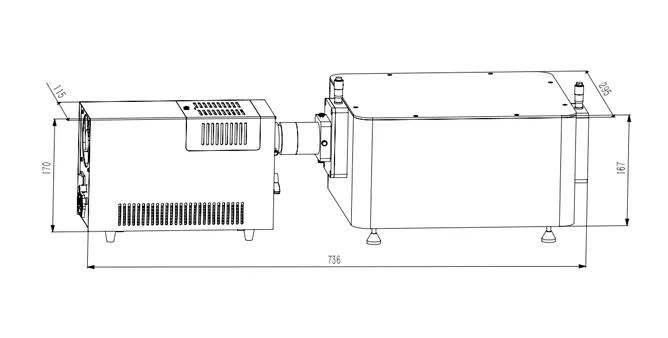

Dimensions (mm)

Dimensions of BRS-8001 Tunable Light Source (QTH)
Dimensions of BRS-8001 Tunable Light Source (QTH)

Specifications of BRS-8001 Tunable Light Source (QTH)

ItemSpecifications
Tunable Range250-1800nm
Lamp TypeQTH
Lamp Power150W
Spot Size4mm×14mm (After Filter Wheel with 3mm Slit)
Spectral Bandwidth0.15-10nm
Wavelength accuracy0.5nm~ 5 nm
Wavelength repeatability±0.2 nm
Lamp Life500h
Communication InterfaceUSB
Size736×295×170mm
Weight16kg
