Material Properties Detection System within Laser Heating Process

CRS-900X
Material Properties Detection System within Laser Heating Process

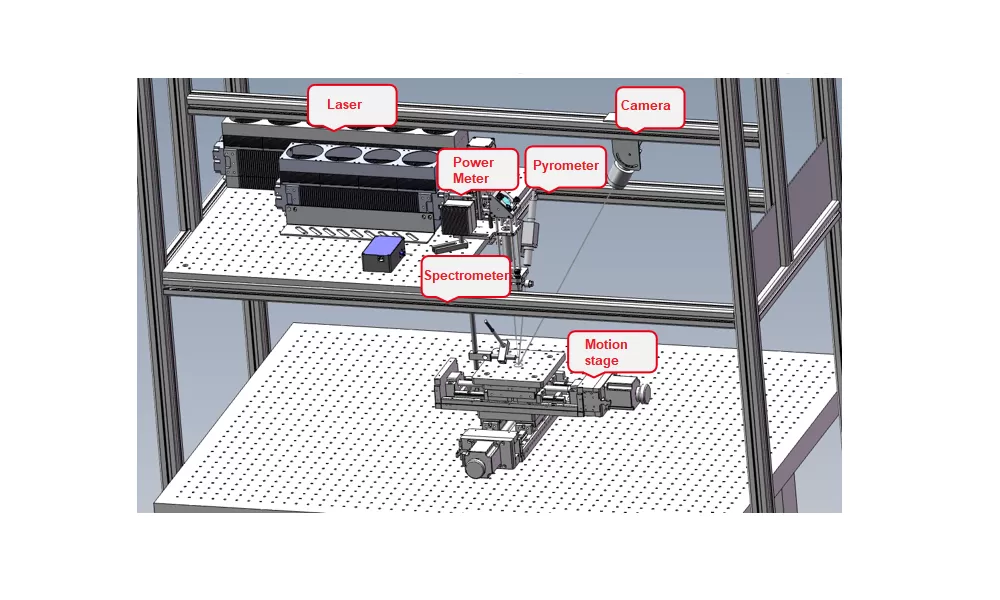

This open-architecture, configurable research platform is designed for advanced material studies and includes:

1. Heating Unit: Compatible with any laser sources.

2. Motion Control Unit: Features precision translation stages and beam steering galvanometers.

3. Monitoring Unit: Equipped with pyrometers for contactless temperature measurement and visible/IR imaging systems.

4. Analysis Unit: High-temperature Raman spectroscopy.

material properties detection system china

Key Capabilities of CRS-900X Material Properties Detection System

  • Real-time monitoring of material property evolution during laser heating

  • Multi-sensor data synchronization and analysis

  • Closed-loop process optimization through parameter feedback

Applications of CRS-900X Material Properties Detection System

  1. Phase transition studies

  2. Thermal degradation analysis

  3. Laser-material interaction research

  4. Process-structure-property relationship investigation

Applications of CRS-900X Material Properties Detection System

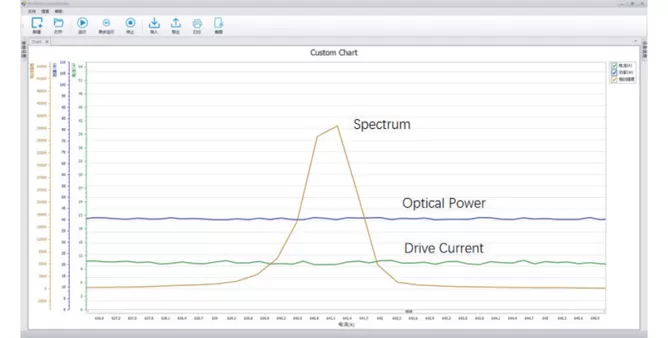

Typical Spectrum

Typical Spectrum of CRS-900X Material Properties Detection System
Typical Spectrum of CRS-900X Material Properties Detection System

Specifications of CRS-900X Material Properties Detection System

ItemSpecifications
Configurable LaserCO₂ laser
Solid-state laser
Fiber laser
Configurable Position StageSingle-axis/Multi-axis manual stage
Single-axis/Multi-axis electrically controlled stage
Configurable cameras/videosOn-demand configuration
Configurable high-temperature meters
Configurable spectrometer
Configurable power meter
Software
OthersOther customized requirements
