Name: Optical Fiber
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

SIM-61 Series

Optical Fiber

Optical fiber is a versatile tool used for light conduction and transmission. It can be combined with a variety of testing equipment, including spectrometers, spectrophotometers, temperature probes, and cell phone testing devices, for spectral analysis. Optical fiber is also used in high-sensitivity measuring instruments for optical signals and as a medium for importing and exporting light for integrating spheres.

Features of SIM-61 Series Fiber

Core diameter can be customized.
Fiber length can be customized.
Interface type can be customized.
Sheath cladding can be customized.

Applications of SIM-61 Series Fiber

Industrial spectroscopy signal measurement
Biochemical signal sampling measurement
Optical signal coupling and conduction

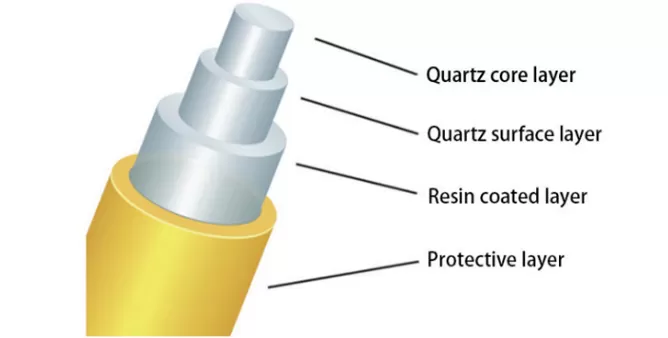

Core Structure

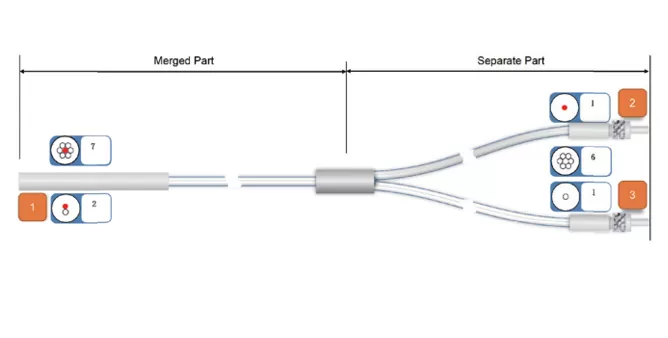

Typical 7-core Y-type fiber structure

Specifications of SIM-61 Series Fiber

Model	SIM-6102	SIM-6103	SIM-6102Y	SIM-6103Y
Structure	1-in to 1-out		Y-type
Wavelength	200-1100nm	400 - 2200nm	200-1100nm	400-2200nm
Fiber Core Layer	quartz
Optical Cortex	Fluorine-doped quartz
Coating	Acrylic
Outer Sheath	Tefzel^®etc.
Core Diameter	200 / 400 / 600 / 800 / 1000 μm
Length	5 / 50 / 100 / 150 / 200 cm etc.
NA	0.22 ± 0.02
Transmission Efficiency	Single core 85% (632.8nm) ,Multi-core 65% (632.8nm)
Output	Round / square/ linear / custom shape
Connector	SMA905 / FC / ST and others
Bending Radius	150D (Short time), 300D (long time), "D" is the core diameter
Operating Temperature	-40℃ ~ +100℃

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
