Immersion Fiber Probe

SIM-6122
Immersion Fiber Probe

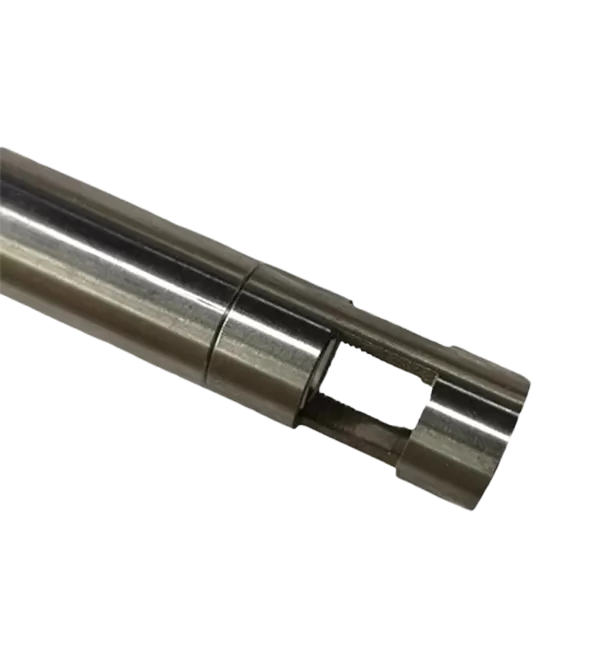

The SIM-6122 series immersion fiber optic probes feature a Y-shaped fiber structure, with customizable core diameter, fiber count, length, and connector type based on actual requirements. The probe tip is equipped with a specially designed reflector head, functioning as a miniature cuvette for real-time liquid sampling. This series of probes is typically paired with spectrometers and light sources, commonly used for real-time absorbance measurement in applications such as water quality monitoring or biochemical online detection.

optic accessories

Features of SIM-6122 Immersion Fiber Probe

  • A variety of reflection heads with different optical paths are available for selection.

  • The core diameter, length, core quantity, and connector type of the optical fiber can all be customized.

Applications of SIM-6122 Immersion Fiber Probe

  1. Online Monitoring of Water Quality

  2. Online Monitoring of Biochemical

Specifications of SIM-6122 Immersion Fiber Probe

ModelSIM-6122-0615SIM-6122-0620
Core Diameter600μm
Core Quantity2
MaterialUltraviolet-resistant quartz optical fiber
Transmission Wavelength Range200-1100nm
Combining End L10.75m1m
Splitting End L20.75m1m
Operating Temperature-30~150 °C
Reflection Head (optional)SIM-6122-H02, liquid thickness 2mm, Optical path 4mm
SIM-6122-H05, liquid thickness 5mm, Optical path 10mm
SIM-6122-H10, liquid thickness 10mm, Optical path 20mm}
