Raman Probe

SIM-6131 Series
Raman Probe

Raman probes are probes designed for laser-induced Raman spectrum applications such as 532nm, 785nm, 830nm, and 1064nm. Raman spectrum measurement applications are realized by using it with a semiconductor laser and a spectrometer. By equipping different sampling holders, samples with solid, liquid or powder form can be examined. The optical interference filter of OD6 effectively ensures the filtering of Rayleigh signals and the compact design makes the Raman probe easier to realize Raman spectrum measurements.

raman probe supplier

Features of SIM-6131 Series Raman Probe

  • Broader spectral range

  • Good consistency

  • Multi-wavelength optional

  • OD6 filter effectively reduces the Rayleigh scattering.

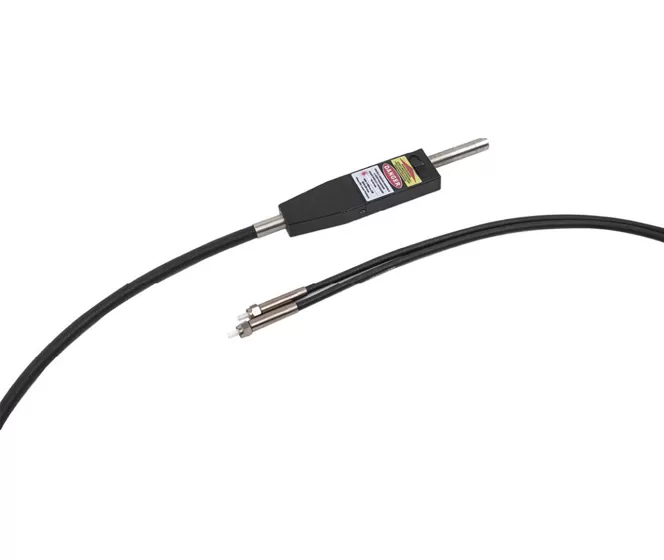

Applications of SIM-6131 Series Raman Probe

  1. Portable Raman spectrum measurement

  2. Modular Raman spectrum measurement

Applications of SIM-6131 Series Raman Probe

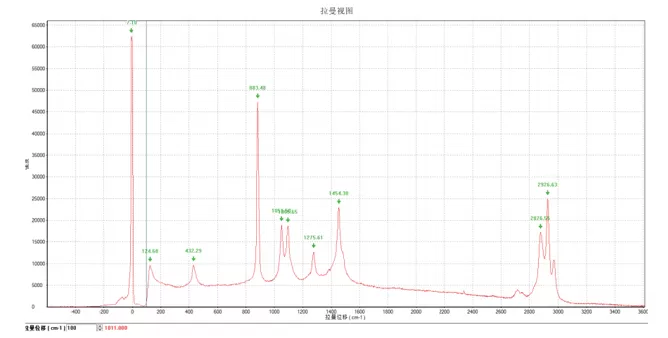

Typical Spectrum

Typical Spectrum of SIM-6131 Series Raman Probe
Typical Spectrum of SIM-6131 Series Raman Probe

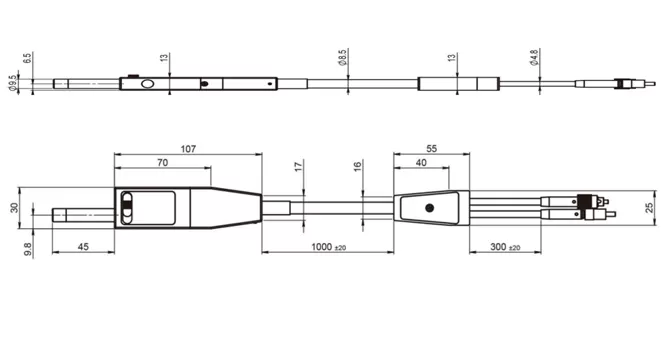

Dimensions (mm)

Dimensions of SIM-6131 Series Raman Probe
Dimensions of SIM-6131 Series Raman Probe

Specifications of SIM-6131 Series Raman Probe

Central Wavelength (nm)5327858301064
Wavelength Range176-4000cm⁻¹176-3500cm⁻¹176-2800cm⁻¹200-3000cm⁻¹
Operation ModeFiber output
Probe Size107 x 30 x 13mm
Cut-off DepthOD6
Probe Working Distance7.5mm
Transmitting EndCore dia. 105um, NA0.22, FC/PC or SMA905
Receiving EndCore dia. 200um, NA0.22, SMA905
Fiber Length(100+30)±0.2cm
Working Temperature10~30℃
Working Humidity0-75% RH
