Name: Flash Xenon Light Source
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

SIM-6205 Series

Flash Xenon Light Source

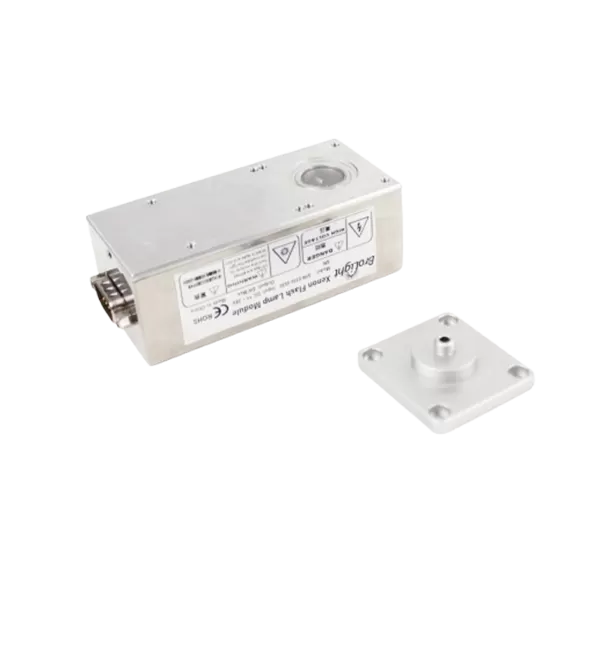

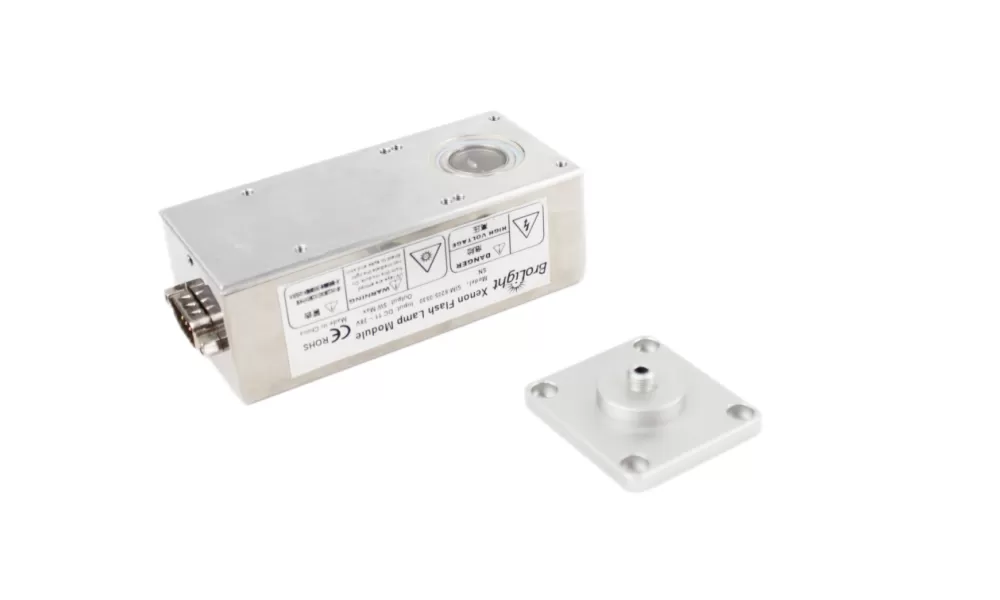

The SIM-6205 Pulsed Flashing Xenon Light Source is an innovative integrated light source combining a xenon bulb, trigger, and high-voltage power supply. It is widely used in spectral measurement applications and is increasingly incorporated into industrial online inspection systems due to its instant start-up (no preheating required) and low heat emission.

Features of SIM-6205 Series Flash Xenon Light Source

High radiant intensity and instantaneous flash power, enhancing instrument signal-to-noise ratio
Broad spectral range covering UV, visible, and near-infrared (185-2000 nm)
Ultra-long lifespan with over 100 million flashes
Excellent stability (CV ≤ 2% for 1000 flashes)
Compact size and low heat generation, ensuring optical-mechanical stability
Instant start-up without preheating, saving testing time
DB-9 connector for plug-and-play operation

Applications of SIM-6205 Series Flash Xenon Light Source

UV, visible, and infrared spectrophotometric analysis
Fluorescence analysis
Medical applications: ELISA analyzers, urine sediment analyzers, compact POCT biochemical analyzers
Industrial automation strobe light sources
Air pollution gas analysis (NO, SO₂)
Laboratory and online water pollution analysis

Typical Spectrum

Measure the spectral range of 200-1100nm with the spectrophotometer

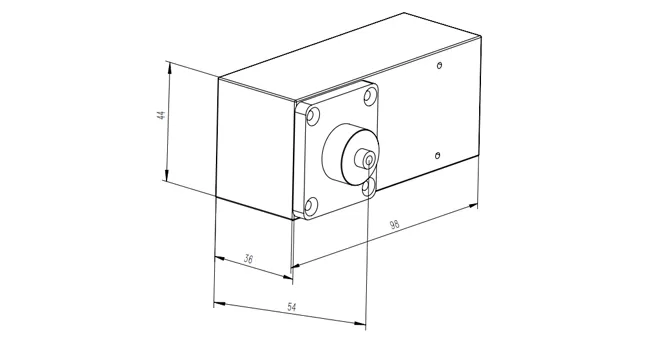

Dimensions (mm）

Dimensions of SIM-6205 Series Flash Xenon Light Source

Specifications of SIM-6205 Series Flash Xenon Light Source

Model	SIM-6205-0230	SIM-6205-0530
Power	2 W	5 W
Single Flash Energy	8.8mJ - 13.8mJ optional	22.4mJ - 35.0mJ optional
Arc Length	3.0 ± 0.3mm
Light-transmitting Panel Material	UV-transparent glass
Wavelength Range of Light Radiation	185 - 2000nm
Light Output Stability	Max 2% CV
Lifetime (number of flashes)	More than 100 million times
Input Voltage	DC -Min 11.0 - Max 28.0 V
Input Current	11 V: Max 1.4 A
Trigger Voltage	5V square wave pulse; high level pulse width ≥10 μs
Operation Temperature	0 - +40℃
Storage Temperature	-40 - +90℃
Use and Storage Humidity	Max 95% RH
Cooling Method	Natural cooling
Weight	250g
Size	100 x 45 x 36mm

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
