Quartz Cuvette

SIM-6301-Q

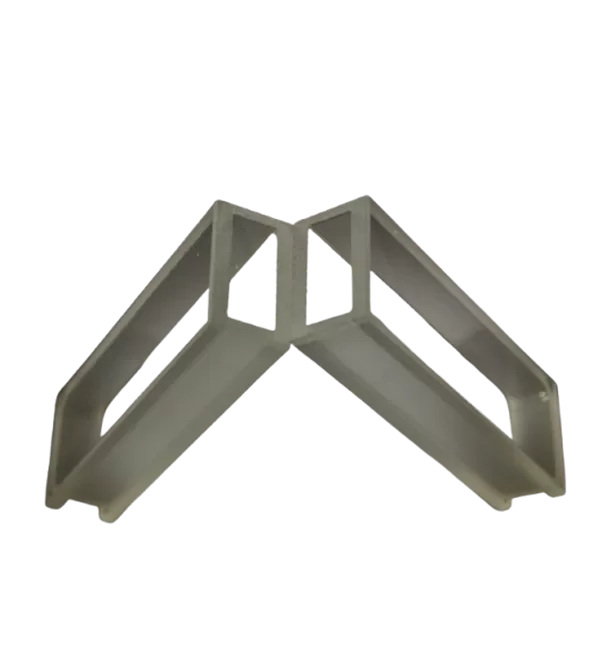

Quartz Cuvette

Spectrophotometer cuvettes are small, transparent containers used to hold samples for spectrophotometric analysis, which measures light absorption at different wavelengths. The material (glass, plastic, or quartz) is selected based on the required wavelength range. The cuvette's path length, usually 1 cm, is crucial in calculating light absorption. The SIM-6301-Q is a dual-window cuvette crafted from premium far-UV quartz glass (JGS1). Featuring λ/4 surface flatness @632.8nm and strict dimensional tolerances of +0.0/-0.1mm, it delivers exceptional optical performance with matched pair transmission variance <0.5%.

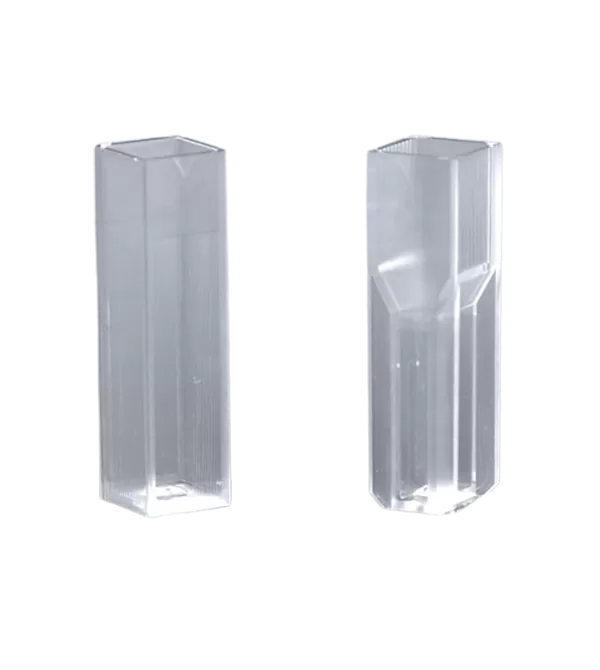

cuvettes quartz supplier
cuvettes quartz
cuvettes quartz supplier
cuvettes quartz

Features of SIM-6301-Q Quartz Cuvette

  • Material: JGS1 Synthetic Quartz (High-purity SiO₂)

  • Spectral Range: 170-2500nm (Deep UV to Near-IR)

  • Surface Accuracy: λ/4 @632.8nm (HeNe Laser Standard)

  • Dimensional Tolerance: +0.0/-0.1mm (Precision Ground)

  • Matched Pair Consistency: <0.5% Transmission Variance

  • Window Configuration: Dual Optical Polished Surfaces

Applications of SIM-6301-Q Quartz Cuvette

  1. HPLC/UV-Vis Spectrophotometry

  2. Laser Absorption Spectroscopy

  3. Fluorescence Quantum Yield Measurement

  4. Photochemical Reaction Monitoring

  5. OEM Analytical Instrument Integration

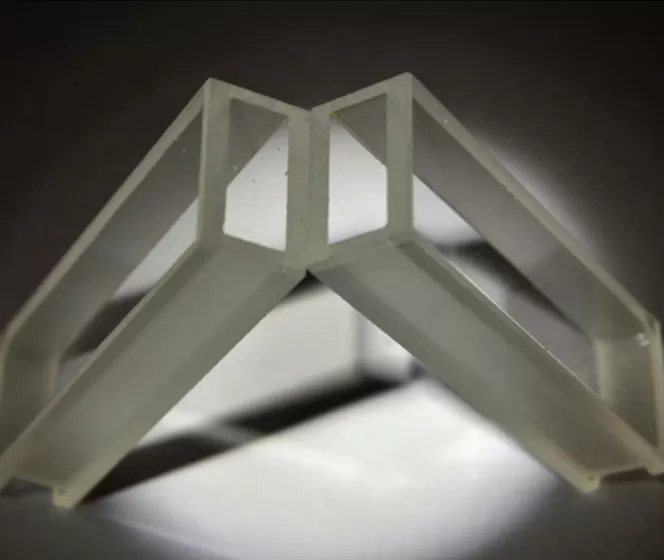

Applications of SIM-6301-Q Quartz Cuvette

Specifications of SIM-6301-Q Quartz Cuvette

ModelSIM-6301-QT05SIM-6301-QT10SIM-6301-QF10
Optical Path5mm10mm
Polished window24
Capacity3.5ml
MaterialFar ultraviolet quartz glass (JGS1)
Wavelength200nm-2500nm
Dimension12.5*7.5*45mm12.5*12.5*45mm12.5*12.5*45mm
Optical Direction2 windows for light pass4 windows for light pass
