Name: Laser Detection Card
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

SRM-66 Series

Laser Detection Card

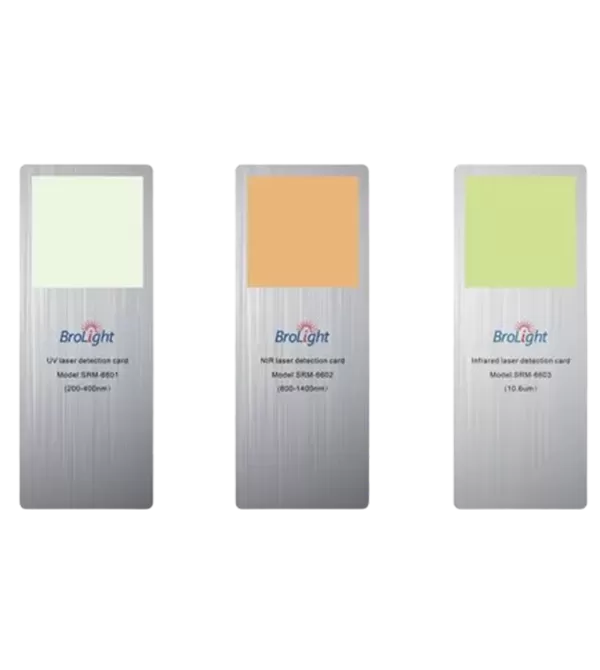

Brolight UV/IR Sensor Card is a handheld diagnostic tool designed to visually detect ultraviolet(UV)/infrared (IR) light emissions, typically used for quick verification of UV/ IR light sources (e.g., UV lamps lasers, LEDs, thermal radiators) in 200~400nm or >700nm range. The SRM-6601/6602/6603 series features a stainless steel substrate and a bookmark-sized compact design, making them both highly portable and exceptionally durable for long-term use.

Features of SRM-66 Series Laser Detection Card

Passive Operation: No batteries or power required
Low activation threshold: Capable of detecting even weak laser beams
Wavelength: UV, NIR, and MIR (specific models vary).
Durable Construction: Stainless steel base ensures long-term usability.
Instant Response: Immediate visible glow upon light exposure.

Applications of SRM-66 Series Laser Detection Card

Laser Alignment: Quickly locate invisible IR/UV beams in optical setups.
Beam Profiling: Identify focal points of laser systems.
Education & Labs: Safe visualization of non-visible laser radiation.

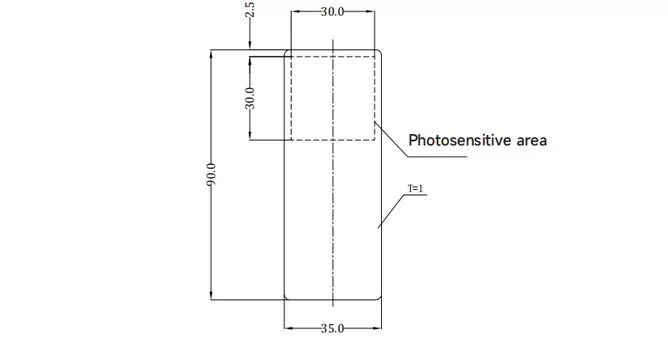

Dimensions (mm)

Dimensions of SRM-66 Series Laser Detection Card

Specifications of SRM-66 Series Laser Detection Card

Model	SRM-6601	SRM-6602	SRM-6603

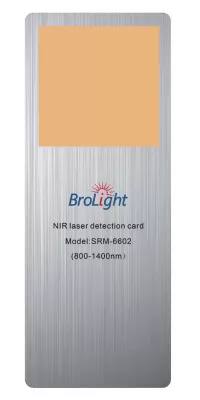

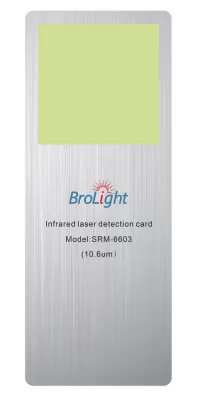

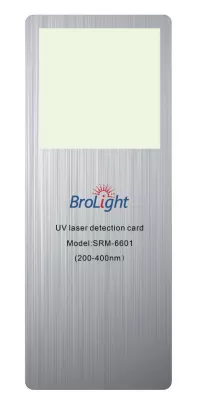

Product Picture
Substrate Material	Stainsteel
Wavelength Range	200nm-400nm	800nm-1400nm	10.6μm
Coloration Threshold	< 1uJ/cm²@355nm	< 1uJ/cm²@1064nm	< 1.7W/cm²@10.6um
Damage Threshold	> 0.16mJ/cm²@355nm	> 0.14mJ/cm²@1064nm	> 17W/cm²@10.6um
Sensor Size	30 x 30 mm
Card Size	35 x 90 mm

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
