Name: Laser Principle Experiment Apparatus
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BEX-8201

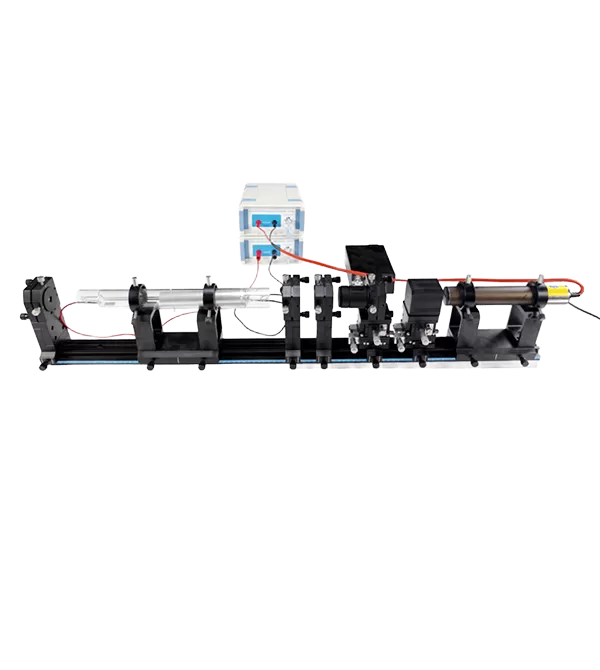

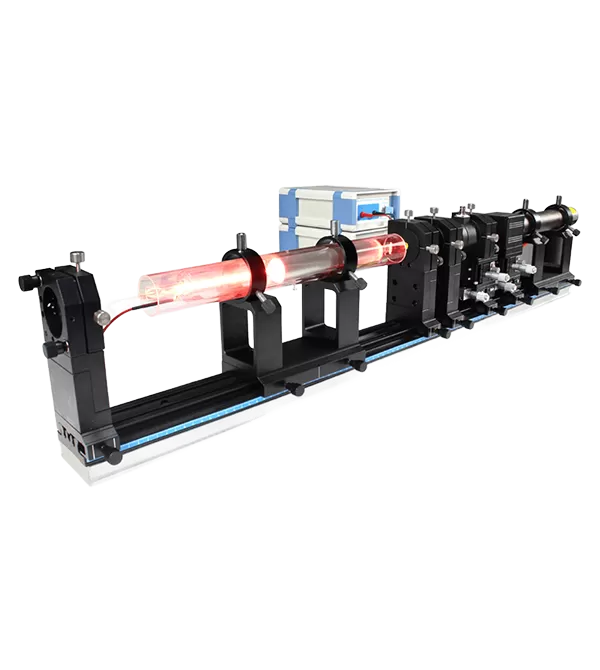

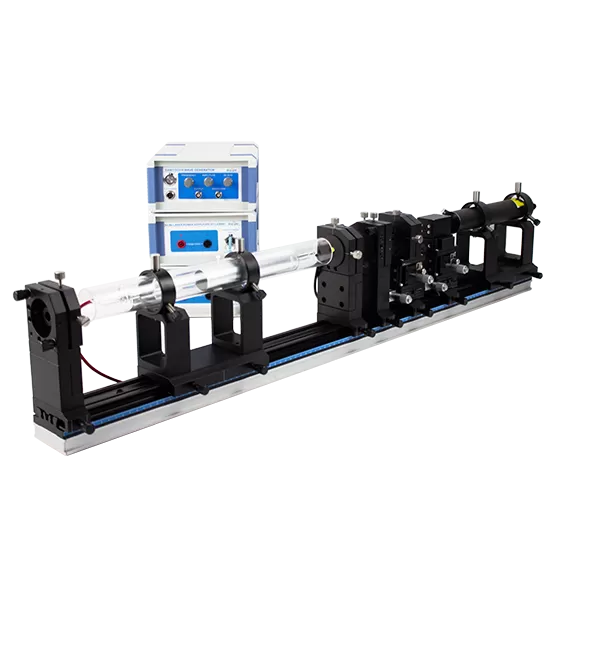

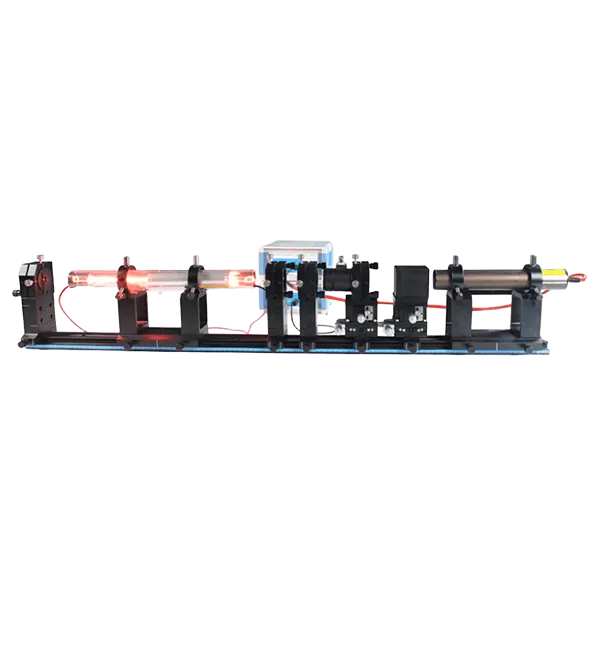

Laser Principle Experiment Apparatus

This experimental apparatus adopts a fully open-cavity optical path structure, helping students understand the fundamental composition of lasers. The Primary laser tube is equipped with a protective tube and internally integrated terminals for enhanced operational safety. Industrial-grade Tracks, adjustable mounts, and an optimized optical path simplify resonator alignment and ensure excellent optical stability.

Features of BEX-8201 Laser Principle Experiment Apparatus

Fully open-cavity design facilitates understanding of laser structure and components.
Protective Tube over the Primary laser tube and internally placed terminals improve safety during use.
Industrial-grade Tracks and adjustable mounts, combined with an optimized optical path, ease resonator adjustment and ensure stable beam alignment.
Laser tube includes Brewster windows for linearly polarized laser output.

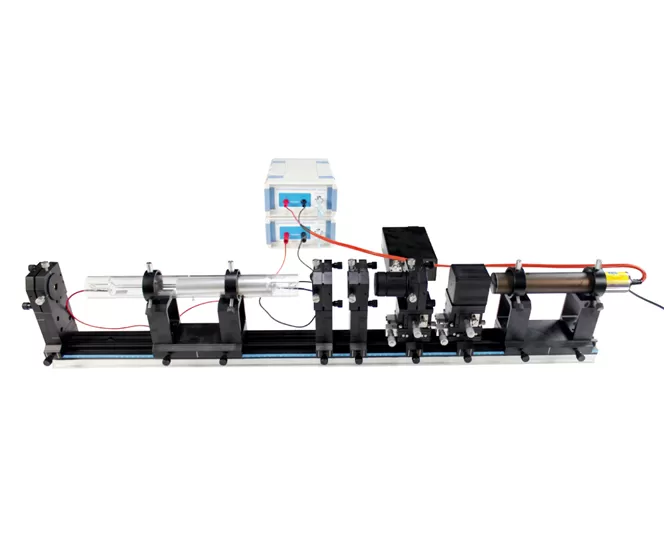

Applications of BEX-8201 Laser Principle Experiment Apparatus

Understanding laser structure and resonator alignment.
Measurement and analysis of longitudinal laser modes.
Verify polarization of laser.

Typical Experiment & Data

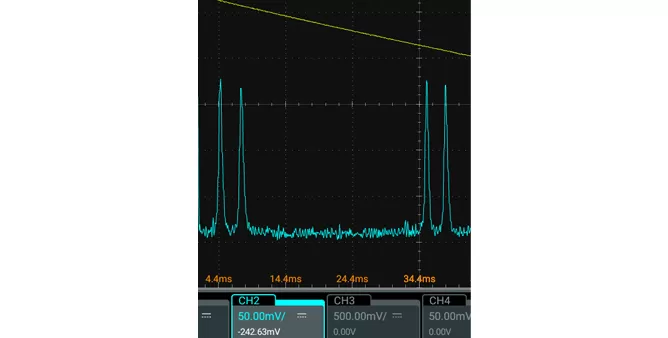

Simulated oscilloscope output showing laser mode characteristics.

Specifications of BEX-8201 Laser Principle Experiment Apparatus

No.	Parts	Key Parameters
1	Track	Reinforced, length 1000 mm
2	Mounting base	Width 30 mm
3	Motion stages	Φ45 mm, 2D adjustment
4	Concave Mirror	R = 1000 mm
5	Plane Mirror	R = ∞
7	Laser Safety Goggles	632.8 nm, OD3
8	Pilot Laser + PSU	1800 V, 5 mA
9	Primary laser + PSU	2500 V, 8 mA

Configuration List

No.	Parts	Model	Qty.
1	Track	BEM-5201-10	1
2	Mounting base	BEM-5204-30	5
3	Precision Kinematic Optical Mount, 2D	BEM-5203	4
4	Concave Mirror	BEM-5406	1
5	Plane Mirror	BEM-5407	1
6	Diaphragm, Φ5	BEM-5221-05	1
7	F-P Confocal Scanning Interferometer	L100005	1
8	Laser Safety Goggles	BEM-5801	1
9	Sawtooth Wave Generator	BEM-5020	1
10	Photodetector Assembly	BEM-5408	1
11	Pilot Laser PSU	BEM-5018	1
12	Primary laser PSU	BEM-5019	1
13	Laser Mount	BEM-5212	2
14	Polarizer	BEM-5404	1
15	Primary laser (with Protective Tube)	BC-115006	1
16	Pilot Laser	BC-115007	1
17	Polarizer Adapter Ring	BC-121059	1
18	4-wire Connecting Cable	BC-135014	1
19	BNC Cable	BC-105076	2
20	Power Cord	BC-105075	3
21	Linear Motion Stage	M020005T1	2

Recommended Options

BIM-7101U USB Photodiode Power meter

UI-5000 Universal Data Acquisition Interface

UI-5400 Capstone Data Acquisition Software

Software download

Scanning Interferometer Controller Software
