iToF Light Speed Measurement Experiment

BEX-8208
iToF Light Speed Measurement Experiment

iToF is an optical ranging method that utilizes the flight time of light. It is widely applied in Lidar, depth cameras and other 3D depth perception sensors. Therefore, the speed of light can be measured by Lidar under the condition of known distance. Through the experimental device composed of laser module, track, reflective blocks component and controller, students can understand the principle of measuring the speed of light based on flight time measurement and the refractive index of different media, as well as the principle of measuring the speed of light by iToF phase method.

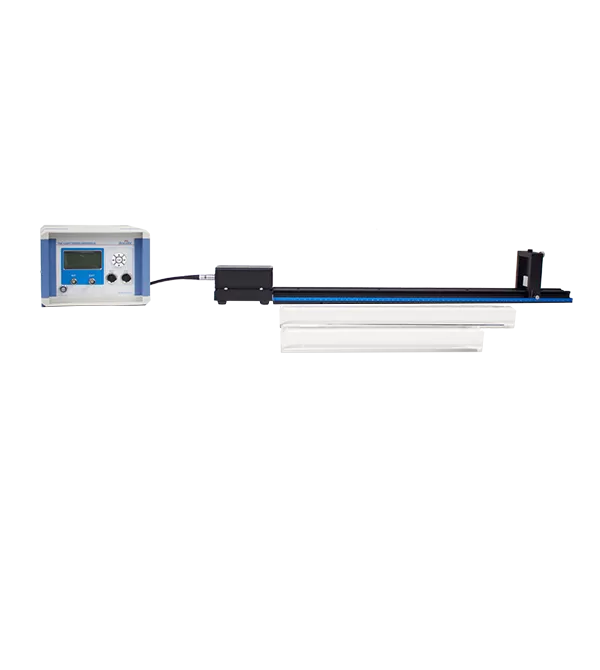

apparatus used in physics lab

Features of BEX-8208 iToF Light Speed Measurement Experiment Apparatus

  • Capable of simultaneously conducting flight time and phase method for measuring the speed of light.

  • Flight time measurement and display with ps-level accuracy.

  • Supports both single-shot measurement and continuous measurement modes.

  • Modular design for convenient and flexible experimental assembly and adjustment.

  • Industrial-grade design to ensure the stability of experiments.

  • Supports measurement by oscilloscope and digital acquisition device.

Experiments of BEX-8208 iToF Light Speed Measurement Experiment Apparatus

  • Measurement of the speed of light in air.

  • Measurement of the speed of light in liquids and calculation the refractive index of the medium.

  • Measurement of the speed of light in solids and calculation the refractive index of the medium.

  • Measurement of the speed of light based on phase modulation signals.

  • Extended experiment: measurement of other transparent liquids and solid media.

Typical Data

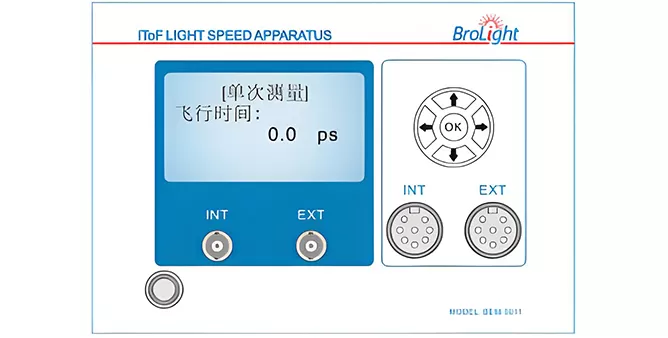

Typical Tada of iToF Light Speed Apparatus
Typical Tada of iToF Light Speed Apparatus

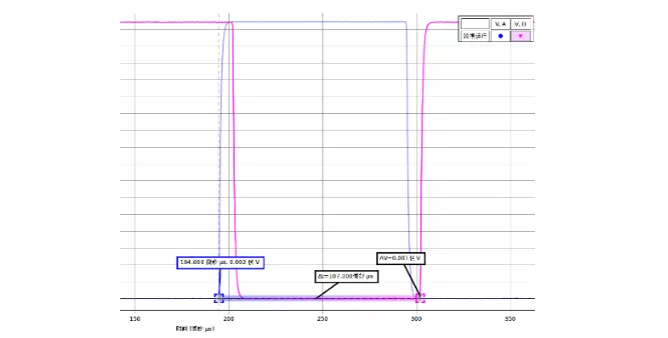

Typical Data of BEX-8208 iToF Light Speed Measurement Experiment Apparatus
Typical Data of BEX-8208 iToF Light Speed Measurement Experiment Apparatus

Specifications of BEX-8208 iToF Light Speed Measurement Experiment

No.Part NameMain Parameter
1iToF Light Speed Measurement ControllerCapable of simultaneously conducting flight time and phase method for measuring the speed of light.
Flight time measurement and display with ps-level accuracy.
Supports both single-shot measurement and continuous measurement modes.
2iToF Light Speed Measurement Laser Light SourceLight sources and light source platforms
3TrackLength: 600mm
4Overhead Gantry AssemblyIncluding sliding seat, reflective block, support rod, fixing screw and hand-tightening screw
5Transparent Medium Block 1Size:300 * 28 * 40mm
6Transparent Medium Block 2Size:400 * 28 * 40mm
7Transparent SinkSize:580 * 29 * 40mm

What's Included

No.Part NameModelQty.
1iToF Light Speed Measurement laser light sourceBEM-50111
2iToF Light Speed Measurement Laser Light SourceBIM-62171
3TrackBEM-5201-061
4Overhead Gantry AssemblyZ010002T21
5Transparent Medium Block 1M060005T21
6Transparent Medium Block 2M060006T31
7Transparent SinkM060008T21
8iToF Light Speed Measurement cableC0400041
9Plastic measuring cupA0700221
10BNC connecting CableBC-1050762
118-Pin connecting CableBC-1050772
12Power cordBC-1050751
