Giant Magnetoresistance Effect Experiment

BEX-8511

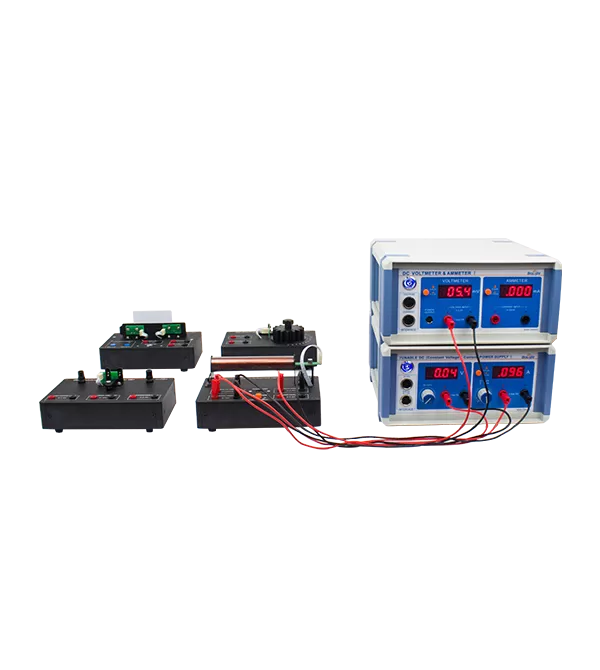

Giant Magnetoresistance Effect Experiment

The Giant Magnetoresistance (GMR) effect refers to a significant change in the electrical resistivity of magnetic materials under an external magnetic field. This quantum mechanical phenomenon occurs in layered thin-film structures composed of alternating ferromagnetic and non-ferromagnetic layers. When the magnetic moments of the ferromagnetic layers are aligned parallel, spin-dependent scattering of charge carriers is minimized, resulting in the lowest resistance. Conversely, when the magnetic moments are anti-parallel, spin-dependent scattering is maximized, leading to the highest resistance.

lab equipment list for physics
lab equipment list for physics china
lab equipment list for physics
lab equipment list for physics china

Features of BEX-8511 Giant Magnetoresistance Effect Experiment

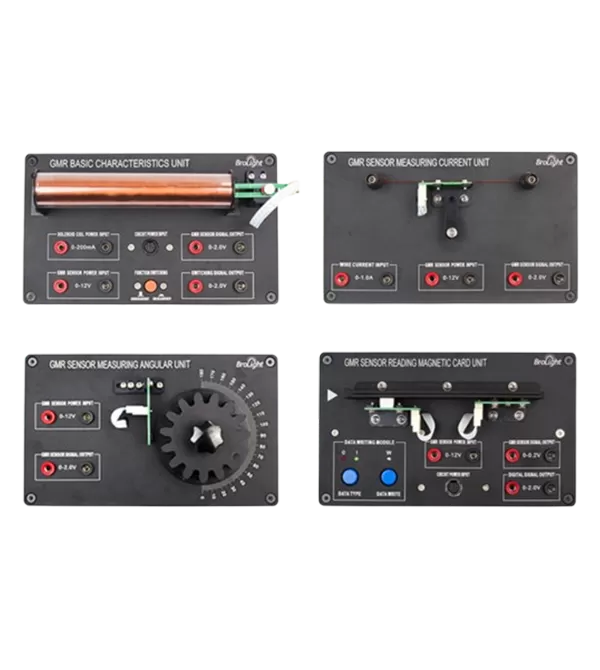

  • Independent Experimental Modules: Includes four functional modules for measuring basic GMR characteristics, current, angular displacement, and magnetic card read/write operations.

  • Comprehensive Experimentation: Supports seven types of experimental measurements and analyses, including analog and digital magnetoelectric conversion characteristics, magnetoresistance properties, wire current, solenoid magnetic field distribution, angular displacement, and magnetic card read/write functions.

  • Convenient Data Acquisition Interface: Equipped with four data interfaces compatible with voltage sensors and PASCO data acquisition software, enabling real-time data collection and efficient analysis.

Applications of BEX-8511 Giant Magnetoresistance Effect Experiment

  • Measure the magnetoelectric conversion characteristics of a GMR analog sensor.

  • Determine the magnetoresistance curve of a GMR sensor.

  • Characterize the magnetoelectric conversion properties of a GMR digital (switch) sensor.

  • Map the magnetic field distribution of a current-carrying solenoid using a GMR sensor.

  • Measure electric current in a wire with a GMR sensor.

  • Use a GMR gradient sensor to measure angular displacement of gears and demonstrate the principle of GMR-based speed (velocity) sensors.

  • Implement magnetic card recording and reading using a GMR sensor.

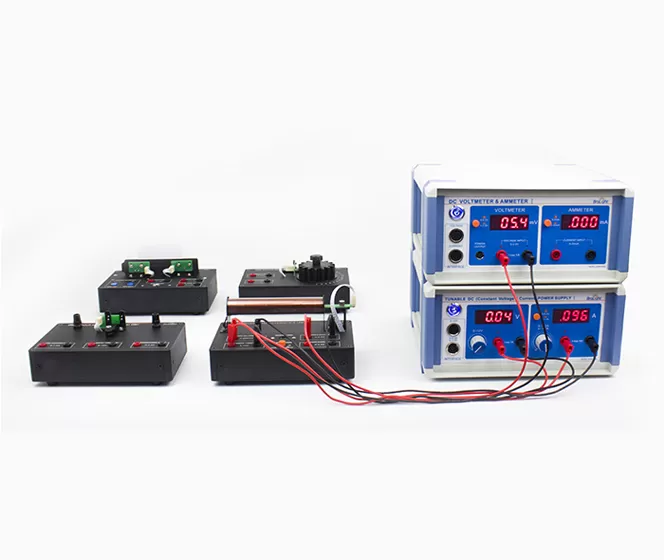

Applications of BEX-8511 Giant Magnetoresistance Effect Experiment

Experiment and Sample Data

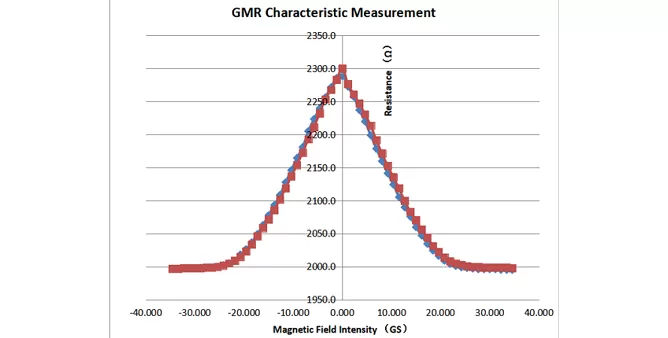

Determine the magnetoresistance curve of a GMR sensor.
Determine the magnetoresistance curve of a GMR sensor.

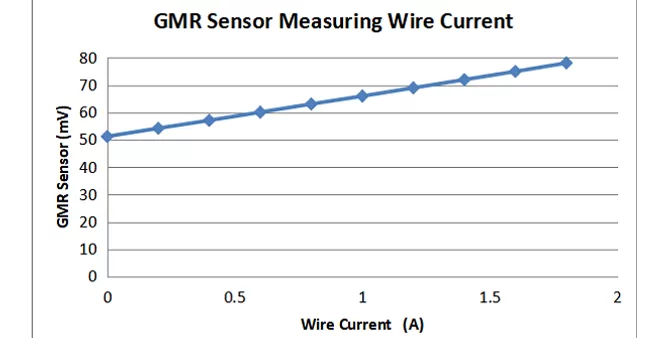

Measure electric current in a wire with a GMR sensor.
Measure electric current in a wire with a GMR sensor.

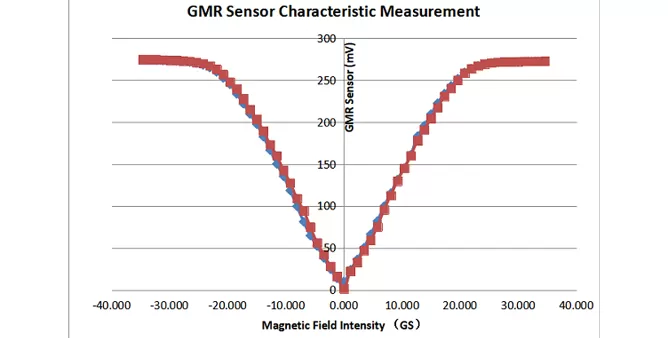

Measure the magnetoelectric conversion characteristics of a GMR analog sensor
Measure the magnetoelectric conversion characteristics of a GMR analog sensor

Specifications of BEX-8511 Giant Magnetoresistance Effect Experiment

No.

Parts

Key Parameters

1

Adjustable DC Power Supply I

Voltage: 0–12.0 V continuously adjustable;

Current: 0–200 mA / 0–1000 mA two ranges

2

DC Voltmeter/Ammeter I

Current: 2 mA / 20 mA two ranges;

Voltage: 200 mV / 2 V two ranges

3

Basic GMR Characteristic Module

Horizontal travel distance of GMR sensor: ≥80 mm; Includes GMR and sensor measurement

4

GMR Current Measurement Module

Wire current: 0–1 A;

GMR operating voltage: 0–12 V adjustable

5

GMR Angular Displacement Module

Gear with 0–180° scale;

GMR operating voltage: 0–12 V adjustable

6

GMR Magnetic Card R/W Module

Write function: digital 0/1 input keys;

Read function: GMR operating voltage 0–12 V adjustable


Configuration List

No.

Parts

Model

Qty

1

Adjustable DC Power Supply I

BEM-5055

1

2

DC Voltmeter/Ammeter I

BEM-5056

1

3

Basic GMR Characteristic Module

BEM-5717

1

4

GMR Current Measurement Module

BEM-5718

1

5

GMR Angular Displacement Module

BEM-5719

1

6

GMR Magnetic Card R/W Module

BEM-5720

1

7

4 mm Banana Plug Cable (Red)

BC-105084

4

8

4 mm Banana Plug Cable (Black)

BC-105083

4

9

Mini 8-Pin Cable

BC-105243

1

10

Power Cord

BC-105075

2

11

8-Pin Interface Cable

BC-105077

2


Recommended Options

  • UI-5400 Capstone Data Acquisition Software

  • UI-5000 850 Universal Interface

  • PS-3211 Wireless Voltage Sensor (2 units recommended)
