LED Module

BIM-6215 Series
LED Module

The compact BIM-6215 series LED module offers multiple wavelength options, including 255nm, 275nm, 310nm, 365nm, 380nm, 400nm, 415nm, and 430nm, with custom wavelengths available upon request. It can be powered by the optional Tunable able constant current power supply BIM-5036, which ensures spectral output stability while allowing intensity adjustment.
Additionally, a variety of accessories are available, such as a four-channel cuvette holder and a diffuse reflection micro fiber optic holder, enabling easy setup of LED-based fluorescence measurements.

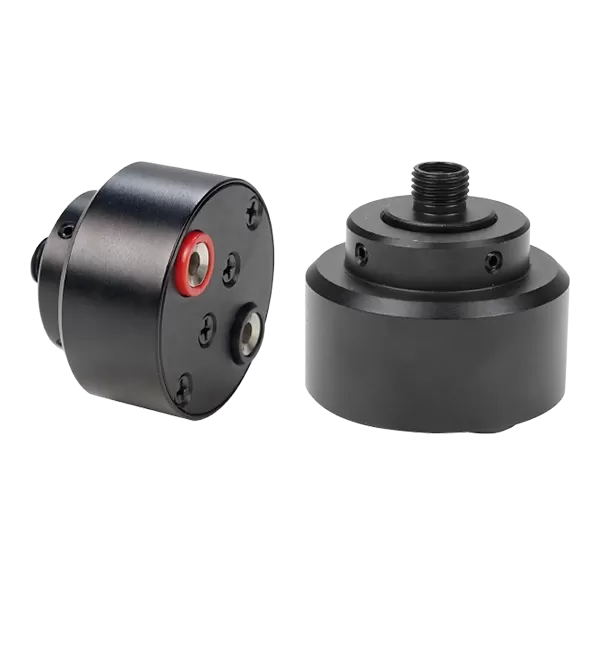

light source led

Features of BIM-6215 Series LED Module

  • High-quality chips: ensuring stable performance with no drift or fluctuation even during prolonged operation.

  • Lifespan of LED light source: ~100,000 hours

  • Cold light emission, low heat dissipation, compact size, and portability.


Applications of BIM-6215 Series LED Module

  • High-resolution optics

  • Fluorescence detection

  • Medical applications

  • Photocatalytic reactions

  • UV adhesive curing

  • Specialized lighting

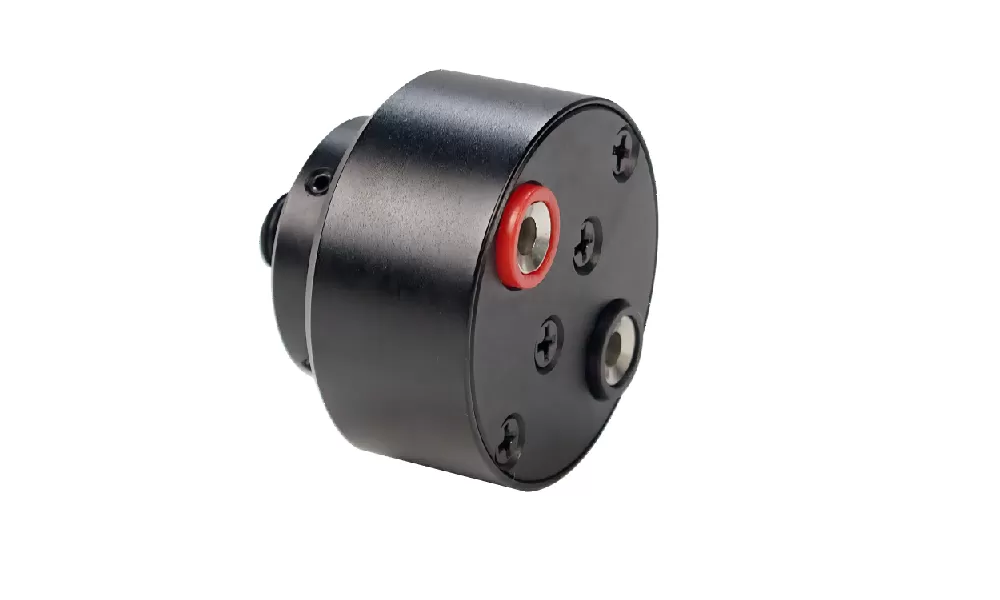

Applications of BIM-6215 Series LED Module

Specialized lighting

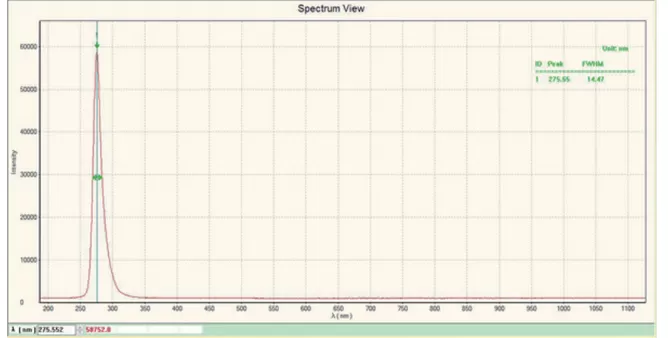

275nm spectrum
275nm spectrum

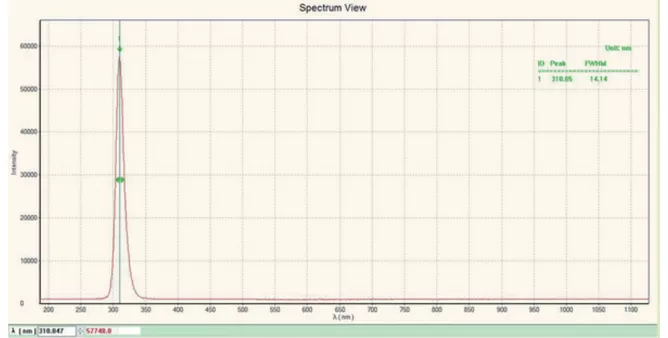

310nm spectrum
310nm spectrum

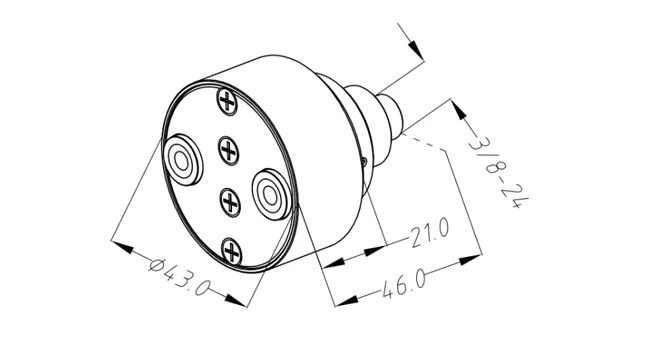

Dimensions (mm)

Dimensions of BIM-6215 Series LED Module
Dimensions of BIM-6215 Series LED Module

Specifications of BIM-6215 Series LED Module

ModelWavelength (nm)Max Current (mA)Power (W)Radiant Power (mW)Size (mm)
BIM-6215-2552551000.610-15\Φ43×46
BIM-6215-275275300.23-4
BIM-6215-310310400.33-4
BIM-6215-3653657003200-600
BIM-6215-3803807003200-600
BIM-6215-4004007003200-600
BIM-6215-4154157003200-600
BIM-6215-4304307003200-600

Note: Other wavelengths can be customized

What's included

#Part DescriptionModelQty.
1LED Light Source ModuleBIM-6215-xxx1
24mm banana plug connection wire, 60cm, black colorBC-1050831
34mm banana plug connection wire, 60cm, red colorBC-1050841


Optional

BEM-5036 Dual-Range Tunable Constant Current Source(50mA/500mA)
