BIM-761X Series

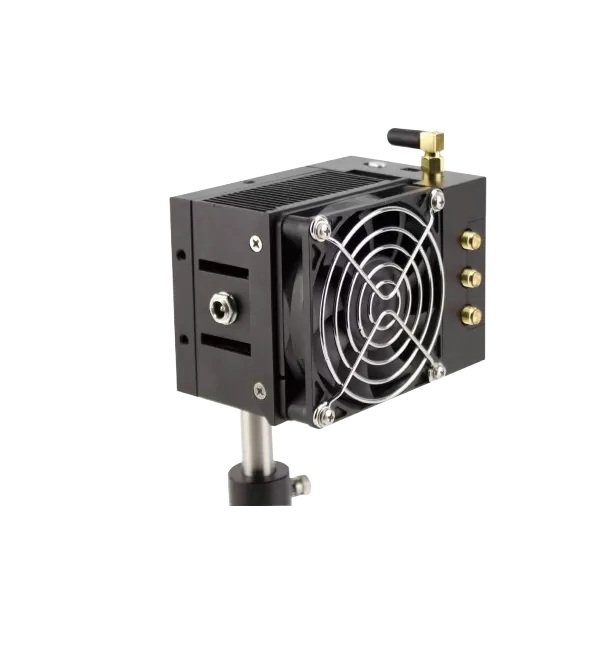

Thermopile Power Detector

This thermopile power detector delivers absolute power measurements up to 250W. Measurement data can be transmitted via BT/USB to PCs or mobile devices and displayed in real time through dedicated client software.
Each thermopile power detector is individually calibrated, with calibration data stored in its integrated EEPROM. A test report is provided upon delivery.
We also offer calibration services. For optimal accuracy, we recommend annual recalibration.

Features of BIM-761X Series Thermopile Power Detector

This optical power meter provides analog output and external triggering
This thermopile power detector supports Bluetooth and USB communication
The Brolight thermopile power detector is compatible with PC software and mobile apps
Active cooling ensures stable and reliable data

Power measurement for the following types of lasers

Fiber lasers
CO₂ lasers
Laser diodes
Excimer lasers

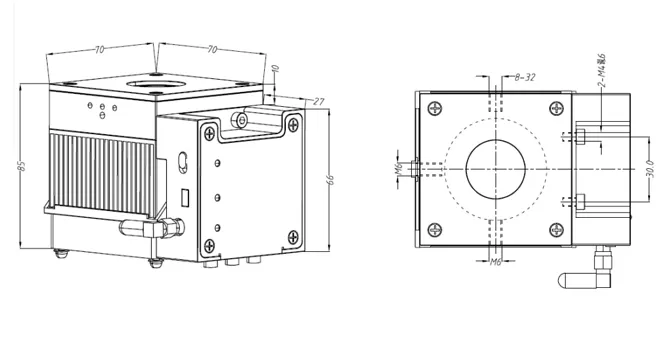

Dimensions (mm）

Dimensions of BIM-761X Series Thermopile Power Detector

Specifications of BIM-761X Series Thermopile Power Detector

Model	BIM-7614-0250F
Detector Material	Thermopile
Wavelength Range	0.19-20μm
Maximum Average Power Density	10kW/cm²（1064nm/10W/CW）
Maximum Average Power Density	3.2kW/cm²（10640nm/10W/CW）
Maximum Energy Density	1J/cm²（1064nm, 7ns, 10Hz）
Maximum Energy Density	9J/cm²（(266nm, 7ns, 10Hz）
Maximum Average Power (typical value)	200W（continuous）; 250W（<1minute）
Power Range	0.2-250W
Calibration Uncertainty	±5%
Response Time	5s
Analog Output Port	Output 0-5v voltage
Communication Mode	Bluetooth、USB
External Trigger Function	Support
Effective Detection Diameter	25mm
Cooling	Air cooling

What's included

#	Part Description	Model	Qty.
1	Wireless Thermopile Laser Power Meter	BIM-7614-0250F	1
2	12V/1A Power Adapter	BC-105150	1
3	Mini USB Data Cable	BC-105147	1
4	1.5m SMA-to-BNC connection Cable	BC-105165	1
5	Packing box	BC-135016	1
6	Calibration report (Including QRCode for download of software & manual)		1

Insights into Experimental Teaching Kits for Physics & Photonics:

Other Experimental Teaching Kits for Physics & Photonics You May Also Like:

CCD-based spectrometer



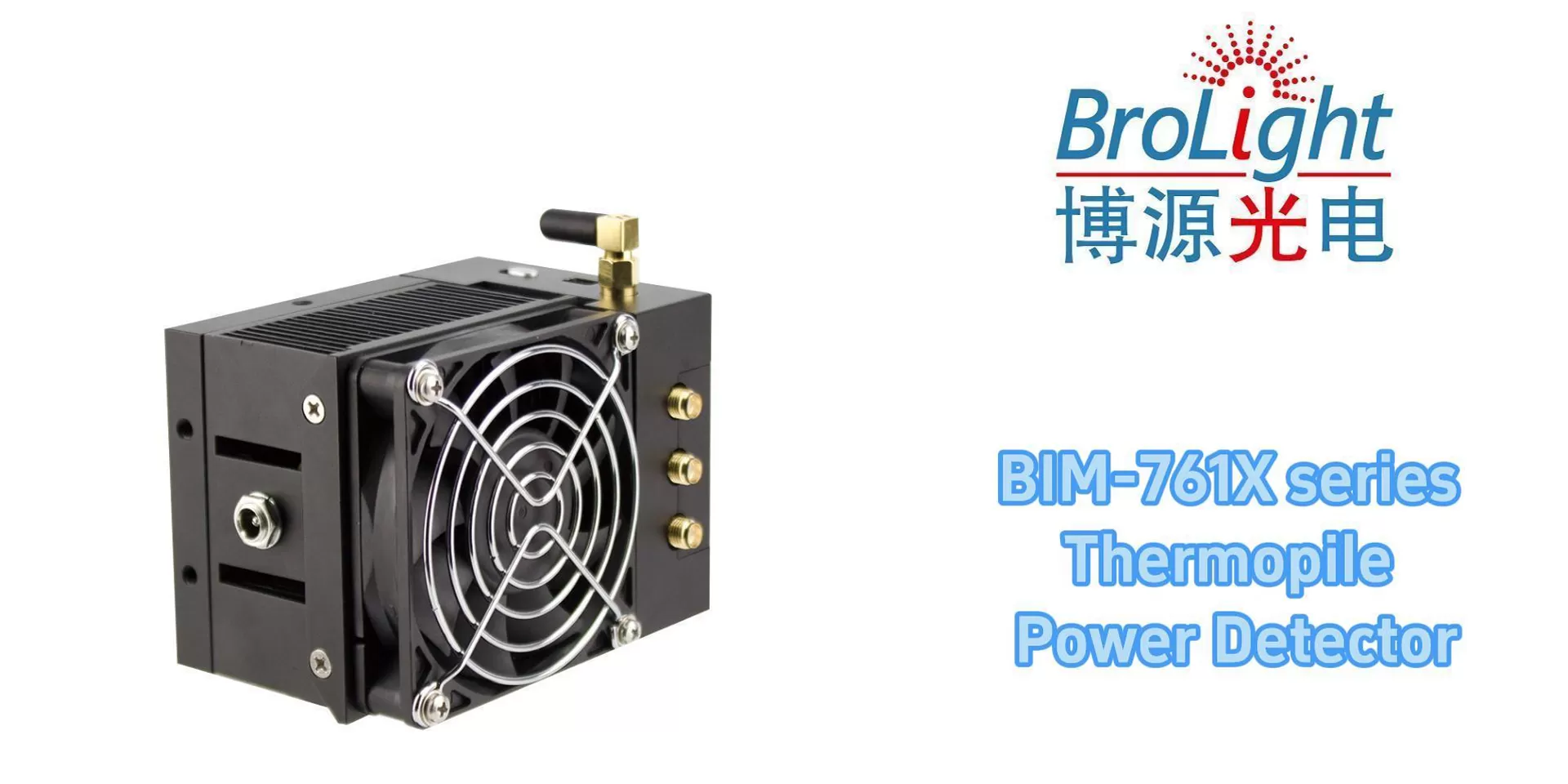

Video of BIM-761X Series Thermopile Power Detector
