Name: Optical Power Meter
Brand: Hangzhou Brolight Technology Co., Ltd.
Availability: InStock

BIM-7001

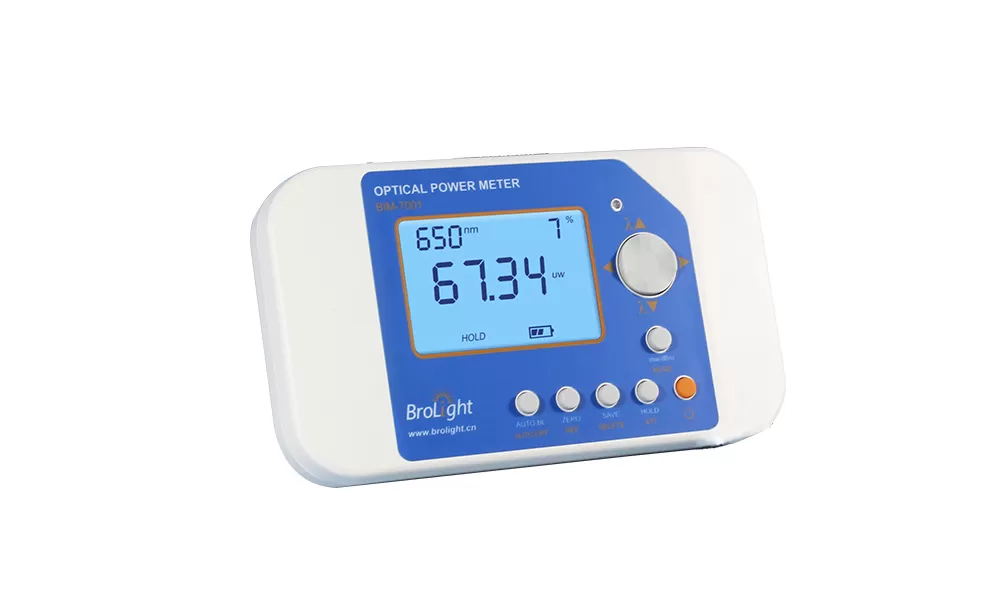

Optical Power Meter

The BIM-7001 is a high-performance optical power meter that serves as an ideal choice for both laboratory and field testing. Compatible with digital BIM-71 series photodetectors or BIM-72 series thermopile detectors, this optical power meter provides real-time power readings.

Equipped with a large-size LCD display, the BIM-7001 optical power meter features an intelligent backlight and high-speed, high-definition digital display for clear visibility.

Additionally, the optical power meter includes a USB port for seamless data acquisition and display via BPM software, enabling users to monitor and analyze real-time optical power variations with ease.

Features of BIM-7001 Optical Power Meter

Portable & Benchtop Design: This optical power meter is suitable for both handheld and desktop use
Dual Power Modes: The optical power meter supports built-in battery or external power supply
Multi-Detector Compatibility: The optical power meter works with both digital and analog detectors
Professional Monitoring: Over-range alarm
Multiple Units: The Brolight optical power meter measures in W, dBm, and dB
Smart Automation: Auto-ranging, auto-backlight, and auto-power-off
USB Connectivity: The optical power meter Enables digital data acquisition via BPM software

Applications of BIM-7001 Optical Power Meter

Field-portable power measurement
Embedded power measurement in production lines

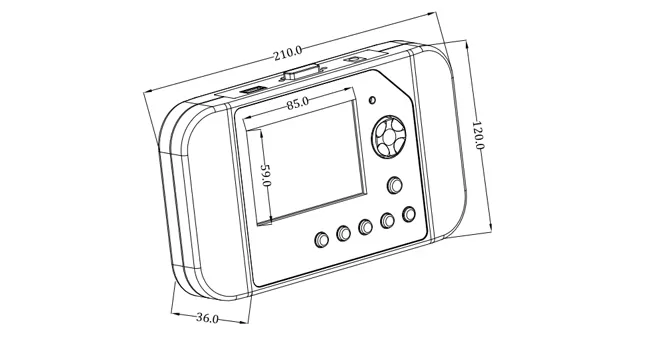

Dimensions (mm）

Dimensions of BIM-7001 Optical Power Meter

Specifications of BIM-7001 Optical Power Meter

Model	BIM-7001
Compatible Detector	BIM-71 series photoelectric detectors; BIM-72 series thermopile detectors
Communication Interface	USB2.0
LCD Type	80 × 54mm LCD segment display screen
Applicable Battery Types	1.2v batteries 2pcs
External Power Source	Input: 100 - 240 VAC; output: 6VDC, 1A
Auto power-off	10 min
Intelligent Back-light	Support
Weight	350 g
Dimensions	210mm × 120mm × 36mm

What's included

#	Part Description	Model	Qty.
1	Optical Power Meter	BIM-7001	1
2	Power supply adapter, 6VDC, 1A	BC-105151	1
3	USB2.0 cable (Type A to A, Length 1.5m)	BC-105103	1
4	Packing box	BC-135015	1

Insights into Experimental Teaching Kits for Physics & Photonics:

Other Experimental Teaching Kits for Physics & Photonics You May Also Like:

CCD-based spectrometer

Optional Optical Power Meter Kits

1. Meter + Photodiode Detector Connection:

Communication		Meter	USB	Bluetooth
Description
Optional	Wavelength Range: 380~1100nm Power Range: 10mW	BIM-7001+BIM-7101	BIM-7101U/BIM-7401U	BIM-7301
	Wavelength Range:200~1100nm Power Range: 1mW	BIM-7001+BIM-7102	BIM-7102U//BIM-7402U	BIM-7302
	Wavelength Range: 800~1650nm Power Range: 10mW	BIM-7001+BIM-7103	BIM-7103U//BIM-7403U	BIM-7303

BIM-7101 Silicon Photodiode Detector, 380–1100nm, ~10mW

BIM-7102 UV Silicon Photodiode Detector, 200–1100nm, ~1mW

BIM-7103 InGaAs Photodiode Detector, 800–1650nm, ~10mW

2. Meter + Thermopile Detector Connection:

Communication		Meter	Bluetooth
Description		Height-adjustable Holder (Optional)
Optional	Wavelength Range: 0.19~20um Max Power: 250W	BIM-7001+BIM-7214	BIM-7614
Optional	Wavelength Range: 0.19~20um Max Power: 40W	BIM-7001+BIM-7211	\

BIM-7214-0250F Thermopile Detector

BIM-7211 Thermopile Detector

BIM-1001 Height-adjustable Holder

Optional Optical Power Meter Kits

1. Meter + Photodiode Detector Connection：

Communication		Meter	USB	Bluetooth
Description
Optional	Wavelength Range：380~1100nm Power Range：10mW	BIM-7001+BIM-7101	BIM-7101U/BIM-7401U	BIM-7301
	Wavelength Range：200~1100nm Power Range：1mW	BIM-7001+BIM-7102	BIM-7102U//BIM-7402U	BIM-7302
	Wavelength Range：800~1650nm Power Range：10mW	BIM-7001+BIM-7103	BIM-7103U//BIM-7403U	BIM-7303

BIM-7101 Silicon Photodiode Detector, 380–1100nm, ~10mW

BIM-7102 UV Silicon Photodiode Detector, 200–1100nm, ~1mW

BIM-7103 InGaAs Photodiode Detector, 800–1650nm, ~10mW

2. Meter + Thermopile Detector Connection：

Communication		Meter	Bluetooth
Description		Height-adjustable Holder (Optional)
Optional	Wavelength Range: 0.19~20um Max Power：250W	BIM-7001+BIM-7214	BIM-7614
Optional	Wavelength Range: 0.19~20um Max Power：40W	BIM-7001+BIM-7211	\

BIM-7214-0250F Thermopile Detector

BIM-7211 Thermopile Detector

BIM-1001 Height-adjustable Holder

Brolight provides high-precision photonics instruments, ideal for both research and educational applications. Contact us today to request detailed product information and discover how our solutions can support your projects and create new opportunities.
