Emulated Radiation Experiment

SEM-5704
Emulated Radiation Experiment

The SEM-5704 Simulated Radiation Experiment Apparatus enables students to observe results analogous to nuclear radiation phenomena without handling radioactive materials, making it an ideal teaching tool for nuclear education. It simulates key processes such as count rate recording, background radiation detection, the inverse-square law, half-life decay, exponential attenuation, and the statistical nature of radiation. The device includes a large transparent viewing window, automatic source-detector distance detection, and supports both manual and automated data collection via an SD card.

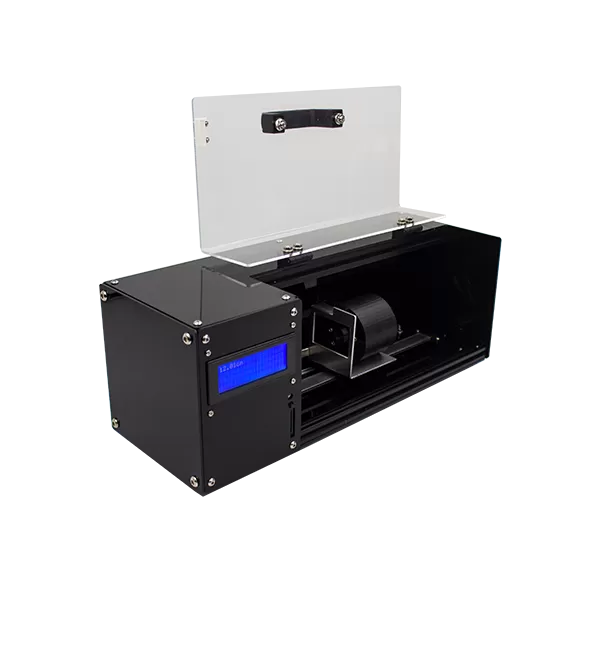

emulated radiation experiment equipment

Features of SEM-5704 Emulated Radiation Experiment

  • Simulates all key nuclear radiation phenomena without real radioactive sources.

  • Eliminates radiation risks, safety liabilities, and administrative procedures.

  • Suitable for multi-level education and professional training in nuclear technology.

  • Audio effects simulate a Geiger-Müller counter.

  • Adjustable background radiation levels based on local conditions.

  • Customizable radiation source characteristics.

  • Large transparent door for easy observation.

  • Supports remote operation via Android devices.

  • Multiple data acquisition: manual, SD card, or wireless.

Applications of SEM-5704 Emulated Radiation Experiment

  • Understanding the background radiation.

  • Investigating the inverse-square law of radiation intensity vs. distance.

  • Studying half-life decay characteristics of isotopes.

  • Examining attenuation of radiation intensity in matter.

  • Understanding the stochastic nature of nuclear radiation.

  • Identifying types of nuclear radiation: α, β, and γ rays.

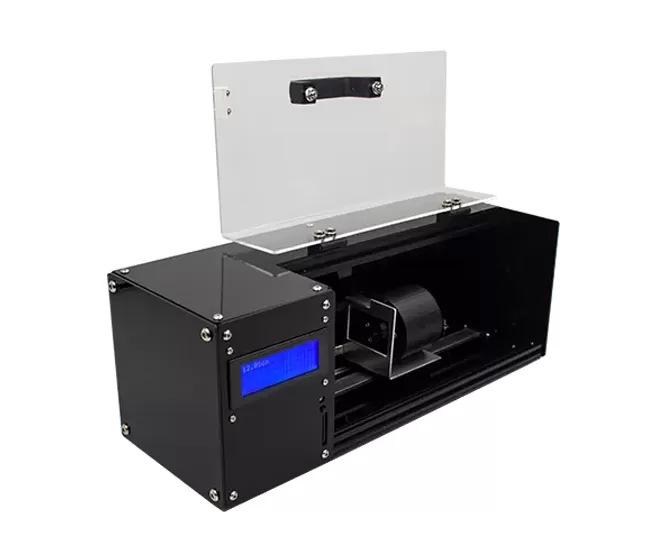

Applications of SEM-5704 Emulated Radiation Experiment

Experiments and Sample Data

1. Background Radiation

Simulated detection of background radiation. For example, in Hong Kong, the background radiation level is 1–2 counts per second.

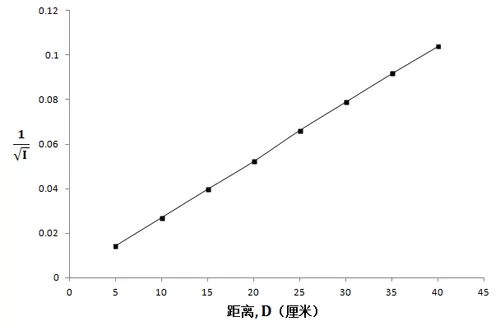

2. Inverse-Square Law

Radiation intensity decreases linearly with the square of the distance from the source. Measured data demonstrates the inverse-square relationship in appropriate graphical analysis.


Inverse Square Law

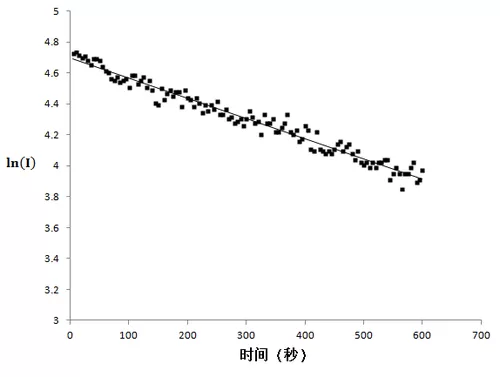

3. Isotope Half-Life

Radiation intensity decays exponentially over time. Data analysis yields a simulated half-life of 182.4 s.

Isotope Half Life

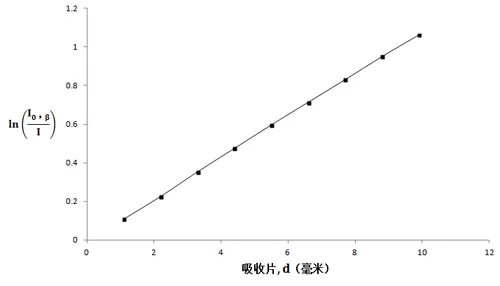

4. Exponential Attenuation in Matter

Radiation intensity decreases exponentially with distance traveled in material. Data analysis gives a linear attenuation coefficient of μ = 8.4 cm⁻¹.

Exponential Attenuation in Matter

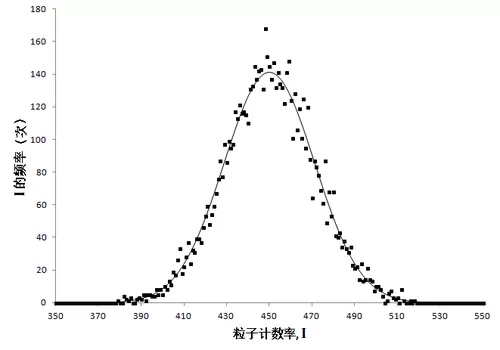

5. Stochastic Nature of Radiation

Measured data shows statistical distribution of random fluctuations in count rate.

Stochastic Nature of Radiation

Specifications of SEM-5704 Emulated Radiation Experiment

No.

Parts

Key Features

Qty.

1

Simulated Radiation Main Unit

Audio effects simulating Geiger-Müller counter; transparent lift-up cover for observation

1

2

Simulated Radiation Sources

Includes short-half-life γ-source, long-half-life β-source, long-half-life γ-source, and three uncalibrated sources

1

3

Absorber Set

Paper, aluminum (0.08 cm, 0.15 cm, 0.25 cm, 0.5 cm), lead (0.5 cm)

1

4

Power Cord

Length: 1.5 m

1

5

SD Card

Includes user manual and Excel data templates

1


Configuration List

No.

Parts

Qty.

1

Simulated Radiation Main Unit

1

2

Simulated Radiation Source Set

1

3

Absorber Set

1

4

Tweezers

1

5

Power Cord

1

6

SD Card (with manual and templates)

1
