Compact Size, Infinite Possibilities
BIM-6511 series mini spectrometer adopts an innovative flat-field concave grating design, with a coin-size (50mm×28mm×30mm) and lightweight body of 100g. Perfect for industrial integration or on-the-go applications, it empowers rapid spectral analysis in environmental monitoring, lighting industries, and scientific research with unmatched portability and high performance!
Introduction
BIM-6511 series Mini Spectromter adopts a new flat field concave grating scheme for optical design, making the overall size of the machine only the size of a coin, which is very convenient for industrial integration and pocket portable applications. The standard BIM-6511 can be directly used and integrated, or BIM-6511-NC model without main control circuit board can be provided. Customers can independently develop the main control circuit based on the detector. BIM-6511 series Mini Spectromter is an excellent choice for portable water quality testing equipment in environmental protection testing industry and hand-held light color measuring equipment in lighting industry.
Features
Matchbox size, easy to carry and integrate.
Supports USB power supply and communication, easy to use.
Support multiple triggering methods and powerful software functions.
Provide SDK and support secondary development.
Provide two versions with or without main control circuit.
Applications
Probe water quality measuring instrument integration.
Handheld lighting instrument integration.
Handheld material testing instrument integration.
Handheld component detection instrument integration.
Portable spectral measurement.
Typical Spectrum

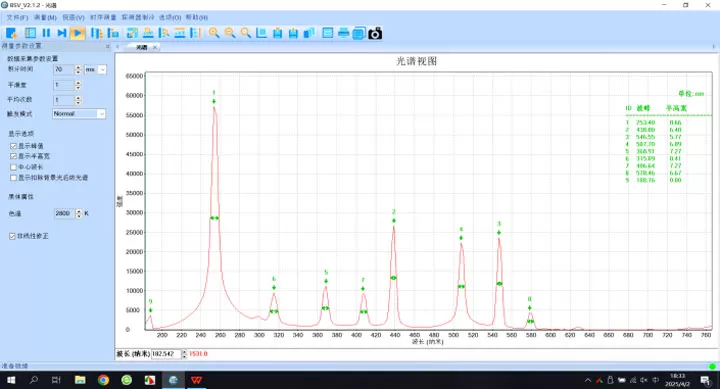

Mercury (Hg) Lamp Spectrum
532nm Laser Spectrum
Outline Dimensions
BIM-6511
BIM-6511-NC
Specifications
Model | BIM-6511 | BIM-6511-NC |
Wavelength Range | 200nm-750nm | 200nm-750nm |
Optical Resolution | ~5.6nm | ~5.6nm |
Slit | 50um | 50um |
Fiber Connector | SMA905 | SMA905 |
Detector | Hamamatsu S8378-256, CMOS | Hamamatsu S8378-256, CMOS |
Pixel | 256 pixel | 256 pixel |
Signal to noise ratio | 400:1 | Depends on the customer's main control board |
A/D Resolution | 16 bit |
Integrating Time | 5ms -60s |
Dynamic Range | 1000:1 |
Trigger Mode | Mode, Software, Hardware, Synchronization Trigger |
Power Consumption | 250mA,5VDC |
Operating Temperature | 5℃-35℃ (25℃ recommended) |
Communication Interface | USB2.0 (12Mbps) RS232 (115200bps) |
Operation System | Win XP, Win7, Win8, Win10 |
Power Supply | USB |
Dimension | 50 mm×28 mm×30 mm | 43 mm×25 mm×13.8 mm |
Weight | 100 g | 30 g |
BIM-6511 series comes with a USB cable, calibration reports, and professional software for effortless setup. Whether you're a system integrator, researcher, or industry developer, we offer flexible solutions and comprehensive support!
Contact Us for product details and technical proposals—step into a new world of efficient spectral measurement!
